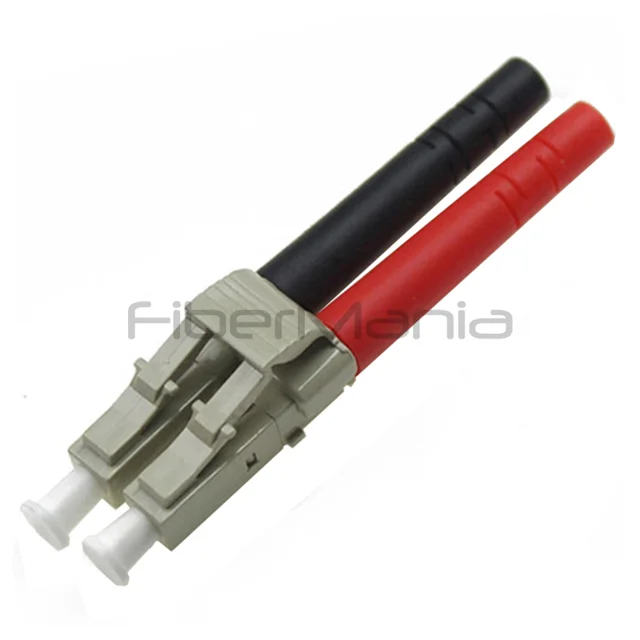

LC Duplex Connector, Multimode, Beige Housing, 3.0mm Boot
Categories:
Product Highlights:
-
LC duplex multimode connector with beige housing and 3.0 mm boot, designed for high-density networks requiring reliable multimode UPC termination.
-
Offers stable 0.20 dB insertion loss, >30 dB return loss, and durable construction compliant with GR-326-CORE standards.
-
Ideal for LAN, data centers, telecom systems, broadband networks, and multimode test applications.
-
Customizable with OEM/ODM options for boot sizes, housing colors, branding, and packaging.
Table of Contents
Description
The LC Duplex Multimode Connector with beige housing and 3.0 mm boot is designed for high-density multimode fiber networks requiring stable optical performance and easy field termination. Built with FiberMania’s epoxy-and-polish technology, this connector ensures precise fiber alignment and dependable operation in LAN, data centers, and multimedia communication systems. The compact LC duplex format doubles fiber density in patch panels, while the pre-domed ceramic ferrule simplifies polishing and improves assembly efficiency.
This connector supports multimode fiber systems such as OM1, OM2, OM3, and OM4, providing low insertion loss and dependable return-loss performance typical for UPC multimode terminations. The corrosion-resistant metal and polymer construction ensures long service life under a wide range of operating temperatures. Fully compliant with Telecordia GR-326-CORE and RoHS, it delivers reliable performance for both enterprise networks and carrier-grade environments.
Specification
| Connector Type | LC Duplex |
|---|---|
| Fiber Mode | Multimode |
| Ferrule Diameter | 2.5 mm (standard FC) |
| Housing Material | Plastic |
| Boot Diameter | 3.0 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Beige |
Features
-
Low insertion loss for consistent multimode optical transmission
-
Corrosion-resistant body with excellent long-term durability
-
Ultra-low back reflection suitable for multimode UPC applications (>30 dB)
-
Compatible with 3.0 mm and 2.0 mm jacket cables and 900 µm buffers
-
Pre-domed ceramic ferrule for easier assembly and fast polishing
-
LC duplex design enables high-density patching
-
Meets Telecordia GR-326-CORE standards
-
RoHS compliant materials
Application
-
Enterprise LAN & WAN networks
-
Data centers and structured cabling systems
-
Telecommunication backbone and interconnects
-
Broadband and CATV systems
-
FTTx projects (multimode sections)
-
Optical fiber test instruments using MM fiber
-
High-density patch panels and enclosures
FAQ
Q: Why is the connector housing beige?
A: Beige is the standard color code for multimode LC/UPC connectors, helping technicians easily identify fiber type.
Q: Can the connector be used for OM3/OM4?
A: Yes. Although aqua housings are standard for OM3/OM4, performance is identical; color coding is optional and can be customized.
Q: Is the return loss lower than single-mode connectors?
A: Yes. Multimode UPC connectors typically achieve >30 dB return loss due to larger core size and modal dispersion—this is normal and industry-standard.
Q: Is 2.0 mm the only boot size available?
A: No. 3.0 mm and 900 µm boots are also available upon request.
