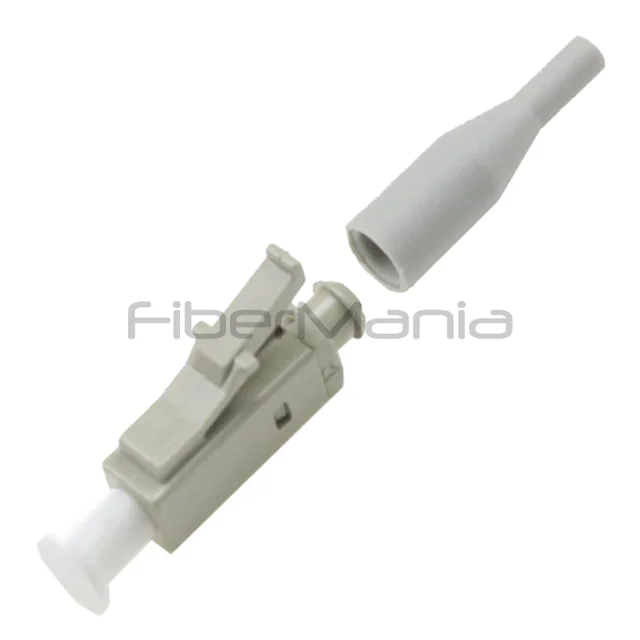

LC Simplex Connector, Multimode, Beige Housing, 0.9mm Boot
Categories:
Product Highlights:
-
LC simplex multimode connector with beige housing and 0.9 mm boot for low-loss, reliable connections.
-
Features pre-domed ceramic ferrule and corrosion-resistant housing for long-term durability.
-
Ideal for LAN, WAN, FTTx, broadband, and optical testing applications.
-
FiberMania provides OEM/ODM services including custom boot sizes, colors, branding, and pre-terminated patch cords.
Table of Contents
Description
The LC Multimode Simplex Connector from FiberMania, featuring a beige housing and 0.9 mm boot, is engineered for efficient and reliable multimode fiber connections. Designed for 50/125 µm or OM1 multimode fibers, it employs an epoxy-based assembly with a pre-domed ceramic ferrule, ensuring precise alignment, low insertion loss, and ultra-low back reflection. Its LC simplex design is perfect for compact installations in patch panels, wall outlets, and optical network equipment, supporting LAN, WAN, broadband, and FTTx applications.
The 0.9 mm boot provides mechanical protection and strain relief for tight-buffered or small-diameter jacketed fibers, making installation and repeated matings easy and secure. Fully compliant with Telecordia GR-326-CORE and RoHS standards, this connector guarantees high performance and long-term reliability in multimode fiber networks.
Specification
| Connector Type | LC Simplex |
|---|---|
| Fiber Mode | Multimode |
| Ferrule Diameter | 2.5 mm (standard FC) |
| Housing Material | Plastic |
| Boot Diameter | 0.9 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Beige |
Features
-
Low insertion loss (~0.20 dB) for stable multimode performance
-
Ultra-low back reflection with UPC return loss >50 dB
-
Corrosion-resistant housing for long-term durability
-
Compatible with 0.9 mm tight-buffered and 2.0–3.0 mm jacketed multimode fibers
-
One-piece pre-domed ceramic ferrule for easy assembly
-
LC simplex design for patch panels and wall outlets
-
Meets Telecordia GR-326-CORE specifications
-
RoHS compliant
-
Durable over 1,000 mating cycles
Application
-
LAN and WAN fiber networks
-
Telecommunication and broadband systems
-
CATV and multimedia distribution
-
FTTx access and drop networks
-
Optical fiber testing and measurement
FAQ
Q: What fiber types are supported?
A: Multimode 50/125 µm or OM1 fibers.
Q: Is this connector suitable for patch panel installation?
A: Yes, the LC simplex form factor fits standard panels and wall outlets.
Q: What is the typical insertion loss?
A: Approximately 0.20 dB.
Q: How durable is the connector?
A: It can withstand over 1,000 mating cycles.
Q: Is it RoHS compliant?
A: Yes, fully compliant.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
