SC Connector, Single Mode, Blue Housing, 3.0mm Red Boot
Categories:
Product Highlights:
-
SC single mode UPC connector with blue housing and 3.0 mm red boot, designed for stable and low-loss optical performance in telecom and broadband networks.
-
Offers 0.20 dB insertion loss, >55 dB return loss, and durable mechanical construction for over 1,000 mating cycles.
-
FiberMania provides complete OEM/ODM support including private labeling, customized boot colors, and full patch-cord manufacturing services.
Table of Contents
Description

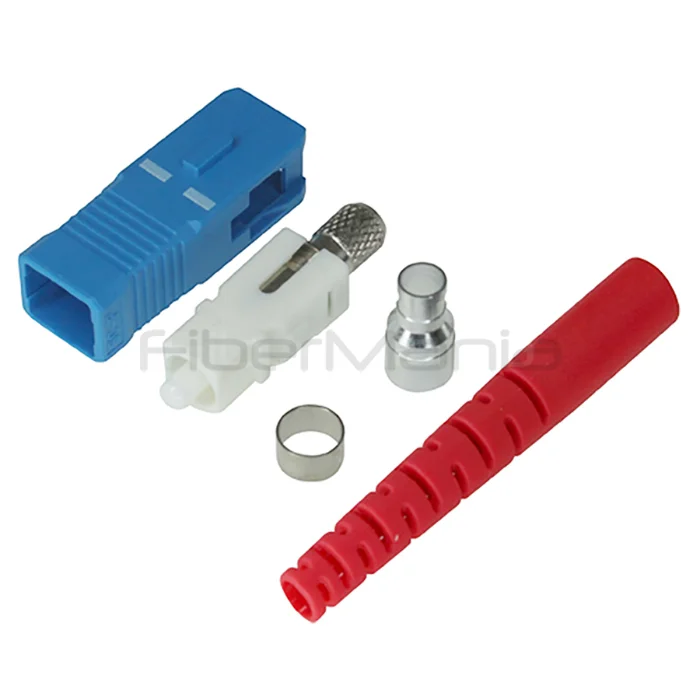

This SC Single Mode Connector with blue housing and a 3.0 mm red boot is engineered for stable, low-loss performance across a wide range of single mode optical networks. Designed using FiberMania’s epoxy-and-polish process, it ensures precise fiber alignment, excellent ferrule geometry, and dependable long-term optical stability. The connector incorporates a pre-domed ceramic ferrule to simplify polishing and assembly, making it suitable for both field termination and mass production environments.
The rugged SC design provides secure push-pull latching and consistent optical performance, while the corrosion-resistant body enhances durability under various environmental conditions. Its compliance with GR-326-CORE ensures carrier-grade performance, making it ideal for telecom, broadband, and FTTx applications. This connector is compatible with 9/125 µm single mode fiber and maintains steady insertion loss and return-loss values over a wide operating temperature range.
Specification
| Connector Type | SC Simplex |
|---|---|
| Fiber Mode | Single Mode |
| Ferrule Diameter | 1.25 mm |
| Housing Material | Plastic |
| Boot Diameter | 3.0 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Blue |
Features
-
Low insertion loss for stable single mode performance
-
Corrosion-resistant body for long-term reliability
-
Ultra-low back reflection with UPC return loss >55 dB
-
Suitable for 3.0 mm jacketed cables
-
One-piece pre-domed ceramic ferrule for easy assembly and polishing
-
Meets Telecordia GR-326-CORE performance standards
-
RoHS-compliant materials
Application
-
LAN and WAN fiber transmission
-
Telecommunications and long-haul links
-
Broadband and CATV networks
-
FTTx access and distribution networks
-
Data center interconnects
-
Optical fiber test and measurement equipment
FAQ
Q: Is this connector suitable for UPC polishing?
A: Yes, the blue housing indicates UPC polishing, and the pre-domed ferrule is optimized for achieving high UPC return-loss values.
Q: Can this connector be used with G.657A bend-insensitive fiber?
A: Yes, it is fully compatible with G.657A and G.652D single mode fibers.
Q: Does the red boot indicate any specific fiber type?
A: No. Boot color can be customized and is often used for cable management or identification purposes.
Q: Can FiberMania provide pre-terminated SC patch cords using this connector?
A: Absolutely. We offer complete OEM patch cable manufacturing with custom lengths, fibers, boots, and labeling.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
