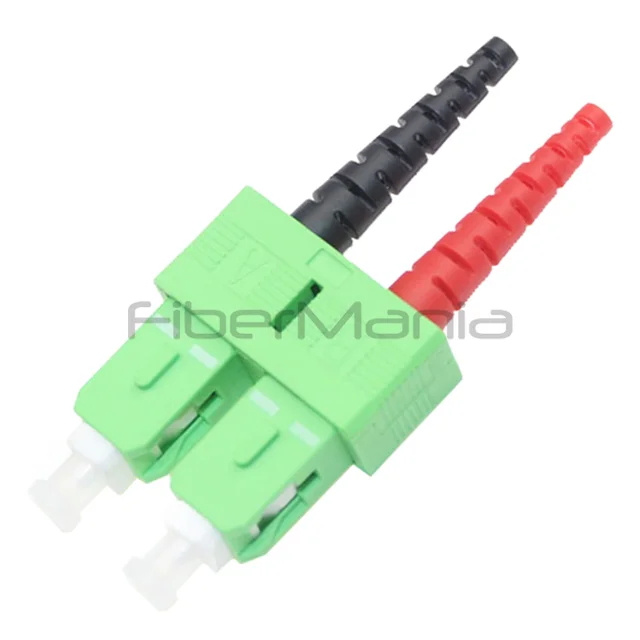

SC/APC Duplex Connector, Single Mode, Green Housing, 3.0mm Boot
Categories:
Product Highlights:
-
SC/APC duplex single mode fiber connector with green housing and 3.0mm boot
-
Low insertion loss and ultra-low back reflection ensure reliable optical performance
-
Durable epoxy body with pre-domed ceramic ferrule for easy assembly
-
FiberMania provides flexible OEM/ODM services for customized connectors and branding
Table of Contents
Description
The FiberMania SC/APC Duplex Connector is engineered for high-precision single mode fiber applications. Its epoxy body provides robust protection against environmental factors, while the pre-domed ceramic ferrule ensures precise fiber alignment and consistent low insertion loss.
This connector supports 3.0mm jacketed fibers and delivers ultra-low back reflection, making it ideal for LAN, WAN, broadband, CATV, FTTx networks, and optical fiber test equipment. Designed for durability, it can withstand over 1,000 mating cycles, providing reliable long-term connectivity for both lab and field use.
Specification
| Connector Type | SC/APC Duplex |
|---|---|
| Fiber Mode | Single Mode |
| Ferrule Diameter | 1.25 mm |
| Housing Material | Plastic |
| Boot Diameter | 3.0 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 55 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Green |
Features
-
SC/APC duplex single mode fiber connection
-
Low insertion loss (0.20dB)
-
Ultra-low back reflection (>65dB APC)
-
Corrosion-resistant epoxy body
-
Pre-domed ceramic ferrule for easy assembly
-
Supports 3.0mm fiber jackets
-
Meets Telecordia GR-326-CORE specifications
-
RoHS compliant
Applications
-
LAN and WAN networks
-
Telecommunication systems
-
Broadband and CATV networks
-
FTTx deployments
-
Optical fiber testing equipment
FAQ
Q1: What fiber type is supported?
Single mode 9/125 fibers compatible with 3.0mm jackets.
Q2: What is the insertion loss?
Typically 0.20dB for SC/APC duplex connections.
Q3: How durable is the connector?
Over 1,000 mating cycles without performance degradation.
Q4: Can this connector be used in the field?
Yes, epoxy body and pre-domed ferrule allow for fast and reliable field installation.
Q5: Does FiberMania provide custom connectors?
Yes, OEM/ODM customization is available for housing color, boot size, ferrule type, and packaging.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
