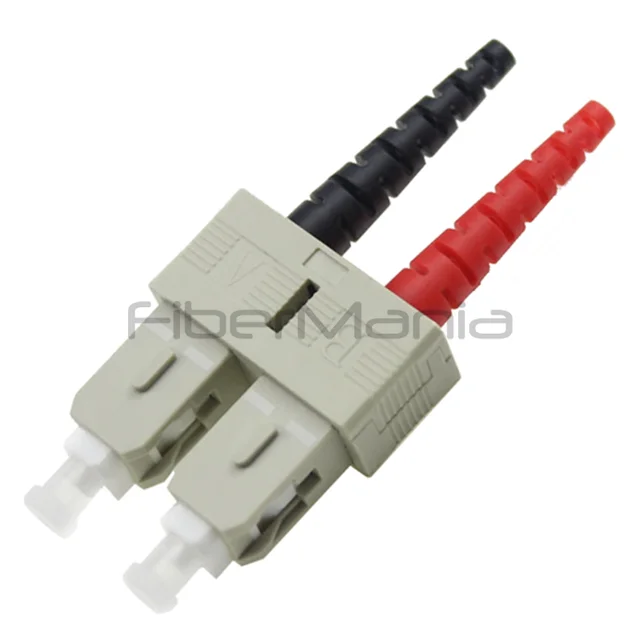

SC Duplex Connector, Multimode, Beige Housing, 3.0mm Boot

Name: SC Duplex Connector MM Beige Housing 3.0mm | FiberMania
SKU: CSCDMMBG3

P/N: CSCDMMBG3

Categories:

SC Connectors

Product Highlights:

SC duplex multimode connector designed for stable, low-loss optical performance in LAN, telecom, and data center environments.
Features a 3.0mm boot, durable housing, and pre-domed ceramic ferrule for reliable and easy termination work.
Suitable for multimode fiber systems requiring consistent UPC return loss performance.
FiberMania provides OEM/ODM production, private-label services, and customized design options for global partners.

Description

The SC Duplex Multimode Connector with a 3.0mm boot is designed for reliable performance in high-density fiber optic networks. Its multimode compatibility makes it suitable for short-distance, high-bandwidth applications commonly used in enterprise networks, data centers, and telecommunications environments. The connector adopts an epoxy-based termination structure, allowing installers to achieve a strong and precise fiber alignment for stable optical transmission.

The connector housing is made of durable materials to resist mechanical stress and maintain long-term performance even in demanding environments. The pre-domed ceramic ferrule design helps simplify the polishing process and enhances the overall optical integrity. With low insertion loss, stable return loss, and excellent durability across repeated mating cycles, this SC duplex connector offers dependable connectivity for professionals seeking consistent network performance.

This solution is well-suited for new installations, system upgrades, maintenance projects, and fiber termination training applications. It ensures compatibility with standard SC interface equipment and adheres to industry requirements for multimode fiber cable systems.

Specification

Connector Type	SC Duplex
Fiber Mode	Multimode
Ferrule Diameter	2.5 mm
Housing Material	Plastic
Boot Diameter	3.0 mm
Ferrule Material	Ceramic
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 35 dB
Durability	≥ 1000 mating cycles
Alignment Sleeve	Ceramic
Operating Temperature	-40°C to +85°C
Compliance	RoHS compliant
Color	Beige

Features

Low insertion loss for stable optical transmission
UPC end-face with reliable return loss performance
Durable housing and corrosion-resistant construction
Pre-domed ceramic ferrule for easier polishing and assembly
Designed for 3.0mm jacketed cables
Stable mechanical structure supporting over 1,000 mating cycles
Suitable for multimode fiber termination work

Application

LAN and enterprise network systems
Telecommunications and broadband projects
CATV networks
FTTx deployment and distribution points
Optical fiber test instruments
Data center patching and interconnection

FAQ

Q: What type of fiber is compatible with this SC duplex connector?
A: It is designed for multimode fibers such as OM1, OM2, OM3, and OM4 using 50/125 or 62.5/125 specifications.

Q: Can I customize the connector housing or boot color?
A: Yes, FiberMania supports full OEM customization including colors, logos, packaging, and structural variations.

Q: What polishing method does this connector require?
A: This connector uses UPC polishing and is compatible with common polishing fixtures and epoxy termination processes.

Q: Is this connector suitable for high-density patching environments?
A: Yes, the duplex design and stable mechanical structure make it ideal for high-density network racks and distribution frames.

Q: What is the durability of the connector?
A: It supports over 1,000 mating cycles while maintaining stable optical performance.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
