SC Multimode OM4 Duplex Connector
Categories:
Product Highlights:
-
Low insertion loss and ultra-low back reflection for high-performance multimode connections.
-
Pre-domed ceramic ferrule and corrosion-resistant body for easy assembly and long-term durability.
-
Compatible with 3.0mm OM4 fiber for LAN, WAN, FTTx, and test equipment applications.
Table of Contents
Description

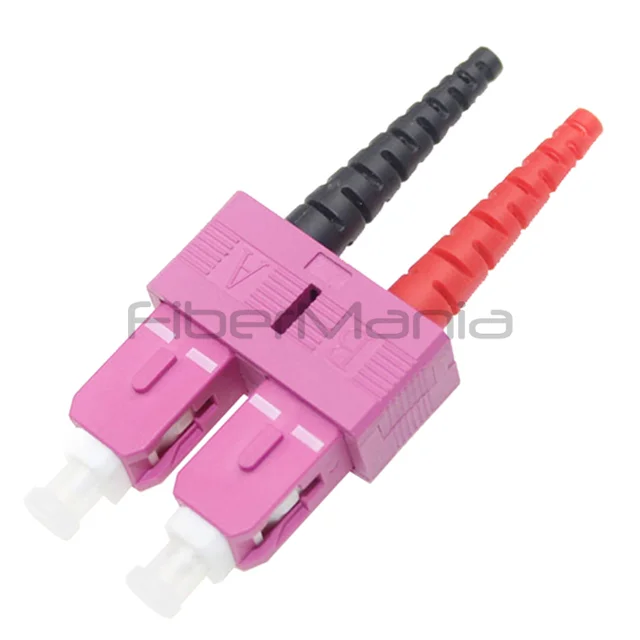

The SC Duplex Connector with Magenta Housing is designed for OM4 multimode fiber applications and features a 3.0mm boot for easy handling. Engineered for high-performance LAN, WAN, and FTTx deployments, this epoxy-type connector ensures low insertion loss and ultra-low back reflection. Its pre-domed ceramic ferrule and corrosion-resistant body provide reliable, repeatable terminations for multimode networks.
Specification
| Connector Type | SC/UPC Duplex |
|---|---|
| Fiber Type | Multimode 50/125 µm OM4 |
| Boot Size | 3.0 mm |
| Insertion Loss | 0.20 dB |
| Return Loss | UPC >50 dB |
| Durability | >1, 000 matings |
| Operational Temperature | -40 to +80 °C |
Features
-
Low insertion loss for high-performance signal transmission.
-
Ultra-low back reflection for stable network operation.
-
Corrosion-resistant connector body for durability.
-
Pre-domed ceramic ferrule one-piece design for easy assembly.
-
Compatible with 3.0mm jacketed fibers.
-
Meets Telcordia GR-326-CORE specifications.
-
RoHS-compliant materials.
Applications
-
LAN and WAN network connections.
-
Telecommunication and broadband infrastructure.
-
CATV installations and FTTx projects.
-
Optical fiber test equipment connections.
-
High-density patch panels and backbone cabling.
Frequently Asked Questions
Q1: What fiber type does this connector support?
A1: Multimode 50/125 µm OM4 fiber.
Q2: What is the typical insertion loss?
A2: 0.20 dB.
Q3: How durable is the connector?
A3: It can withstand more than 1,000 mating cycles.
Q4: What is the operational temperature range?
A4: -40°C to +80°C.
Q5: Is this connector RoHS compliant?
A5: Yes, it meets RoHS environmental compliance standards.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
