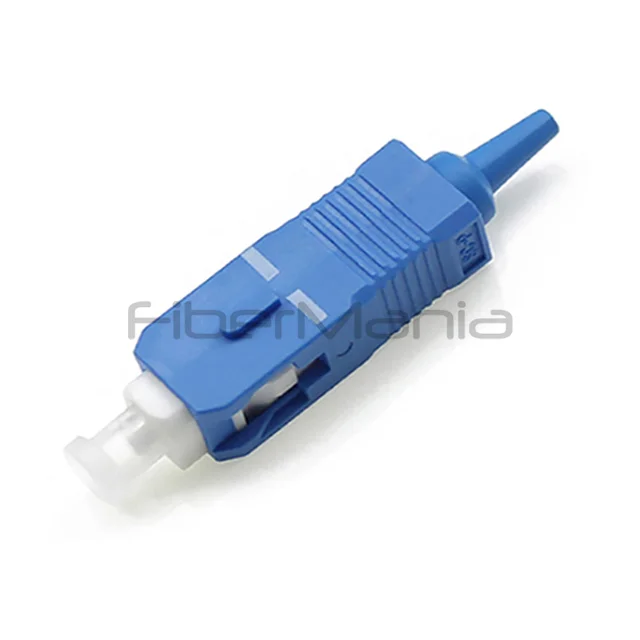

SC Connector, Single Mode, Blue Housing, 0.9mm Boot

Name: SC Connector SM Blue Housing 0.9mm Boot | FiberMania
SKU: CSCSMBL9

P/N: CSCSMBL9

Categories:

SC Connectors

Product Highlights:

SC simplex single mode connector with blue housing and 0.9 mm boot for low-loss, reliable optical connections.
Features pre-domed ceramic ferrule and corrosion-resistant housing for long-term durability.
Ideal for LAN, WAN, FTTx, broadband, and optical testing applications.
FiberMania provides OEM/ODM services including custom boot sizes, colors, branding, and pre-terminated patch cords.

Description

The SC Single Mode Connector with blue housing and 0.9 mm boot from FiberMania is engineered for reliable single mode fiber connections in LAN, WAN, broadband, and FTTx networks. Constructed with an epoxy-based assembly and pre-domed ceramic ferrule, this connector provides precise fiber alignment, low insertion loss, and ultra-low back reflection, ensuring high-quality optical performance. Compatible with 900 µm tight-buffered single mode fibers, it is ideal for patch panels, wall outlets, and optical network equipment requiring stable and efficient signal transmission.

The SC simplex design allows for simple plug-and-play installation in high-density environments. Its 0.9 mm boot provides strain relief and protects the fiber during handling and repeated matings. Fully compliant with Telecordia GR-326-CORE and RoHS standards, this connector guarantees reliable long-term operation and professional-grade optical performance in single mode networks.

Specification

Connector Type	SC Simplex
Fiber Mode	Single Mode
Ferrule Diameter	1.25 mm
Housing Material	Plastic
Boot Diameter	0.9 mm
Ferrule Material	Ceramic
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB
Durability	≥ 1000 mating cycles
Alignment Sleeve	Ceramic
Operating Temperature	-40°C to +85°C
Compliance	RoHS compliant
Color	Blue

Features

Low insertion loss (~0.20 dB) for stable single mode operation
Ultra-low back reflection with UPC return loss >55 dB
Corrosion-resistant housing for long-term durability
Compatible with 900 µm tight-buffered single mode fibers
One-piece pre-domed ceramic ferrule for easy assembly
SC simplex design suitable for patch panels and wall plates
Meets Telecordia GR-326-CORE specifications
RoHS compliant
Durable over 1,000 mating cycles

Application

LAN and WAN fiber optic networks
Telecommunication and broadband systems
CATV and multimedia distribution
FTTx access and drop networks
Optical fiber testing and measurement

FAQ

Q: What fiber type is this connector compatible with?
A: Single mode 9/125 µm fiber.

Q: Is it suitable for high-density patch panels?
A: Yes, the SC simplex form factor is ideal for compact panels and wall outlets.

Q: What is the typical insertion loss?
A: Approximately 0.20 dB.

Q: How durable is the connector?
A: It can withstand over 1,000 mating cycles.

Q: Is the connector RoHS compliant?
A: Yes, all materials meet RoHS standards.
