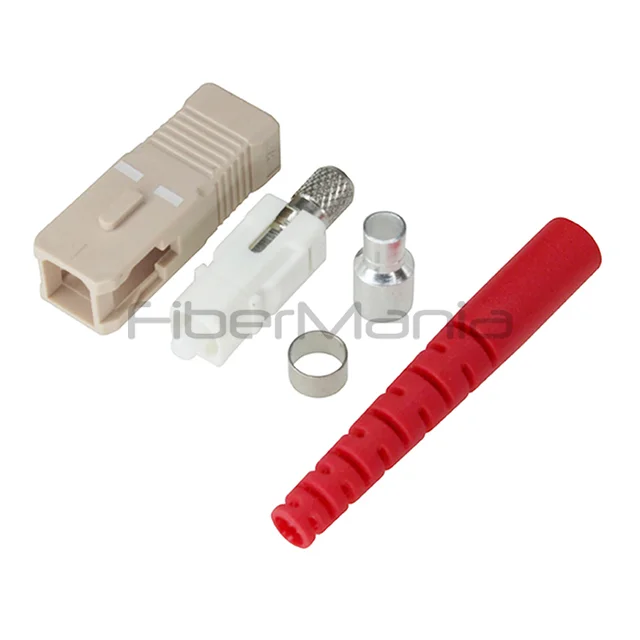

SC Simplex Connector, Multimode, Beige Housing, 2.0mm Red Boot
Categories:
Product Highlights:
-
SC simplex multimode connector with beige housing and 2.0 mm red boot for low-loss, reliable optical performance.
-
Features pre-domed ceramic ferrule and corrosion-resistant housing for long-term durability.
-
Ideal for LAN, WAN, broadband, FTTx, and optical testing applications.
-
FiberMania provides OEM/ODM services including custom boot sizes, colors, branding, and pre-terminated assemblies.
Table of Contents
Description
The SC Simplex Multimode Connector with beige housing and 2.0 mm red boot from FiberMania is designed for reliable optical connections in LAN, WAN, broadband, and FTTx networks. Utilizing an epoxy-based assembly with a pre-domed ceramic ferrule, it provides precise fiber alignment, low insertion loss, and ultra-low back reflection. This connector is compatible with 2.0 mm jacketed multimode fibers, making it suitable for patch panels, wall outlets, and optical network devices requiring stable signal transmission.
Its SC simplex form factor is ideal for high-density installations and provides a compact solution for organized fiber routing. The corrosion-resistant housing and 2.0 mm boot ensure mechanical protection and strain relief during installation and repeated matings. Fully compliant with Telecordia GR-326-CORE and RoHS standards, it guarantees long-term reliability and professional-grade optical performance.
Specification
| Connector Type | SC Simplex |
|---|---|
| Fiber Mode | Multimode |
| Ferrule Diameter | 2.5 mm |
| Housing Material | Plastic |
| Boot Diameter | 2.0 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Beige |
Features
-
Low insertion loss (~0.20 dB) for stable multimode operation
-
Ultra-low back reflection with UPC return loss >30 dB
-
Corrosion-resistant housing for durability
-
Compatible with 2.0 mm jacketed multimode fibers
-
One-piece pre-domed ceramic ferrule for easy assembly
-
SC simplex design suitable for patch panels and wall plates
-
Meets Telecordia GR-326-CORE specifications
-
RoHS compliant
-
Durable over 1,000 mating cycles
Application
-
LAN and WAN fiber optic networks
-
Telecommunication and broadband systems
-
CATV and multimedia distribution
-
FTTx access and drop networks
-
Optical fiber testing and measurement
FAQ
Q: What fiber types are compatible?
A: Multimode fibers (OM1, OM2, OM3, OM4).
Q: Is it suitable for patch panel installations?
A: Yes, the SC simplex form factor is ideal for patch panels and wall outlets.
Q: What is the typical insertion loss?
A: Approximately 0.20 dB.
Q: How durable is the connector?
A: It can withstand over 1,000 mating cycles.
Q: Is the connector RoHS compliant?
A: Yes, all materials meet RoHS standards.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
