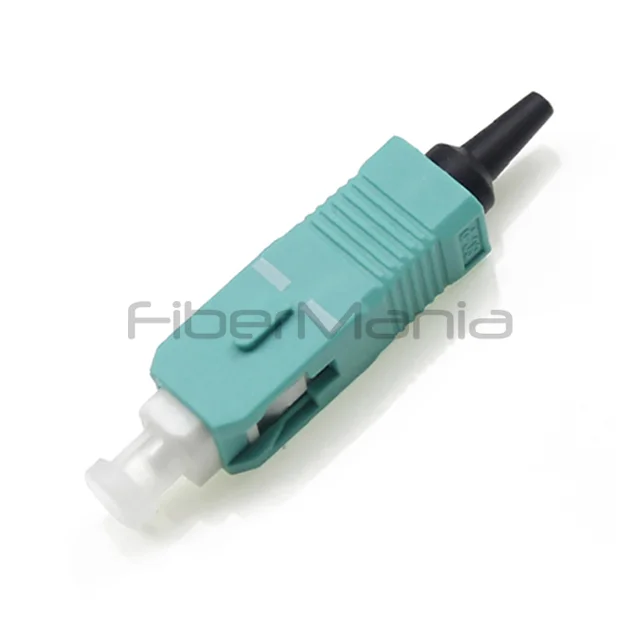

SC Connector, OM3, Aqua Housing, 0.9mm Boot
Categories:
Product Highlights:
-
SC simplex OM3 connector with aqua housing and 0.9 mm boot for low-loss, reliable multimode performance.
-
Features pre-domed ceramic ferrule and corrosion-resistant housing for long-term durability.
-
Ideal for LAN, WAN, FTTx, broadband, and optical testing applications.
-
FiberMania provides OEM/ODM services including custom boot sizes, colors, branding, and pre-terminated patch cords.
Table of Contents
Description
The SC OM3 Connector with aqua housing and 0.9 mm boot from FiberMania is designed for reliable multimode fiber connections in high-speed LAN, WAN, broadband, and FTTx networks. Featuring an epoxy-based assembly with pre-domed ceramic ferrule, it delivers precise fiber alignment, low insertion loss, and ultra-low back reflection. Optimized for OM3 50/125 µm fibers, this SC simplex connector is ideal for patch panels, wall outlets, and optical network equipment requiring professional-grade optical performance.
The compact SC simplex form factor allows easy installation in high-density environments. Its 0.9 mm boot provides strain relief and protects the fiber during handling and repeated mating cycles. Fully compliant with Telecordia GR-326-CORE and RoHS standards, the connector ensures reliable long-term operation and consistent signal performance in multimode networks.
Specification
| Connector Type | SC Simplex |
|---|---|
| Fiber Mode | Multimode OM3 |
| Ferrule Diameter | 2.5 mm |
| Housing Material | Plastic |
| Boot Diameter | 0.9 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Aqua |
Features
-
Low insertion loss (~0.20 dB) for stable multimode operation
-
Ultra-low back reflection with UPC return loss >50 dB
-
Corrosion-resistant housing for long-term durability
-
Compatible with 0.9 mm tight-buffered fibers
-
One-piece pre-domed ceramic ferrule for easy assembly
-
SC simplex form factor suitable for patch panels and wall plates
-
Meets Telecordia GR-326-CORE specifications
-
RoHS compliant
-
Durable over 1,000 mating cycles
Application
-
LAN and WAN fiber optic networks
-
Telecommunication and broadband systems
-
CATV and multimedia distribution networks
-
FTTx access and drop networks
-
Optical fiber testing and measurement
FAQ
Q: What fiber type is this connector designed for?
A: OM3 multimode 50/125 µm fiber.
Q: Is it suitable for high-density patch panels?
A: Yes, the SC simplex form factor is ideal for compact panels.
Q: What is the typical insertion loss?
A: Approximately 0.20 dB.
Q: How durable is the connector?
A: It can withstand over 1,000 mating cycles.
Q: Is the connector RoHS compliant?
A: Yes, all materials meet RoHS standards.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
