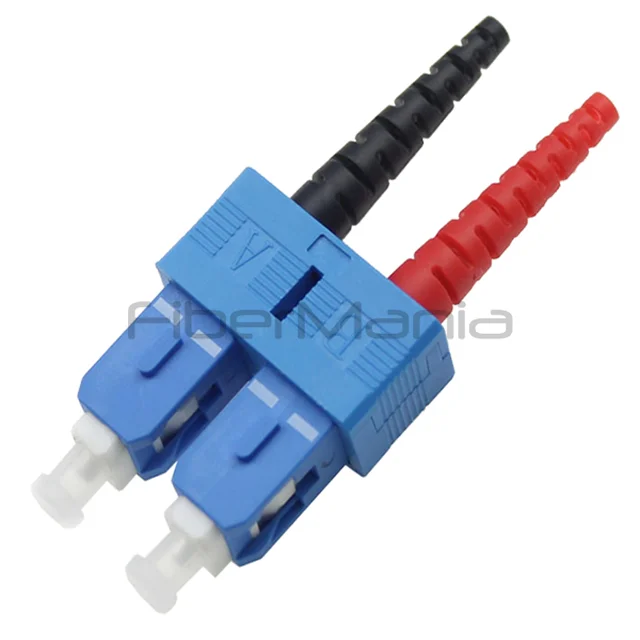

SC Duplex Connector, Single Mode, Blue Housing, 3.0mm Boot

Name: SC Duplex Connector SM Blue Housing 3.0mm | FiberMania
SKU: CSCDSMBL3

P/N: CSCDSMBL3

Categories:

SC Connectors

Product Highlights:

SC duplex single-mode connector with blue housing and 3.0 mm boot for reliable low-loss and high-density fiber connections.
Features a pre-domed ceramic ferrule and corrosion-resistant body for consistent performance and easy assembly.
Ideal for LAN, WAN, telecom, broadband, FTTx, and data center applications.
FiberMania offers full OEM/ODM services including custom boot sizes, housing colors, branding, and pre-terminated patch cord solutions.

Description

The SC Duplex Single Mode Connector with blue housing and a 3.0 mm boot is designed for high-density fiber optic networks requiring low-loss, reliable single-mode connections. Using FiberMania’s epoxy-and-polish technology, it delivers precise fiber alignment, low insertion loss, and ultra-low back reflection for demanding applications such as FTTx, broadband, and telecom networks. The connector’s duplex design allows simultaneous routing of two fibers in a compact form factor, ideal for high-density patch panels and network cabinets.

Constructed with a corrosion-resistant body and a pre-domed ceramic ferrule, this SC duplex connector ensures easy assembly, consistent polishing quality, and long-term stability. Fully compliant with Telecordia GR-326-CORE and RoHS standards, it supports single-mode 9/125 µm fibers and maintains performance over a wide operating temperature range. The 3.0 mm boot provides reliable strain relief, ensuring the connector withstands repeated matings and mechanical stress in professional network deployments.

Specification

Connector Type	SC Duplex
Fiber Mode	Single Mode
Ferrule Diameter	1.25 mm
Housing Material	Plastic
Boot Diameter	3.0 mm
Ferrule Material	Ceramic
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB
Durability	≥ 1000 mating cycles
Alignment Sleeve	Ceramic
Operating Temperature	-40°C to +85°C
Compliance	RoHS compliant
Color	Blue

Features

Low insertion loss with stable single-mode performance
Corrosion-resistant body for long-term durability
Ultra-low back reflection with UPC return loss >55 dB
Compatible with 3.0 mm jacketed cables
One-piece pre-domed ceramic ferrule for easy assembly and polishing
Duplex design for high-density fiber connections
Meets Telecordia GR-326-CORE specifications
RoHS-compliant materials
Durable performance exceeding 1,000 mating cycles

Application

LAN and WAN fiber networks
Telecommunication backbone and interconnects
Broadband and CATV systems
FTTx access and distribution networks
Data center patching and cross-connect systems
Optical fiber testing and measurement equipment

FAQ

Q: What is the advantage of duplex SC connectors?
A: Duplex connectors allow two fibers to be connected simultaneously, reducing panel space usage and simplifying cable management.

Q: Can the boot size be customized?
A: Yes, FiberMania offers 3.0 mm, 2.0 mm, and 900 µm boot options to suit various cable types.

Q: Is this connector suitable for high-density patch panels?
A: Yes, the compact duplex design is ideal for high-density environments.

Q: How durable is this connector?
A: It maintains stable performance over 1,000 matings with minimal insertion loss variation.

Q: Can it be used for FTTx applications?
A: Absolutely, its single-mode UPC performance and compact duplex design make it ideal for FTTx networks.
