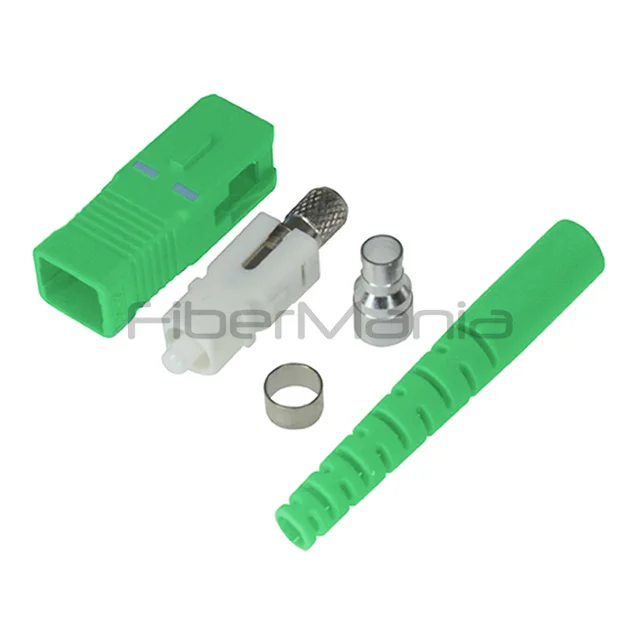

SC/APC Connector, Single Mode, Green Housing, 2.0mm Boot

Name: SC/APC Connector SM Green Housing 2.0mm Boot | FiberMania
SKU: CSCASMGN2

P/N: CSCASMGN2

Categories:

SC Connectors

Product Highlights:

SC/APC single-mode connector with green housing and 2.0 mm boot for ultra-low back reflection and stable optical performance.
Features a pre-domed ceramic ferrule and corrosion-resistant body for consistent performance and easy assembly.
Ideal for FTTx, telecom, broadband, and high-precision testing networks.
FiberMania provides full OEM/ODM support

Description

The SC/APC Single Mode Connector with green housing and a 2.0 mm boot is designed for high-performance optical termination in single-mode fiber networks. Featuring an epoxy-based assembly and a pre-domed ceramic ferrule, it ensures precise fiber alignment, low insertion loss, and ultra-low back reflection. The APC (Angled Physical Contact) polishing design provides exceptional return loss performance, making it ideal for FTTx, broadband, and long-distance telecom networks.

This connector’s corrosion-resistant body and compact SC form factor allow for reliable, long-term use in both high-density patch panels and field installations. The 2.0 mm boot provides strain relief to protect the fiber and maintain optical performance under repeated matings and mechanical stress. Fully compliant with Telecordia GR-326-CORE and RoHS standards, this connector delivers industry-standard optical reliability and durability.

Specification

Connector Type	SC/APC Simplex
Fiber Mode	Single Mode
Ferrule Diameter	1.25 mm
Housing Material	Plastic
Boot Diameter	2.0 mm
Ferrule Material	Ceramic
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 55 dB
Durability	≥ 1000 mating cycles
Alignment Sleeve	Ceramic
Operating Temperature	-40°C to +85°C
Compliance	RoHS compliant
Color	Green

Features

Low insertion loss (~0.20 dB) for stable single-mode performance
Ultra-low back reflection with APC return loss >65 dB
Corrosion-resistant connector body for long-term reliability
Designed for 2.0 mm jacketed fibers
One-piece pre-domed ceramic ferrule for easy assembly and polishing
SC simplex form factor for standard optical connectivity
Meets Telecordia GR-326-CORE specifications
RoHS compliant
Durable performance with >1,000 mating cycles

Application

LAN and WAN optical networks
Telecommunication systems and long-haul links
Broadband and CATV networks
FTTx access and distribution networks
Data center interconnects
Optical fiber test and measurement equipment

FAQ

Q: What is the advantage of APC polishing?
A: APC connectors provide ultra-low back reflection, ideal for FTTx, long-distance, and high-precision optical networks.

Q: Can the boot size be customized?
A: Yes, FiberMania offers 0.9 mm, 2.0 mm, and 3.0 mm boot options.

Q: How durable is this connector?
A: It exceeds 1,000 mating cycles with minimal variation in insertion loss.

Q: Is this connector RoHS compliant?
A: Yes, all materials meet RoHS environmental standards.

Q: Can it be used for FTTx applications?
A: Absolutely. Its APC performance and durable design make it ideal for FTTx networks.
