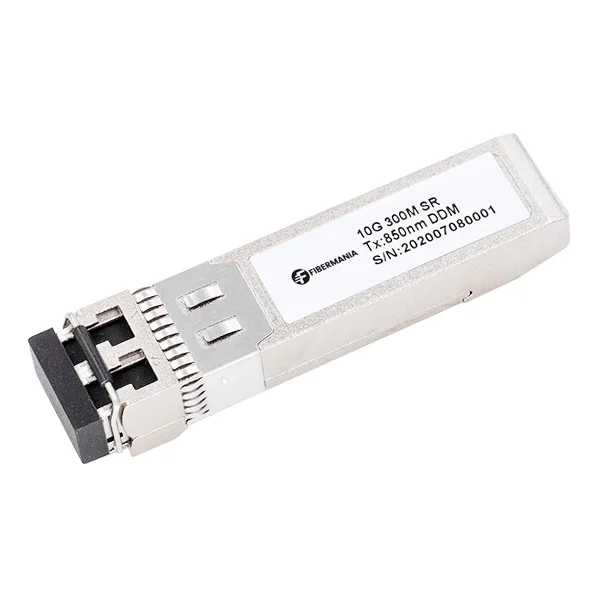

10Gbps SFP+ Transceiver, SR, 300M, Multimode 850nm

Name: 10Gbps SFP+ Transceiver SR 300M MM 850nm | FiberMania
SKU: SFP+-SR-300M

P/N: SFP+-SR-300M

Categories:

10G SFP+

Product Highlights:

10Gbps SFP+ SR transceiver with 850nm FP transmitter and linear PIN receiver, supporting short-range multimode fiber links up to 300 meters.
Duplex LC interface, hot-pluggable, with digital diagnostics for real-time monitoring.
Ideal for 10GBASE-LRM Ethernet, legacy FDDI fiber, and data center interconnects.
FiberMania provides OEM/ODM customization and private-label manufacturing for telecom, enterprise, and data center applications.

Description

The 10Gbps SFP+ SR Transceiver is a high-performance multimode module designed for short-range 10G Ethernet applications. Operating at 850nm, it supports transmission distances up to 300 meters over multimode fiber and is ideal for high-density data center and enterprise network environments. This module integrates a Fabry-Perot (FP) laser transmitter and a linear PIN photodetector in a compact SFP+ form factor, enabling efficient, low-power operation while maintaining excellent EMI performance.

Engineered for IEEE802.3aq 10GBASE-LRM compliant links, the transceiver works in conjunction with Electronic Dispersion Compensation (EDC) on the host board to correct modal dispersion on multimode fiber, including legacy FDDI fiber installations. Its small form factor and hot-pluggable design allow seamless integration into high-density switches, servers, and network equipment. The module is lead-free, RoHS compliant, and rigorously tested to meet industry safety and performance standards.

The transceiver’s digital diagnostics monitoring interface provides real-time monitoring of temperature, voltage, bias current, and optical power, ensuring network reliability and operational efficiency. With power dissipation under 1W, it offers energy-efficient performance for large-scale deployments.

Specification

Data Rate	10Gbps
Wavelength	850nm
Fiber Type	Multimode (MMF)
Transmission Distance	300M
Connector Type	LC Duplex
Compliance	SFP+ MSA, Class I laser, RoHS
Power Supply	3.3V
Temperature Range	0°C to +70°C
Features	Hot-pluggable, DDM
Application	10G Ethernet, Fibre Channel
Customization	OEM/ODM
Compatibility	SFP+/XFP MSA-compliant devices

Features

Supports 9.95 to 10.3Gbps bit rates
Transmission distance up to 220m on OM1 fiber, 300m on OM3/OM4 fiber
Hot-pluggable SFP+ footprint for easy installation
1310nm FP transmitter with linear PIN photodetector
Duplex LC connector interface
Digital diagnostics monitoring (DDM) for real-time status
Metal enclosure for low EMI and robust protection
RoHS compliant and lead-free design
Single 3.3V power supply with power dissipation <1W
Operating case temperature: 0ºC to +70ºC

Application

10GBASE-LRM 10G Ethernet links
Legacy FDDI multimode fiber connections
Data center short-range interconnects
Enterprise campus and high-density network environments

FAQ

Q: What is the maximum transmission distance for this SFP+ SR transceiver?
A: Up to 220 meters on OM1 fiber, 300 meters on OM3/OM4 multimode fiber.

Q: Can it work with legacy FDDI multimode fiber?
A: Yes, it supports 10GBASE-LRM links over legacy installed multimode fiber.

Q: Is this module hot-pluggable?
A: Yes, it can be inserted or removed without powering down equipment.

Q: Does it support real-time diagnostics?
A: Yes, it includes a digital diagnostics monitoring (DDM) interface.

Q: Can FiberMania provide OEM/ODM and private-label options?
A: Yes, we offer full customization, branding, and batch manufacturing services.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
