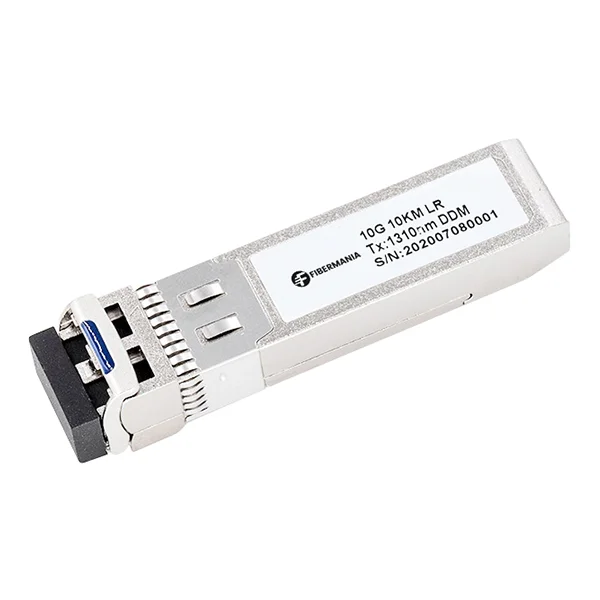

10Gbps SFP+ Transceiver, LR, 10KM, Single Mode 1310nm

Name: 10Gbps SFP+ Transceiver LR 10KM SM 1310nm | FiberMania
SKU: SFP+-10G-LR-10KM

P/N: SFP+-10G-LR-10KM

Categories:

10G SFP+

Product Highlights:

10Gbps SFP+ LR transceiver with 1310nm DFB transmitter and PIN photodetector, supporting single-mode fiber up to 10km/20km.
Hot-pluggable duplex LC interface with low power consumption and all-metal housing for EMI protection.
Ideal for 10GBASE-LR/LW Ethernet, data center interconnects, and long-reach optical networks.
FiberMania provides OEM/ODM customization

Description

The 10Gbps SFP+ LR Transceiver is designed for high-performance, long-reach optical links over single-mode fiber, supporting distances up to 10 kilometers. Operating at 1310nm, this module is ideal for 10GBASE-LR and 10GBASE-LW Ethernet applications, providing reliable data transmission in data centers, telecom networks, and enterprise environments. Its low-power, hot-pluggable design allows high port density and flexible deployment in modern network equipment.

The module features a 1310nm DFB transmitter and a PIN photodetector for efficient optical performance. The electrical interface complies with SFF-8431 and SFI specifications, ensuring proper differential termination, low EMI, and high signal integrity. Internally AC-coupled data lines minimize noise and improve signal quality, supporting stable operation over standard FR4 or improved PCB materials. Advanced firmware options allow customer system encryption information to be stored directly in the transceiver, enhancing security and network management.

Constructed with an all-metal housing, the SFP+ LR module ensures superior EMI performance, durability, and long-term reliability. Its combination of cost efficiency, low power consumption, and adherence to industry standards makes it an optimal solution for high-density 10Gbps network deployments.

Specification

Data Rate	10Gbps
Wavelength	1310nm
Fiber Type	Single Mode (SMF)
Transmission Distance	10KM
Connector Type	LC Duplex
Compliance	SFP+ MSA, Class I laser, RoHS
Power Supply	3.3V
Temperature Range	0°C to +70°C
Features	Hot-pluggable, DDM
Application	10G Ethernet, Fibre Channel
Customization	OEM/ODM
Compatibility	SFP+/XFP MSA-compliant devices

Features

Optical interface compliant with IEEE 802.3ae 10GBASE-LR
Electrical interface compliant with SFF-8431 and SFI specifications
Hot-pluggable SFP+ footprint
1310nm DFB transmitter and PIN photodetector
Supports SMF connections up to 10km/20km
Operating case temperature: 0°C to +70°C
Low power consumption for energy-efficient operation
All-metal housing for superior EMI performance
Advanced firmware supports system encryption storage
Cost-effective solution for high-density network deployment

Application

10GBASE-LR Ethernet at 10.3125Gbps
10GBASE-LW Ethernet at 9.953Gbps
Long-reach optical links over single-mode fiber
Data center interconnects and telecom backbone networks
Enterprise and campus fiber deployments

FAQ

Q: What is the maximum link distance for this SFP+ LR transceiver?
A: Up to 10 kilometers over standard single-mode fiber.

Q: Can it support 10GBASE-LW Ethernet?
A: Yes, it supports 10GBASE-LW at 9.953Gbps.

Q: Is this transceiver hot-pluggable?
A: Yes, it can be inserted or removed without shutting down the network equipment.

Q: Does it provide any security or firmware features?
A: Yes, advanced firmware allows storage of system encryption information.

Q: Can FiberMania provide OEM/ODM or private-label options?
A: Yes, we offer full customization, labeling, and private-label manufacturing services.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
