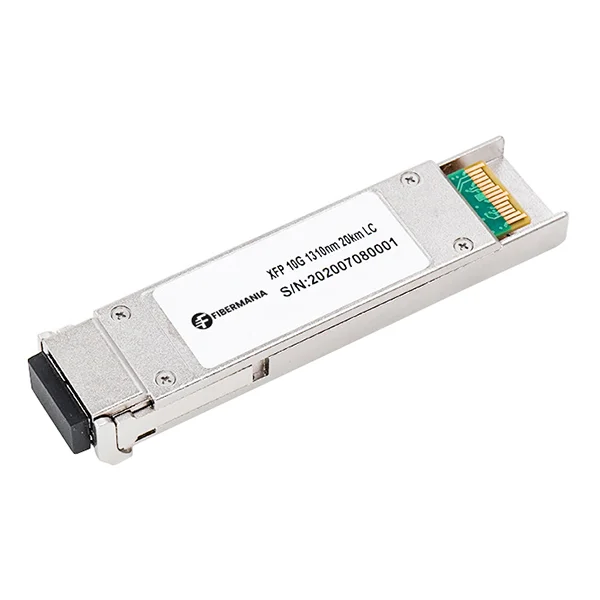

10G XFP Transceiver 10GBASE-LR 20KM SM 1310nm Ethernet/Fibre Channel

Name: 10G XFP Transceiver 10GBASE-LR 20KM SM 1310nm | FiberMania
SKU: XFP-10G-LR-20KM

P/N: XFP-10G-LR-20KM

Categories:

10G SFP+

Product Highlights:

10G XFP transceiver for Ethernet and Fibre Channel applications with 20km reach
1310nm uncooled EML laser with PIN photodiode, supporting single-mode fiber networks
Hot-pluggable XFP MSA package with duplex LC connector, bit rates up to 11.1Gbps
FiberMania provides custom OEM/ODM services including branding, packaging, and configuration for tailored network solutions

Description

FiberMania’s 10G XFP Transceiver is a high-performance optical module designed for long-reach 10 Gigabit Ethernet and Fibre Channel networks. Supporting data rates of 10.3125Gbps (10GBASE-LR) and 9.953Gbps (10GBASE-LW), it enables reliable transmission over single-mode fiber up to 20 kilometers. The transceiver integrates a 1310nm uncooled EML laser transmitter with a PIN photodiode receiver, delivering stable performance and low power consumption while maintaining excellent heat dissipation.

Engineered for operation in a wide temperature range from 0°C to 70°C, this module ensures consistent performance in varied network environments. Its XFP MSA-compliant footprint with duplex LC connectors supports high port density and seamless integration into switches, routers, and optical transport systems. The module is suitable for data centers, telecommunication networks, and high-speed optical links requiring extended reach.

Specification

Data Rate	10Gbps
Wavelength	1310nm
Fiber Type	Single Mode (SMF)
Transmission Distance	20KM
Connector Type	LC Duplex
Compliance	XFP MSA, Class I laser, RoHS
Power Supply	3.3V
Temperature Range	0°C to +70°C
Features	Hot-pluggable, DDM
Application	10G Ethernet, Fibre Channel
Customization	OEM/ODM
Compatibility	SFP+/XFP MSA-compliant devices

Features

Supports bit rates from 9.95Gb/s to 11.1Gb/s
Hot-pluggable XFP footprint for easy installation
Maximum link length of 20km over single-mode fiber
1310nm uncooled EML laser transmitter with PIN photodiode receiver
Duplex LC connector in XFP MSA package
No reference clock required
Power supply: +5V and +3.3V
Low power dissipation <2.5W
RoHS compliant
Built-in digital diagnostic functions
Operating temperature range 0°C to 70°C

Applications

10GBASE-LR/LW 10 Gigabit Ethernet
10G Fibre Channel 1200-SM-LL-L
SDH STM I-64.1 at 9.953Gbps
10GE over G.709 at 11.09Gbps
OC192 over FEC at 10.709Gbps
Other optical links up to 11.1Gbps

Q&A

Q: What is the maximum transmission distance of this XFP transceiver?
A: It supports transmission up to 20 kilometers over single-mode fiber.

Q: Can this module support Fibre Channel applications?
A: Yes, it supports 10G Fibre Channel over single-mode fiber up to 20km.

Q: Is the XFP module hot-pluggable?
A: Yes, it features a hot-pluggable XFP footprint for easy installation and replacement.

Q: Can FiberMania customize this transceiver?
A: Yes, OEM/ODM services allow wavelength, connector type, labeling, and packaging customization.

Q: What diagnostic functions are included?
A: Built-in digital diagnostics monitor optical power, temperature, voltage, and bias current to ensure reliable performance.
