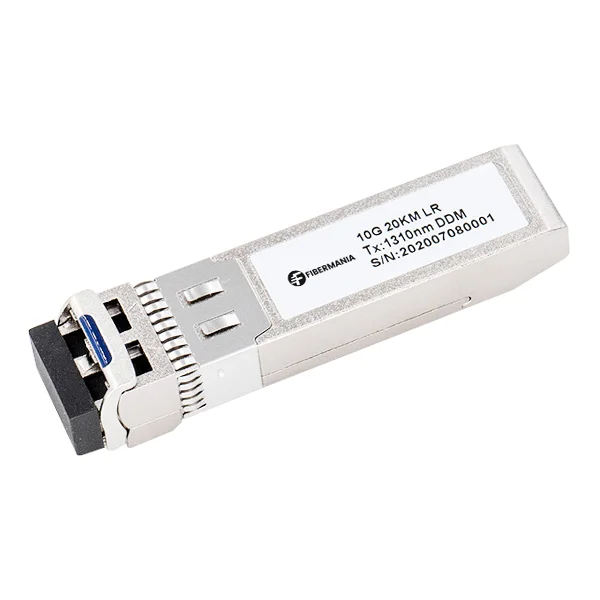

10Gbps SFP+ Transceiver, LR, 20KM, Single Mode 1310nm

Name: 10Gbps SFP+ Transceiver LR 20KM SM 1310nm | FiberMania
SKU: SFP+-10G-LR-20KM

P/N: SFP+-10G-LR-20KM

Categories:

10G SFP+

Product Highlights:

10G SFP+ LR Transceiver for long-distance single-mode fiber up to 20KM.
Compliant with IEEE 802.3ae 10GBASE-LR and SFF-8431 electrical interface standards.
Hot-pluggable design with low power consumption and all-metal housing for EMI protection.
Supports 1310nm DFB transmitter and PIN photodetector for stable, high-speed optical data transmission.

Description

The FiberMania 10Gbps SFP+ LR Transceiver is designed for high-performance optical data transmission over single-mode fiber with a maximum reach of 20KM. This module provides a reliable solution for 10G Ethernet and other optical networks, combining high port density, low EMI, and cost-effectiveness.

The module supports the SFI electrical interface with 100 Ohms differential impedance and internal AC coupling. Differential termination minimizes EMI while ensuring high signal quality. Its hot-pluggable SFP+ form factor allows flexible upgrades and maintenance without disrupting existing network operations.

Specification

Product Type	SFP+ Transceiver Module
Data Rate	10Gbps
Max Distance	20KM
Fiber Type	Single Mode Fiber (SMF)
Wavelength	1310nm
Transmitter	DFB Laser
Receiver	PIN Photodetector
Connector	Duplex LC
Interface	SFP+ / SFI compliant
Operating Temperature	0℃ ~ 70℃
Storage Temperature	-40℃ ~ 85℃
Power Consumption	<1W typical
Hot-pluggable	Yes
EMI Protection	All-metal housing
Standards	IEEE 802.3ae, SFF-8431
Certifications	ISO9001, TUV, CE, FCC, CAS, UL, RoHS
Applications	10G Ethernet LR/LW, Metro & Campus Networks, Data Centers

Features

Compliant with IEEE 802.3ae 10GBASE-LR and SFF-8431 electrical interface
Hot-pluggable SFP+ form factor
1310nm DFB laser transmitter, PIN photodetector
Operating temperature: 0°C ~ 70°C
Maximum link distance: 20KM over single-mode fiber
Low power consumption, <1W typical
All-metal housing for superior EMI protection
Supports advanced firmware to store customer system encryption information
Cost-effective SFP+ solution, enabling higher port densities and bandwidth

Applications

10GBASE-LR Ethernet at 10.3125Gbps
10GBASE-LW Ethernet at 9.953Gbps
Long-reach single-mode fiber connections in data centers and enterprise networks
High-speed optical networks in metro and campus environments
Interconnection between switches, routers, and optical network devices

Frequently Asked Questions (FAQ)

Q1: What is the maximum link distance of this SFP+ module?
Up to 20KM over single-mode fiber.

Q2: Can this module be hot-swapped?
Yes, it is hot-pluggable and supports SFP+ form factor.

Q3: Which fiber types are compatible?
Supports single-mode fiber (SMF) with 1310nm wavelength.

Q4: Is it compatible with third-party switches?
Yes, it works with most brands supporting SFP+ 10GBASE-LR, including Cisco, Huawei, Juniper, and FiberMania.

Q5: What is the operating temperature range?
0°C ~ 70°C, suitable for standard commercial network environments.
