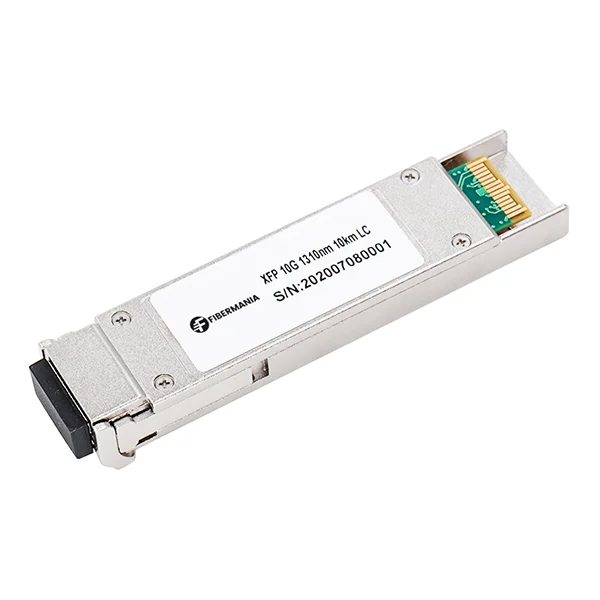

10G XFP Transceiver 10GBASE-LR 10KM SM 1310nm Ethernet/Fibre Channel

Name: 10G XFP Transceiver 10GBASE-LR 10KM SM 1310nm | FiberMania
SKU: XFP-10G-LR-10KM

P/N: XFP-10G-LR-10KM

Categories:

10G SFP+

Product Highlights:

10G XFP transceiver for Ethernet and Fibre Channel applications
1310nm uncooled EML laser with PIN photodiode, supporting 10km single-mode fiber transmission
Hot-pluggable XFP MSA package with duplex LC connector, bit rates up to 11.1Gbps
FiberMania offers custom OEM/ODM services including branding, packaging, and configuration for tailored network solutions

Description

FiberMania’s 10G XFP Transceiver is a high-performance, hot-pluggable module designed for 10 Gigabit Ethernet and Fibre Channel applications. It supports a data rate of 10.3125Gbps (10GBASE-LR) and 9.953Gbps (10GBASE-LW), delivering reliable transmission up to 10 kilometers over single-mode fiber. This module integrates a 1310nm uncooled EML laser transmitter and a PIN photodiode receiver, providing excellent optical performance while maintaining low power consumption and efficient heat dissipation.

The transceiver is engineered to operate within a wide temperature range from 0°C to 70°C, ensuring stable functionality in various network environments. Its XFP MSA-compliant package with duplex LC connectors facilitates high port density and easy integration into existing network infrastructure, making it ideal for data centers, telecommunications networks, and high-speed optical links.

Specification

Data Rate	10Gbps
Wavelength	1310nm
Fiber Type	Single Mode (SMF)
Transmission Distance	10KM
Connector Type	LC Duplex
Compliance	XFP MSA, Class I laser, RoHS
Power Supply	3.3V
Temperature Range	0°C to +70°C
Features	Hot-pluggable, DDM
Application	10G Ethernet, Fibre Channel
Customization	OEM/ODM
Compatibility	SFP+/XFP MSA-compliant devices

Features

Supports bit rates from 9.95Gb/s to 11.1Gb/s
Hot-pluggable XFP footprint for easy installation
Maximum link length of 10km over single-mode fiber
1310nm uncooled EML laser transmitter with PIN photodiode receiver
Duplex LC connector in XFP MSA package
No reference clock required
Power supply: +5V and +3.3V
Low power dissipation <2.5W
RoHS compliant
Built-in digital diagnostic functions
Operating temperature range 0°C to 70°C

Applications

10GBASE-LR/LW 10 Gigabit Ethernet
Fibre Channel 1200-SM-LL-L 10G
SDH STM I-64.1 at 9.953Gbps
10GE over G.709 at 11.09Gbps
OC192 over FEC at 10.709Gbps
Other optical links up to 11.1Gbps

Q&A

Q: What is the maximum transmission distance of this XFP transceiver?
A: It can transmit up to 10 kilometers over single-mode fiber.

Q: Can this module support Fibre Channel applications?
A: Yes, it supports 10G Fibre Channel up to 10km.

Q: Is the XFP module hot-pluggable?
A: Yes, it features a hot-pluggable XFP footprint for easy installation and replacement.

Q: Can FiberMania customize this transceiver?
A: Yes, OEM/ODM services allow for wavelength, connector type, labeling, and packaging customization.

Q: What diagnostic functions are included?
A: Built-in digital diagnostics monitor optical power, temperature, voltage, and bias current to ensure reliable performance.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
