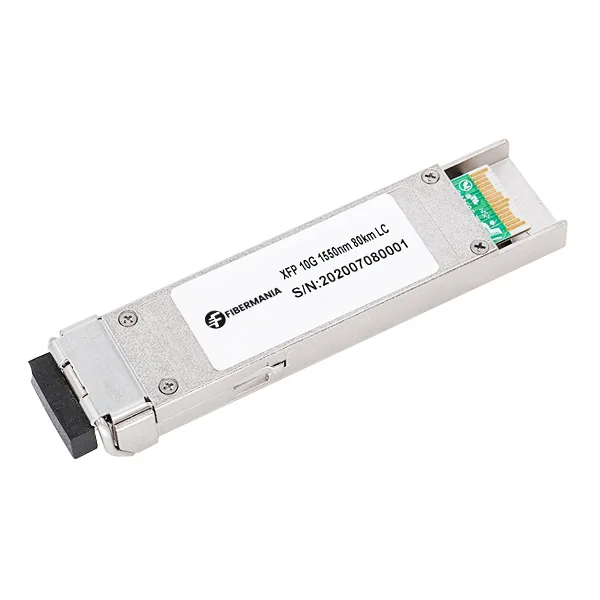

XFP Transceiver, 10GBase Ethernet/Fiber Channel ZR, 80KM, Single Mode 1550nm

Name: XFP Transceiver 10GBase Ethernet/Fiber Channel ZR 80KM
SKU: XFP-10G-ZR-80KM

P/N: XFP-10G-ZR-80KM

Categories:

10G SFP+

Product Highlights:

10G XFP ZR transceiver with 1550nm EML transmitter and APD receiver, supporting distances up to 80km over single-mode fiber.
Duplex LC interface, hot-pluggable, with digital diagnostics for real-time performance monitoring.
Compatible with 10G Ethernet, 10G Fiber Channel, SONET/SDH, and ITU-T G.709 networks.
FiberMania provides OEM/ODM customization and private-label manufacturing

Description

The 10G XFP Transceiver ZR is a high-performance, single-mode optical module designed for long-distance 10G Ethernet and Fiber Channel networks. With a 1550nm EML transmitter and high-sensitivity APD receiver, it supports reliable optical transmission over distances up to 80 kilometers. This module is suitable for metro networks, data center interconnects, and carrier-class optical systems requiring stable, high-speed connectivity.

Featuring a hot-pluggable XFP footprint, the module allows seamless insertion and removal without disrupting network operation. It supports a wide range of protocols, including 10GBase-ZR Ethernet, 10G Fiber Channel, SONET/SDH, and ITU-T G.709, making it versatile for various optical transport and data center applications. The module also includes digital diagnostic functions that enable real-time monitoring of temperature, optical power, voltage, and bias current, ensuring network reliability and operational efficiency.

Engineered to operate across a temperature range of 0ºC to 70ºC, this transceiver maintains consistent performance under standard environmental conditions. With power dissipation below 3.5W and duplex LC connectors, it provides both energy efficiency and practical connectivity for high-density networking environments.

Specification

Data Rate	10Gbps
Wavelength	1550nm
Fiber Type	Single Mode (SMF)
Transmission Distance	80KM
Connector Type	LC Duplex
Compliance	XFP MSA, Class I laser, RoHS
Power Supply	3.3V
Temperature Range	0°C to +70°C
Features	Hot-pluggable, DDM
Application	10G Ethernet, Fibre Channel
Customization	OEM/ODM
Compatibility	SFP+/XFP MSA-compliant devices

Features

Supports bit rates from 9.95Gb/s to 11.1Gb/s
Hot-pluggable XFP footprint for easy deployment
Temperature-stabilized 1550nm EML transmitter for long-distance links
High-sensitivity APD receiver for reliable signal reception
Duplex LC connector interface
Maximum link length up to 80 kilometers over single-mode fiber
Power dissipation less than 3.5W
Built-in digital diagnostic functions for real-time performance monitoring
Operating temperature range: 0ºC to +70ºC

Application

10GBase-ZR 10G Ethernet
10G Fiber Channel (1200-SM-LL-L)
SONET OC-192 IR-2 / IR-3
SDH STM S-64.2b / S-64.3b
ITU-T G.709 compliant optical transport
Long-reach data center and metro network interconnects

FAQ

Q: What is the maximum transmission distance of this XFP transceiver?
A: Up to 80 kilometers over single-mode fiber (SMF).

Q: Can it be used for both Ethernet and Fiber Channel applications?
A: Yes, it supports 10GBase-ZR Ethernet and 10G Fiber Channel (1200-SM-LL-L).

Q: Is this transceiver hot-pluggable?
A: Yes, it can be inserted or removed without shutting down network equipment.

Q: Does it include monitoring functions?
A: Yes, it has built-in digital diagnostics for real-time monitoring of temperature, optical power, voltage, and bias current.

Q: Can FiberMania provide private-label or OEM versions?
A: Yes, FiberMania offers full OEM/ODM services with customized specifications, branding, and labeling.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
