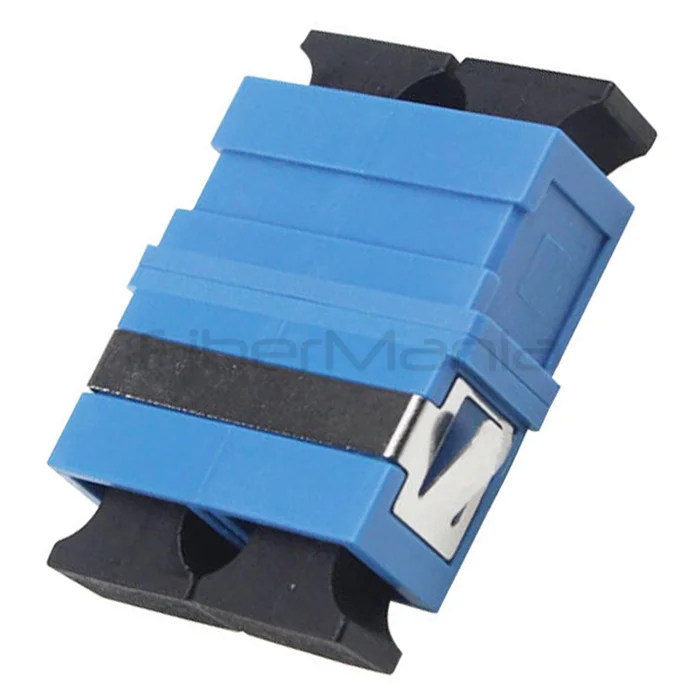

SC-SC Single Mode Duplex Plastic Flangeless Fiber Optic Adapter Blue

Name: SC-SC SM Duplex Plastic Flangeless Fiber Optic
SKU: SCSCSDPF

P/N: SCSCSDPF

Categories:

SC Adapters

Product Highlights:

SC-SC duplex single mode fiber optic adapter with flangeless design
High-precision phosphor bronze sleeve ensures low insertion loss
Durable PBT housing for long-lasting performance and repeated connections
FiberMania offers OEM/ODM customization for colors, labeling, and packaging to meet project-specific requirements

Description

The SC-SC Single Mode Duplex Fiber Optic Adapter in blue is designed for precise and reliable fiber optic connections in high-performance communication networks. Its flangeless plastic housing allows easy snap-in installation into standard patch panels while maintaining alignment accuracy for duplex single mode fibers.

Constructed with a high-precision phosphor bronze sleeve, this adapter ensures minimal insertion loss and high repeatability over repeated connections. The adapter is compatible with a variety of telecommunication, data center, and LAN/WAN environments. FiberMania offers OEM/ODM customization, including color, labeling, and packaging to meet specific project requirements.

Specification

Connector Type	SC-SC
Fiber Type	Single Mode
Configuration	Duplex
Alignment Sleeve	Ceramic
Housing Material	PBT Plastic
Mounting Options	Flanged / Flangeless
Insertion Loss	≤ 0.2 dB
Durability	≥ 1000 mating cycles
Sleeve Material	Phosphor Bronze / Ceramic
Anti-Pulling Force	200–600 G
Compliance	RoHS compliant
Standards	IEC, Telcordia GR-326, JIS
Operating Temperature	–40°C to +85°C
Storage Temperature	–40°C to +120°C

Features

High-precision alignment sleeve for low insertion loss
Durable PBT plastic housing (UL 94V-0)
Flangeless design for flexible installation
Compliant with IEC, Telcordia GR-326, and JIS standards
RoHS compliant materials
Available in multiple colors
1000+ mating cycles durability
Easy snap-in installation

Applications

Data centers
Telecommunication networks
Premise installations
LAN and WAN
FTTx deployments
Broadband networks

Additional

Insertion Loss: 0.2dB Max.
Anti Pulling Force: 200-600G
Durability:1000 times Minimum.
Housing: PBT (UL 94V-0)
Sleeve: Phosphor Bronze
Operating Temp: -40 to +85 Celsius
Storage Temp: -40 to +120 Celsius

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
