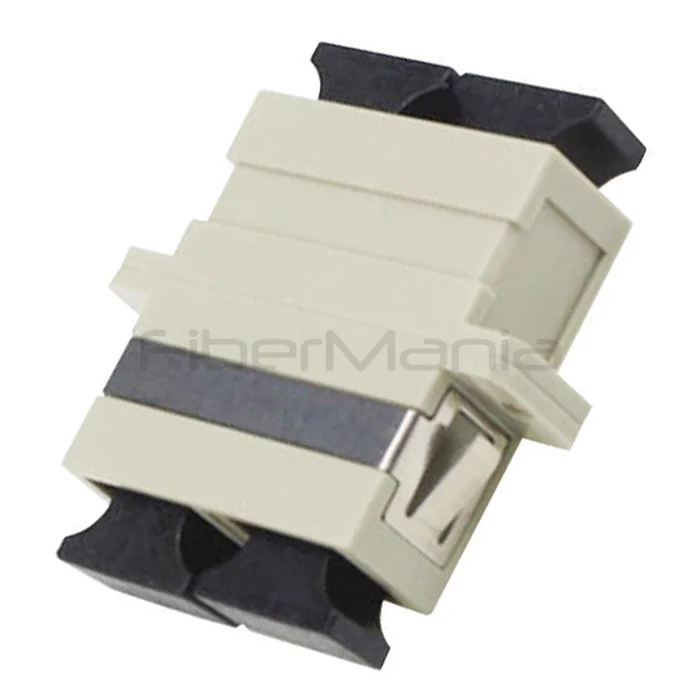

SC-SC Multimode Duplex Plastic Fiber Optic Adapter Beige
Categories:
Product Highlights:
-
SC-SC multimode duplex fiber optic adapter for reliable data transmission
-
Low insertion loss, durable design rated for 1000 mating cycles
-
Compatible with SC multimode fiber connectors and patch panels
-
FiberMania offers OEM/ODM customization for colors, labeling, and packaging to meet client-specific needs
Table of Contents
Description
The SC-SC Multimode Duplex Plastic Fiber Optic Adapter in beige is designed for high-performance multimode fiber connections in structured optical networks. It features a duplex design that allows two fiber channels to be connected simultaneously, providing efficient and reliable data transmission for LAN, WAN, and FTTx applications.
Its precise alignment sleeve ensures low insertion loss and high repeatability, making it suitable for both patch panels and optical distribution frames. The adapter is fully compliant with international standards, ensuring compatibility with a wide range of SC multimode fiber cables and connectors.
FiberMania offers OEM/ODM customization for colors, labeling, and packaging, enabling clients to tailor the product to specific project requirements or branding needs.
Specification
| Connector Type | SC-SC |
|---|---|
| Fiber Type | Multimode |
| Configuration | Duplex |
| Alignment Sleeve | Ceramic |
| Housing Material | PBT Plastic |
| Mounting Options | Flanged / Flangeless |
| Insertion Loss | ≤ 0.2 dB |
| Durability | ≥ 1000 mating cycles |
| Sleeve Material | Phosphor Bronze (plastic adapters use PB sleeve) |
| Anti-Pulling Force | 200–600 G |
| Compliance | RoHS compliant |
| Standards | IEC, Telcordia GR-326, JIS |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –40°C to +120°C |
Features
-
Duplex SC interface for multimode fiber
-
High precision alignment sleeve
-
Low insertion loss, maximum 0.2dB
-
Durable, rated for 1000 mating cycles
-
RoHS compliant materials
-
Available in various colors and flanged or flangeless options
-
100% inspected prior to shipment
Applications
-
Data centers and server rooms
-
Telecommunication networks
-
Premise installations and LAN/WAN
-
FTTx networks and broadband connections
FAQ
Q: Can this adapter be used with single mode fiber?
A: No, this adapter is specifically designed for multimode fiber.
Q: Is the duplex adapter compatible with all SC multimode connectors?
A: Yes, it works with standard SC multimode fiber connectors.
Q: How many mating cycles can it withstand?
A: The adapter is rated for at least 1000 mating cycles.
Q: Can FiberMania customize the color or labeling?
A: Yes, OEM/ODM customization for colors, labeling, and packaging is available.
Q: What is the operating temperature range?
A: The adapter operates between -40°C and +85°C, with storage up to +120°C.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
