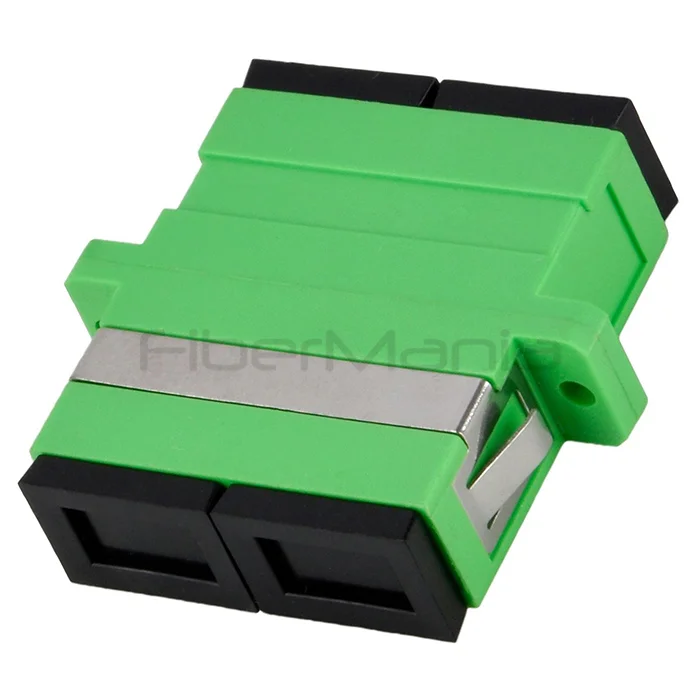

SC/APC-SC/APC Single Mode Duplex Plastic Fiber Optic Adapter Green

Name: SC/APC-SC/APC SM Duplex Plastic Fiber Optic Adapter
SKU: SCASCASDP

P/N: SCASCASDP

Categories:

SC Adapters

Product Highlights:

SC/APC-SC/APC single-mode duplex fiber optic adapter in green
Flangeless design with high-precision alignment sleeve for minimal insertion loss
Durable PBT housing with phosphor bronze sleeve, rated for 1000+ mating cycles
Ideal for data centers, LAN/WAN, FTTx, and telecommunication networks
FiberMania provides OEM/ODM services for custom colors, labeling, and packaging

Description

The SC/APC-SC/APC Single Mode Duplex Fiber Optic Adapter in green is engineered for precise and reliable optical connections in high-performance fiber optic networks. This flangeless plastic adapter features a high-precision alignment sleeve that ensures minimal insertion loss and stable signal transmission. Designed for single-mode duplex connections, it is ideal for telecommunications, data centers, LAN/WAN networks, and FTTx applications.

Constructed from durable PBT housing with a phosphor bronze sleeve, this adapter maintains consistent performance even under repeated mating cycles. The compact design allows easy integration into patch panels, wall plates, and distribution frames. FiberMania also provides OEM/ODM services, including custom color, labeling, and packaging, to meet project-specific requirements.

Specification

Connector Type	SC/APC-SC/APC
Fiber Type	Single Mode
Configuration	Duplex
Alignment Sleeve	Ceramic
Housing Material	PBT Plastic
Mounting Options	Flanged / Flangeless
Insertion Loss	≤ 0.2 dB
Durability	≥ 1000 mating cycles
Sleeve Material	Phosphor Bronze / Ceramic plastic high precision
Anti-Pulling Force	200–600 G
Compliance	RoHS compliant
Standards	IEC, Telcordia GR-326, JIS
Operating Temperature	–40°C to +85°C
Storage Temperature	–40°C to +120°C

Features

High precision alignment sleeve for stable signal performance
Complies with IEC, Telcordia GR-326, and JIS standards
Durable PBT housing with phosphor bronze sleeve
Low insertion loss, max 0.2dB
Anti-pulling force: 200–600g
Supports over 1000 mating cycles
Available in multiple colors and flanged or flangeless designs
Fully RoHS compliant

Applications

Data centers
Telecommunication networks
Premise installations
LAN and WAN
FTTx projects
Broadband network infrastructure

FAQ

Q: What is the maximum insertion loss for this adapter?
A: The maximum insertion loss is 0.2dB.

Q: How many mating cycles can it withstand?
A: The adapter is rated for a minimum of 1000 mating cycles.

Q: Is this adapter RoHS compliant?
A: Yes, all materials used comply with RoHS standards.

Q: Can FiberMania provide custom colors for this adapter?
A: Yes, OEM/ODM customization is available for color, labeling, and packaging.

Q: What is the operating temperature range?
A: The adapter operates between -40°C to +85°C and can be stored from -40°C to +120°C.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
