SC-SC OM3 Multimode Simplex Plastic Flangeless Fiber Optic Adapter Aqua
Categories:
Product Highlights:
-

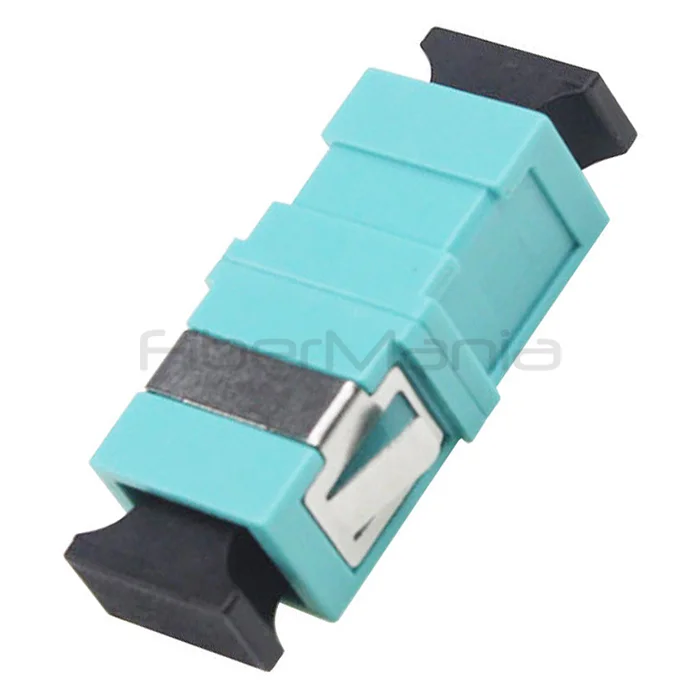

SC-SC OM3 multimode simplex flangeless fiber optic adapter in aqua color
-
Low insertion loss and high durability for reliable network connectivity
-
Ideal for LAN, WAN, FTTX, and data center applications
-
FiberMania provides OEM/ODM customization, private labeling, and high-quality production services
Table of Contents
Description
The SC-SC OM3 Multimode Simplex Flangeless Fiber Optic Adapter in Aqua is designed to provide precise and reliable optical connections in high-performance multimode networks. Its flangeless design allows for easy installation in patch panels, optical distribution frames, and fiber assemblies, especially where space is limited. The adapter ensures stable alignment between SC connectors, resulting in low insertion loss and high return loss for optimal signal integrity.
Constructed with high-quality PBT housing and a phosphor bronze alignment sleeve, this adapter is built to withstand repeated use and environmental challenges. It is suitable for various network applications, including data centers, FTTX deployments, LAN, and WAN networks, providing dependable connectivity in critical installations.
Specification
| Connector Type | SC-SC |
|---|---|
| Fiber Type | Multimode |
| Configuration | Simplex |
| Alignment Sleeve | Ceramic |
| Housing Material | PBT Plastic |
| Mounting Options | Flanged / Flangeless |
| Insertion Loss | ≤ 0.2 dB |
| Durability | ≥ 1000 mating cycles |
| Sleeve Material | Phosphor Bronze |
| Anti-Pulling Force | 200–600 G |
| Compliance | RoHS compliant |
| Standards | IEC, Telcordia GR-326, JIS |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –40°C to +120°C |
Features
-
Low insertion loss of 0.2 dB max
-
High precision phosphor bronze alignment sleeve
-
Durable PBT housing (UL 94V-0)
-
Anti-pulling force of 200–600 g
-
Endures 1000 mating cycles minimum
-
RoHS compliant materials
-
Available in multiple colors and flanged/flangeless options
Applications
-
Data center cabling
-
Telecommunication network connections
-
Premise installations
-
LAN and WAN deployments
-
FTTX and broadband networks
Q&A
Q: What is the maximum insertion loss of this adapter?
A: The insertion loss is 0.2 dB max, ensuring minimal signal attenuation.
Q: Can this adapter be used in flanged panels?
A: Yes, flanged options are available; this specific product is flangeless for flexible installation.
Q: How durable is the adapter for repeated use?
A: It is rated for at least 1000 mating cycles.
Q: Is the material RoHS compliant?
A: Yes, all materials used meet RoHS standards.
Q: Can the color of the adapter be customized?
A: Yes, FiberMania offers OEM/ODM customization for color and other specifications.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
