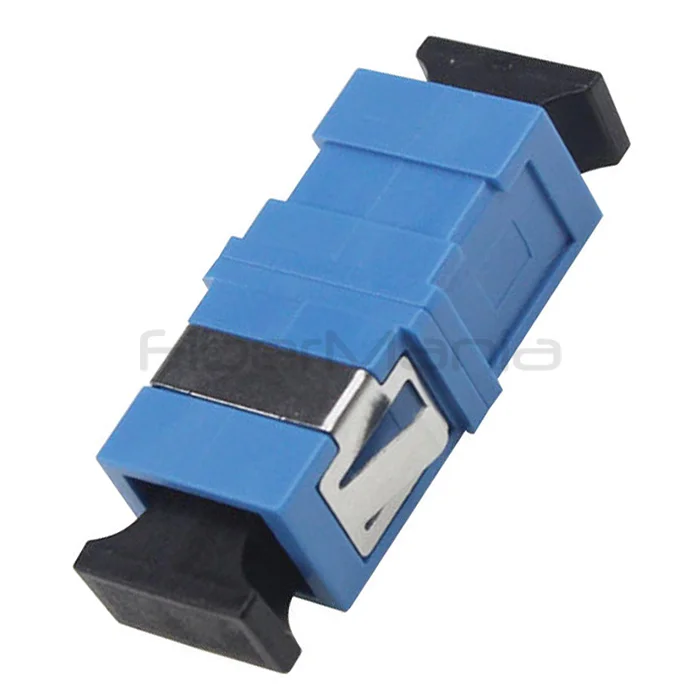

SC-SC Single Mode Simplex Plastic Fiber Optic Adapter Blue
Categories:
Product Highlights:
- Compact SC–SC simplex singlemode adapter in blue for reliable fiber mating and easy port identification.
- Precision phosphor-bronze sleeve and PBT housing (UL 94V-0) for low insertion loss and strong mechanical performance.
- RoHS-compliant material, flanged and flangeless options, suitable for data center and telecom patching panels.
Table of Contents
Description
This SC-SC simplex adapter is manufactured with a PBT housing rated UL 94V-0 and a precision phosphor-bronze alignment sleeve to ensure low insertion loss and stable performance over repeated mating cycles. It meets common telecom and data center demands for compactness, durability, and consistent optical alignment. Ideal for patch panels, wall plates, and fiber enclosures where singlemode SC connections are required.
Specification
| Connector Type | SC to SC (simplex, female-female) |
|---|---|
| Fiber Type | Singlemode |
| Insertion Loss | ≤ 0.2 dB (max typical) |
| Durability (Mating Cycles) | ≥ 1000 cycles |
| Anti-pull / Mechanical Force | 200–600 g (typical range) |
| Housing Material | PBT (UL 94V-0) |
| Sleeve Material | Phosphor Bronze (precision alignment sleeve) |
| Mounting Options | Flanged / Flangeless |
| Color | Blue (standard for singlemode) |
| Certification | RoHS (material compliance); manufactured per IEC/Telcordia guidance |
| Operating Temperature | -40 to +85 °C |
| Storage Temperature | -40 to +120 °C |
| MOQ | 1 Piece (sample orders available) |
Features
- SC to SC simplex adapter for singlemode fiber
- Low insertion loss (≤ 0.2 dB typical)
- Precision phosphor-bronze alignment sleeve
- PBT housing with UL 94V-0 flame rating
- Available in flanged and flangeless versions
- RoHS-compliant materials; 100% inspected prior to shipment
- Available in multiple colors; blue standard for singlemode
Applications
- Data center patch panels and fiber distribution frames
- Telecommunication networks and central offices
- Premises cabling, LAN/WAN installations
- FTTX and broadband access networks
- Splice and termination enclosures
FAQ
Q: Is this adapter compatible with SC simplex singlemode patch cords?
A: Yes — it is designed for standard SC simplex singlemode connectors and provides low insertion loss when properly mated.
Q: What is the expected insertion loss?
A: Typical ≤ 0.2 dB; exact values depend on mating pair and cleanliness.
Q: Can you supply custom colors or branding?
A: Yes. FiberMania supports OEM/ODM color and logo options — contact sales for MOQ and lead time.
Q: Is there a flanged option for panel mounting?
A: Yes — both flanged and flangeless versions are available to suit different panel types.
Q: What is the durability of the adapter?
A: Rated for a minimum of 1000 mating cycles under standard conditions.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
