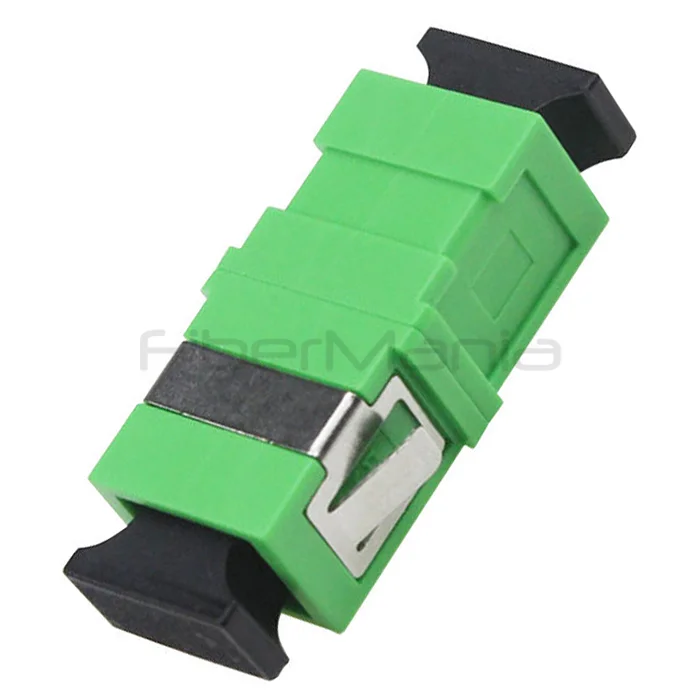

SC/APC-SC/APC Single Mode Simplex Plastic Flangeless Fiber Optic Adapter Green

Name: SC/APC-SC/APC SM Simplex Plastic Flangeless Fiber Optic
SKU: SCASCASSPF

P/N: SCASCASSPF

Categories:

SC Adapters

Product Highlights:

A compact SC/APC to SC/APC simplex flangeless adapter designed for precise alignment and stable single-mode optical transmission.
Ideal for data centers, telecom networks, and FTTx systems requiring low insertion loss and reliable long-term performance.
Built with durable PBT housing and phosphor bronze sleeve for excellent mechanical and optical stability.
FiberMania provides full OEM/ODM customization

Description

This SC/APC to SC/APC single mode simplex adapter is designed to provide precise fiber alignment and stable optical performance in high-density network environments. The flangeless plastic housing supports flexible mounting options and offers a compact, space-saving structure suitable for modern data centers and FTTx architectures. With its green color coding for APC interfaces, it ensures clear identification and prevents mismatching during installation.

The adapter features a high-precision phosphor bronze alignment sleeve that maintains low insertion loss and reliable endface contact. It is engineered to withstand repeated mating cycles while maintaining consistent optical transmission quality. Designed for long-term use in demanding environments, it performs reliably across a wide operating temperature range, ensuring durability and excellent mechanical stability.

Specification

Connector Type	SC/APC-SC/APC
Fiber Type	Single Mode
Configuration	Simplex
Alignment Sleeve	Ceramic
Housing Material	PBT Plastic
Mounting Options	Flanged / Flangeless
Insertion Loss	≤ 0.2 dB
Durability	≥ 1000 mating cycles
Sleeve Material	Phosphor Bronze / Ceramic
Anti-Pulling Force	200–600 G
Compliance	RoHS compliant
Standards	IEC, Telcordia GR-326, JIS
Operating Temperature	–40°C to +85°C
Storage Temperature	–40°C to +120°C

Features

High-precision phosphor bronze alignment sleeve
Flangeless plastic housing in APC-standard green
Meets IEC, Telcordia GR-326, and JIS performance requirements
RoHS compliant materials
100% inspected before shipment
Available in various colors
Available in both flanged and flangeless versions

Application

Data center interconnection
Telecommunication backbone networks
LAN and WAN cabling systems
FTTx and broadband access networks
Premise wiring and optical distribution frames

Q&A

Q: What is the main advantage of using a phosphor bronze sleeve?
A: It provides stable alignment, durability, and consistent optical contact, especially in high-cycle environments.

Q: Can this adapter be customized with ceramic sleeves?
A: Yes, FiberMania can provide ceramic alignment sleeves for higher-precision OEM requirements.

Q: Is the flangeless design suitable for high-density racks?
A: Yes, the compact form factor is ideal for space-restricted installations such as data centers and FTTx cabinets.

Q: Can FiberMania supply color-coded versions for different connector types?
A: Absolutely, multiple housing colors and coding standards can be customized.

Q: Does this adapter support harsh-environment applications?
A: Its wide operating temperature range makes it suitable for indoor and controlled outdoor applications.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
