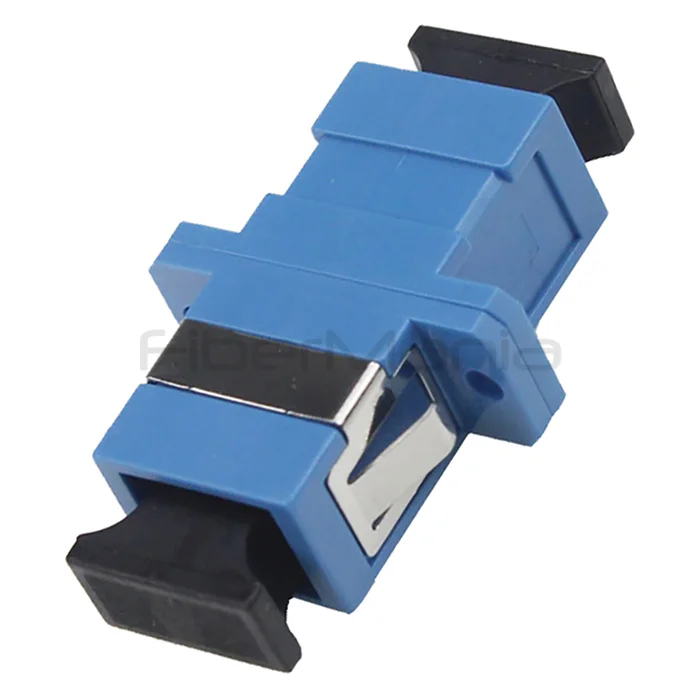

SC-SC Single Mode Simplex Plastic Flangeless Fiber Optic Adapter Blue

Name: SC-SC SM Simplex Plastic Flangeless Fiber Optic | FiberMania
SKU: SCSCSSPF

P/N: SCSCSSPF

Categories:

SC Adapters

Product Highlights:

Single mode SC-SC simplex flangeless adapter designed for stable, low-loss fiber connectivity in telecom and FTTx environments.
Features durable PBT housing, precision alignment sleeve, and consistent optical performance across temperature variations.
Suitable for high-density patch panels, distribution frames, and broadband networks requiring compact SC interface components.

Description

The SC to SC single mode simplex flangeless adapter is engineered for reliable point-to-point fiber connectivity in high-performance telecom and broadband environments. Its compact flangeless design makes it ideal for high-density patching applications where space efficiency and stable alignment are essential. This adapter uses a blue PBT housing to indicate single mode compatibility and incorporates a precision phosphor bronze sleeve to maintain consistent optical alignment between SC/UPC connectors.

Designed for use in distribution frames, termination boxes, cross-connect panels, and equipment ports, the adapter delivers stable insertion loss and long-term mechanical durability. Its high-temperature tolerance and robust physical design allow it to operate seamlessly in demanding environments across indoor installations and controlled outdoor cabinets. FiberMania supports tailored configurations to meet various project requirements, ensuring smooth integration into both new builds and upgrade deployments.

Specification

Connector Type	SC-SC
Fiber Type	Single Mode
Configuration	Simplex
Alignment Sleeve	Ceramic
Housing Material	PBT Plastic
Mounting Options	Flanged / Flangeless
Insertion Loss	≤ 0.2 dB
Durability	≥ 1000 mating cycles
Sleeve Material	Phosphor Bronze / Ceramic plastic high precision
Anti-Pulling Force	200–600 G
Compliance	RoHS compliant
Standards	IEC, Telcordia GR-326, JIS
Operating Temperature	–40°C to +85°C
Storage Temperature	–40°C to +120°C

Features

Meets IEC, Telcordia GR-326, and JIS performance requirements
Precision-molded phosphor bronze alignment sleeve
Flangeless design for compact, high-density installations
UL 94V-0 rated PBT housing in standard blue color
Low insertion loss with stable mechanical performance
Fully inspected and tested before shipment
Available in multiple colors and optional housing structures

Application

Data centers
Telecommunication networks
FTTx access and distribution networks
Enterprise premise cabling
LAN and WAN connections
Broadband cabinets and cross-connect panels

Q&A

Q1: Why choose a flangeless adapter instead of a flanged one?
Flangeless adapters save space and are ideal for high-density installations such as dense patch panels or compact termination units.

Q2: Can I request this adapter with APC compatibility?
Yes, FiberMania can customize SC/UPC or SC/APC versions according to project requirements.

Q3: Is this adapter suitable for outdoor use?
It is suitable for controlled outdoor cabinets or enclosures but should be paired with proper protective housings and cable management.

Q4: Can FiberMania manufacture hybrid adapters for mixed connector types?
Yes, SC-LC, SC-FC, and other hybrid configurations are available through our OEM service.

Q5: Are logo printing and branded packaging supported?
Yes, full private-label support is available, including laser marking and customized packaging.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
