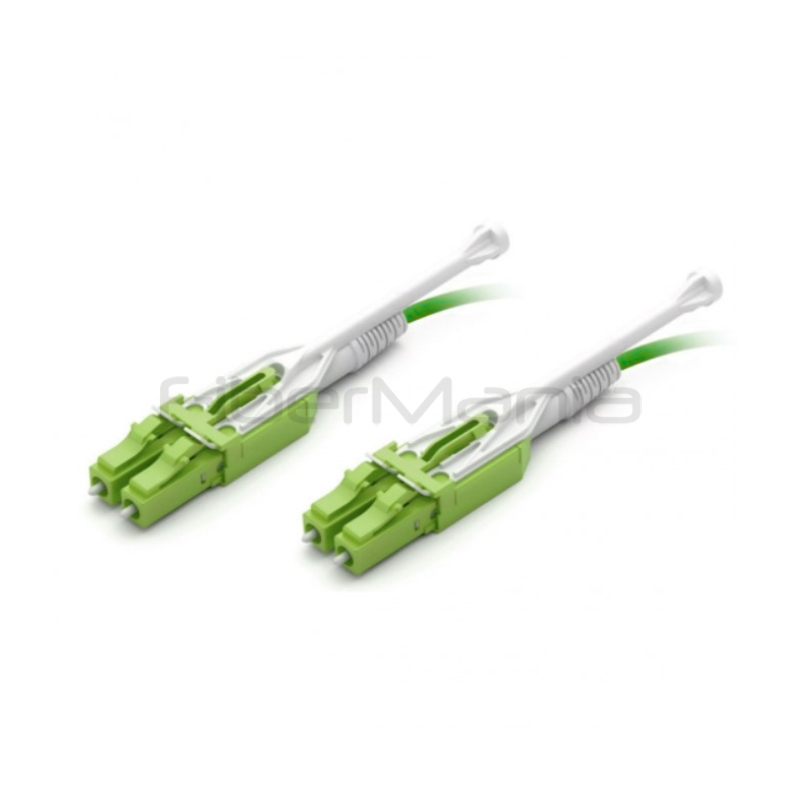

LC to LC UPC OM5 Duplex Uniboot Push-Pull Fiber Optic Patch Cord
Categories:
Product Highlights:
- LC to LC UPC OM5 duplex uniboot design
- Push-pull tab for easy high-density port access
- Tool-free A/B polarity reversal
- 2.0mm compact cable for reduced congestion
- OM5 50/125μm wideband multimode fiber
- Supports high-speed Ethernet and SWDM
Table of Contents
Description
The LC to LC UPC OM5 Duplex Uniboot Push-Pull Fiber Optic Patch Cord is designed for high-density fiber cabling environments where space efficiency, cable management, and easy maintenance are important. Its compact uniboot construction combines two fibers into a single 2.0mm cable, reducing cable bulk compared with conventional duplex patch cords. The integrated push-pull tab allows convenient insertion and removal from densely populated LC ports, while the tool-free polarity reversal design enables quick A/B polarity changes without connector disassembly. Built with OM5 50/125μm wideband multimode fiber, precision zirconia ceramic ferrules, and factory-tested connectors, the patch cord supports high-speed Ethernet and SWDM applications in data centers, enterprise networks, SANs, cloud infrastructure, and high-density patch panels.
Specification
| Connector A | LC/UPC Uniboot Push-Pull |
|---|---|
| Connector B | LC/UPC Uniboot Push-Pull |
| Fiber Type | OM5 50/125μm Wideband Multimode |
| Fiber Count | Duplex (Uniboot) |
| Polish Type | UPC to UPC |
| Cable Diameter | 2.0mm |
| Jacket Rating | OFNP Plenum |
| Jacket Material | PVC |
| Jacket Color | Lime Green (OM5 Standard) |
| Operating Wavelength | 850nm / 1300nm |
| Insertion Loss | ≤0.35dB |
| Return Loss | ≥35dB |
| Polarity | Type A (Tx to Rx), Tool-Free Reversible |
| Operating Temperature | -40°C to +70°C |
| Connector Feature | Integrated Push-Pull Tab |
| Additional Feature | Tool-Free Polarity Reversal |
| Fire Rating | IEC 60332-3-24 |
Features
- LC to LC duplex OM5 fiber patch cord
- UPC polished LC connectors
- Compact uniboot design with two fibers in one 2.0mm cable
- Integrated push-pull tab for easy port access
- Tool-free A/B polarity reversal
- OM5 50/125μm wideband multimode fiber
- Supports SWDM and high-speed Ethernet applications
- Precision zirconia ceramic ferrules
- Reduced cable congestion in high-density installations
- Factory terminated and tested
Applications
- Data center networks
- High-density fiber patch panels
- Enterprise networks
- Storage Area Networks (SAN)
- Cloud computing infrastructure
- High-speed Ethernet connections
- SWDM multimode fiber networks
FAQ
What is the advantage of the uniboot design?
The uniboot design combines two fibers into a single 2.0mm cable, reducing cable bulk and helping improve cable management in high-density fiber installations.
How does the push-pull tab work?
The integrated push-pull tab allows the connector to be inserted or removed from densely populated LC ports without needing to directly access the connector body, simplifying installation and maintenance.
Can the polarity be changed without tools?
Yes. The patch cord supports tool-free A/B polarity reversal, allowing polarity to be changed without disassembling the LC connector.
What applications does OM5 fiber support?
OM5 wideband multimode fiber is designed for high-speed Ethernet and SWDM applications, providing a flexible solution for increasing network capacity over multimode fiber infrastructure.
Where is this patch cord commonly used?
It is particularly suitable for data centers, cloud infrastructure, SAN environments, enterprise networks, and high-density patch panels where space-efficient and easy-to-maintain cabling is required.
Speicalty Fiber Cables Guide Table
| SKU | Fiber Count | Fiber Type | Cable Type | Connector A | Connector B | Features | Cable Color | Length |
| CSULCU-SM0523YL05 | 2 | OS2 SM | Uniboot | CS/UPC | LC/UPC | LSZH | Yellow | 5FT |
| LCLCUD-M3023RAQ01 | 2 | OM3 | Uniboot | LC/UPC | LC/UPC | OFNR, 3.0mm | Aqua | 1M |
| LCLCUD-M5023RBK02 | 2 | OM2 | Uniboot | LC/UPC | LC/UPC | Indstrial Grade, IP67, Dustproof, Outdoor | Black | 1M |
| LCULCU-M5022RLM | 2 | OM5 | Uniboot | LC/UPC | LC/UPC | OFNR, Pull Tab | Lime | 1M |
| LCLCUD-M5023RLM01 | 2 | OM5 | Uniboot | LC/UPC | LC/UPC | OFNR, 3.0mm | Lime | 1M |
| MCC-LCLCM1-3 | 2 | OS2, OM1 | Mode Conditioning | 2 LC OM1 | LC OS2 + LC OM1 | 3M | ||
| MCC-LCSTM1-10 | 2 | OS2, OM1 | Mode Conditioning | 2 LC OM1 | ST OS2 + ST OM1 | 10M | ||
| MCC-MJLCM1-3 | 2 | OS2, OM1 | Mode Conditioning | MTRJ | LC OS2 + LC OM1 | 3M | ||
| MCC-SCSTM1-10 | 2 | OS2, OM1 | Mode Conditioning | 2 SC OM1 | ST OS2 + ST OM1 | 10M | ||
| PMF-R023LSF | 1 | PM850 / PM980 / PM1310 / PM1550 | Polarization Maintaining | LC / SC / FC | LC / SC / FC | 1M |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
