LC to LC UPC OS2 Duplex Flex Boot Fiber Optic Patch Cord
Categories:
Product Highlights:
- LC to LC UPC duplex OS2 patch cord
- Flexible-angle boots for easier cable routing
- G.652.D/OS2 9/125μm single mode fiber
- 2.0mm OFNR PVC jacket
- Low insertion loss and high return loss
- Factory terminated and tested
Table of Contents
Description

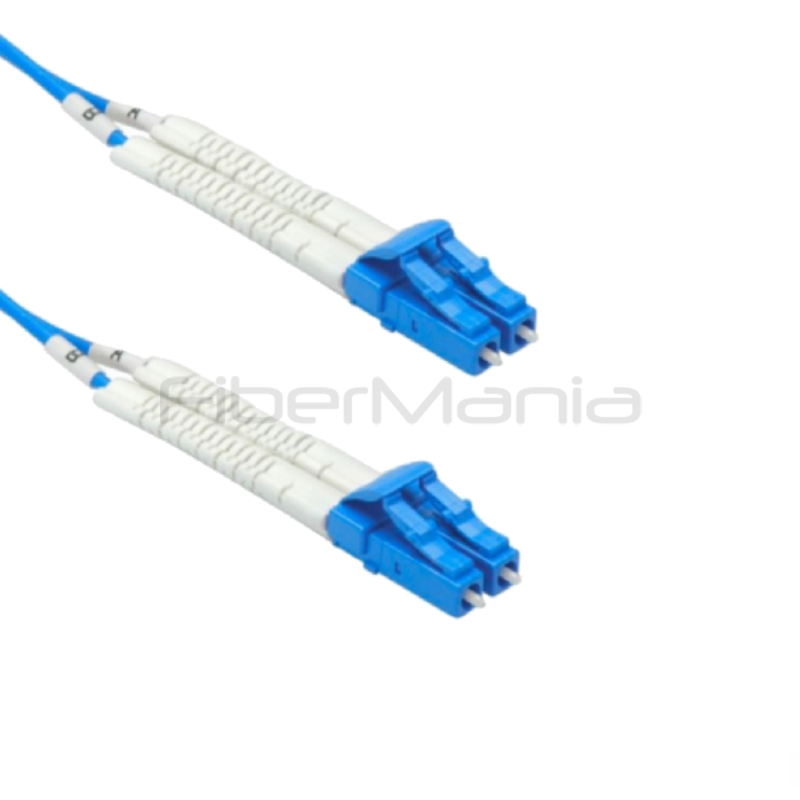

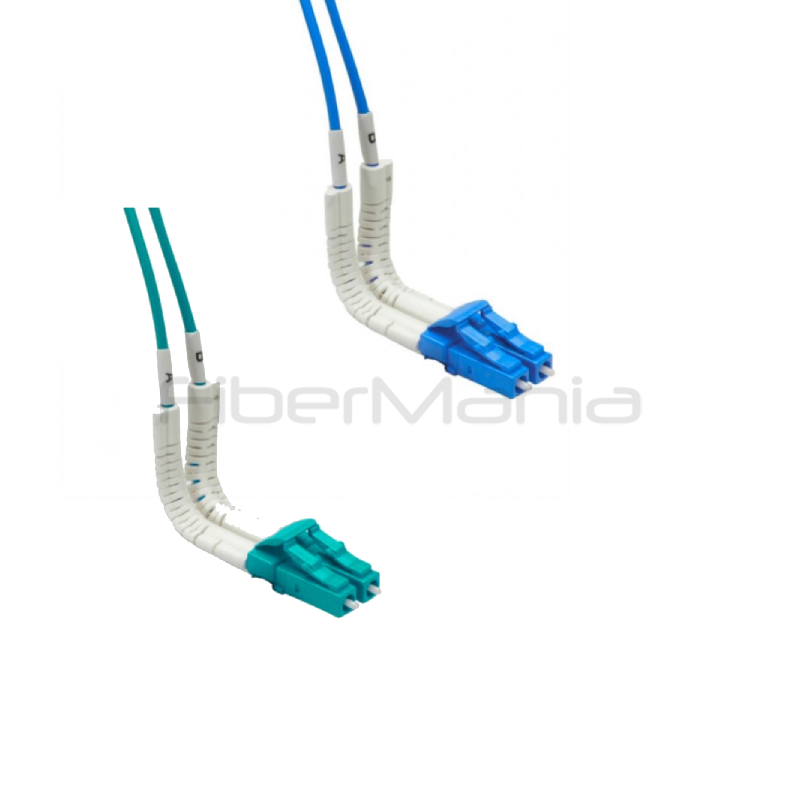

The LC to LC UPC OS2 Duplex Flex Boot Fiber Optic Patch Cord is a single mode duplex patch cable designed for reliable optical connectivity and efficient cable management in high-density fiber environments. Featuring flexible-angle boots on both LC connectors, the boots can be manually bent and positioned at virtually any angle, helping simplify cable routing, reduce congestion, and minimize fiber bending stress. The cable uses G.652.D/OS2 9/125μm single mode fiber with a durable 2.0mm OFNR PVC jacket, while precision zirconia ceramic ferrules provide low insertion loss and high return loss for stable optical performance. Factory terminated, polished, inspected, and tested, it is suitable for telecommunications, enterprise networks, data centers, FTTH deployments, ODFs, and other space-constrained fiber applications.
Specification
| Connector A | LC/UPC with Flexible Boot |
|---|---|
| Connector B | LC/UPC with Flexible Boot |
| Fiber Type | OS2 9/125μm Single Mode |
| Fiber Count | Duplex |
| Polish Type | UPC to UPC |
| Cable Diameter | 2.0mm |
| Jacket Material | OFNR PVC |
| Jacket Color | Yellow |
| Fiber Grade | G.652.D / OS2 |
| Insertion Loss | ≤0.25dB |
| Return Loss | ≥55dB |
| Operating Wavelength | 1310nm / 1550nm |
| Polarity | Type A (Tx to Rx) |
| Connector Ferrule | Precision Zirconia Ceramic |
| Cable Strength Member | Aramid Yarn |
| Cable Retention | 90N |
| Operating Temperature | -40°C to +70°C |
| Fire Rating | IEC 60332-3-24 |
Features
- LC to LC duplex fiber optic patch cord
- UPC polished LC connectors
- Flexible-angle boots on both LC connectors
- Boots can be manually positioned at virtually any angle
- G.652.D/OS2 9/125μm single mode fiber
- 2.0mm OFNR PVC cable jacket
- Premium zirconia ceramic ferrules
- Low insertion loss and high return loss
- Helps reduce cable congestion and bending stress
- Factory terminated, polished, inspected, and tested
Applications
- Data center fiber networks
- Telecommunications networks
- Enterprise optical networks
- FTTH deployments
- Optical distribution frames (ODFs)
- High-density fiber patching
- Space-constrained fiber installations
FAQ
What is the purpose of the flexible-angle boot?
The flexible boot allows the LC connector cable exit to be manually bent and positioned at different angles, making cable routing easier and helping reduce congestion and excessive bending in high-density installations.
What type of fiber does this patch cord use?
It uses G.652.D/OS2 9/125μm single mode fiber, making it suitable for long-distance and high-performance optical network applications.
Are the LC connectors UPC polished?
Yes. Both LC connectors use UPC polishing to provide reliable optical performance with low insertion loss and high return loss.
What type of jacket does the cable have?
The patch cord uses a durable 2.0mm OFNR PVC jacket, providing suitable mechanical protection for indoor fiber network installations.
Is each patch cord tested before shipment?
Yes. Each assembly is factory terminated, polished, inspected, and tested to ensure consistent connector quality and reliable optical performance.
Speicalty Fiber Cables Guide Table
| SKU | Fiber Count | Fiber Type | Cable Type | Connector A | Connector B | Features | Cable Color | Length |
| CSULCU-SM0523YL05 | 2 | OS2 SM | Uniboot | CS/UPC | LC/UPC | LSZH | Yellow | 5FT |
| LCLCUD-M3023RAQ01 | 2 | OM3 | Uniboot | LC/UPC | LC/UPC | OFNR, 3.0mm | Aqua | 1M |
| LCLCUD-M5023RBK02 | 2 | OM2 | Uniboot | LC/UPC | LC/UPC | Indstrial Grade, IP67, Dustproof, Outdoor | Black | 1M |
| LCULCU-M5022RLM | 2 | OM5 | Uniboot | LC/UPC | LC/UPC | OFNR, Pull Tab | Lime | 1M |
| LCLCUD-M5023RLM01 | 2 | OM5 | Uniboot | LC/UPC | LC/UPC | OFNR, 3.0mm | Lime | 1M |
| MCC-LCLCM1-3 | 2 | OS2, OM1 | Mode Conditioning | 2 LC OM1 | LC OS2 + LC OM1 | 3M | ||
| MCC-LCSTM1-10 | 2 | OS2, OM1 | Mode Conditioning | 2 LC OM1 | ST OS2 + ST OM1 | 10M | ||
| MCC-MJLCM1-3 | 2 | OS2, OM1 | Mode Conditioning | MTRJ | LC OS2 + LC OM1 | 3M | ||
| MCC-SCSTM1-10 | 2 | OS2, OM1 | Mode Conditioning | 2 SC OM1 | ST OS2 + ST OM1 | 10M | ||
| PMF-R023LSF | 1 | PM850 / PM980 / PM1310 / PM1550 | Polarization Maintaining | LC / SC / FC | LC / SC / FC | 1M |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
