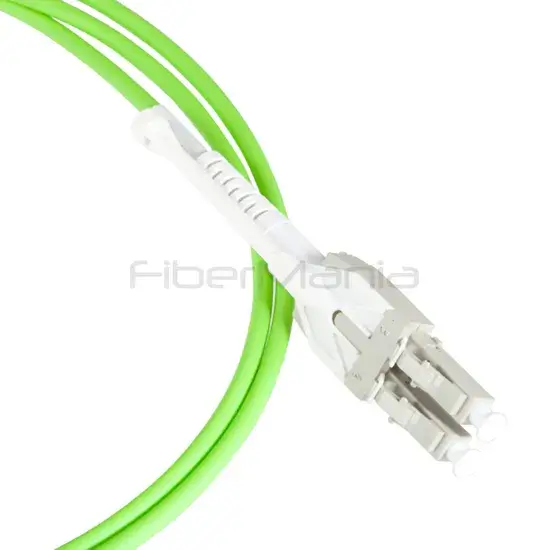

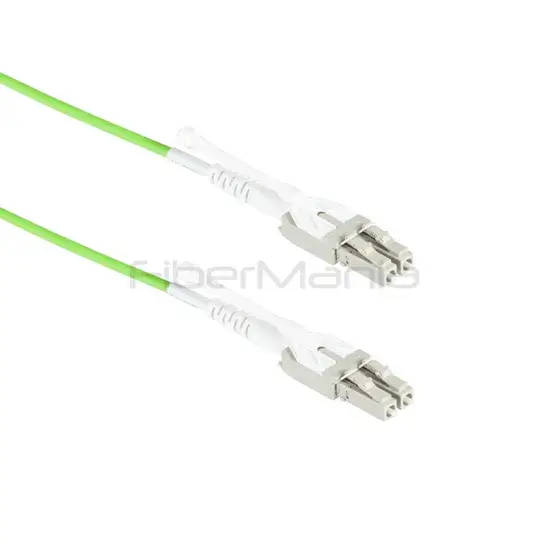

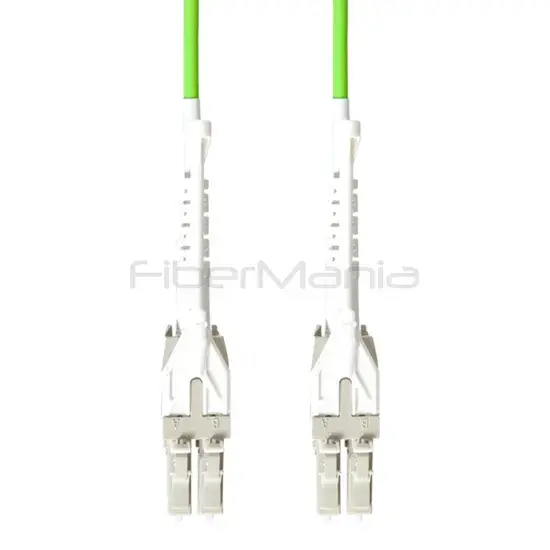

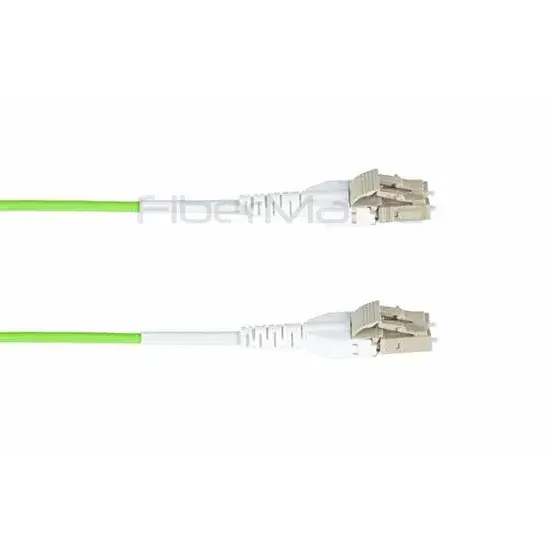

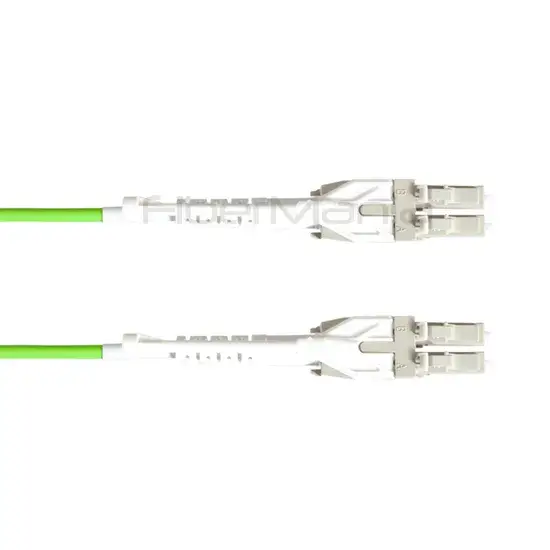

LC to LC Uniboot With Pull Tab Duplex OM5 Multimode OFNR Lime Fiber Optic Patch Cable
Categories:
Product Highlights:
-
Optimized for future-proof networking, this LC Uniboot to LC Uniboot OM5 multimode patch cable features a specialized pull-tab design for high-density 40G/100G/400G applications.
-
The lime-green 50/125μm wideband fiber supports Short-Wave Division Multiplexing (SWDM) across the 850-950nm range, significantly reducing the required fiber count in complex data center architectures.
-
Constructed with an OFNR (Riser) rated jacket and bend-insensitive fiber, it ensures maximum durability and signal stability within tight-radius cabling environments.
Table of Contents
Description
The LC Uniboot to LC Uniboot OM5 Multimode fiber patch cable represents the next generation of high-speed connectivity, specifically engineered to support the evolving demands of hyperscale data centers. By integrating the uniboot connector with a functional pull-tab, this cable solves the problem of cable congestion and difficult accessibility in high-density patch panels. The uniboot design consolidates two fibers into a single round 2.0mm or 3.0mm jacket, improving airflow and simplifying cable management compared to traditional duplex zipcord jumpers.
The core of this cable is Wideband Multimode Fiber (WBMMF), known as OM5. Unlike traditional multimode fibers, OM5 is designed to support at least four wavelengths in the 850nm to 950nm range. This capability allows for Short-Wave Division Multiplexing (SWDM), which can transmit 40G or 100G signals using just two fiber cores instead of eight. With an effective modal bandwidth of 6000MHz·km at 850nm and 8000MHz·km at 880nm, this cable provides a significant performance boost over OM3 and OM4 standards while remaining fully backward compatible with existing legacy infrastructure.
Housed in a distinctive lime-green OFNR (Riser) jacket, this patch cord is suitable for vertical installations and meets rigorous fire safety standards. Each cable is precision-engineered by FiberMania to ensure low insertion loss and high return loss, guaranteeing stable performance when paired with high-speed transceivers like 40G/100G QSFP+. Whether upgrading an existing network or building a new high-speed backbone, this OM5 uniboot cable offers a cost-effective, high-bandwidth, and space-saving solution.
Specification
| Fiber Mode | OM5 50/125μm |
|---|---|
| Connector Type | LC/UPC Uniboot to LC/UPC Uniboot |
| Cable Structure | LC Uniboot-LC Uniboot |
| Jacket Material | PVC |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Polarity | A (Tx) to B (Rx) |
| Cable Diameter | 2.0mm/3.0mm |
| Fiber Grade | G652D/G.657.A1 |
| Wavelength | 850/1300nm |
| Cable Jacket | PVC |
| Jacket Color | Lime Green |
| Min. Bend Radius | 20/10D (Dynamic/Static) |
| Tensile Strength | 200/400N (Long/Short Term) |
| Allowed Lateral Pressure | 100(N/100mm) |
| Attenuation | @850nm 3.0 dB/km / @1310nm 1.0dB/km |
| Operating Temperature | -10 to 70°C |
| Storage Temperature | -20 to 70°C |
| Certification | RoHS, CE, ISO9001, VDE, CCC |
Features
-
Wideband technology supports SWDM to transmit multiple signals over a single fiber pair.
-
Uniboot design reduces cabling volume by 50%, optimizing airflow in dense racks.
-
Integrated pull-tab allows for quick and easy plugging/unplugging in crowded environments.
-
Supports high-speed transmission up to 400Gbps (8-core) or 100Gbps (2-core).
-
Lime-green jacket color for instant identification of OM5 wideband media.
-
Bend-insensitive fiber grade ensures low loss during tight routing and installation.
-
Low insertion loss (≤0.3dB) and high return loss (≥35dB) for reliable data integrity.
-
OFNR Riser-rated jacket compliant with safety standards for non-plenum vertical spaces.
Application
-
Next-generation data centers requiring 100G, 200G, or 400G Ethernet connectivity.
-
High-density interconnects between top-of-rack switches and high-speed servers.
-
Enterprise LANs undergoing transitions from 10G to 40G/100G backbones.
-
Short-Wave Division Multiplexing (SWDM4) applications to reduce fiber cabling costs.
-
Connection of high-performance storage arrays and Fibre Channel clusters.
-
Campus-wide networking requiring high-bandwidth transmission over distances up to 500m.
FAQ
Why should I choose OM5 over OM4 for my data center? OM5 is designed for Short-Wave Division Multiplexing (SWDM). While OM4 requires 8 fibers for 100G (SR4), OM5 can achieve 100G using only 2 fibers (SWDM4), significantly reducing the complexity and cost of your fiber infrastructure.
Can the polarity of the uniboot connector be changed? Yes, our uniboot connectors are designed for easy, tool-less polarity reversal. This allows you to switch between A-to-B and A-to-A configurations in the field to match your equipment requirements.
What makes FiberMania’s OEM service different? We offer a true factory-direct experience. This means you get 16 years of manufacturing expertise, 100% testing on every cable, and the flexibility to order exactly what you need—whether it’s 1 piece or 10,000 pieces—with a very fast 3-7 day turnaround.
Is the lime-green color a requirement for OM5? Yes, TIA standards specify “Lime” as the official jacket color for OM5 to distinguish it from the “Aqua” used for OM3/OM4 and “Erika Violet” used for some OM4 variants.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
