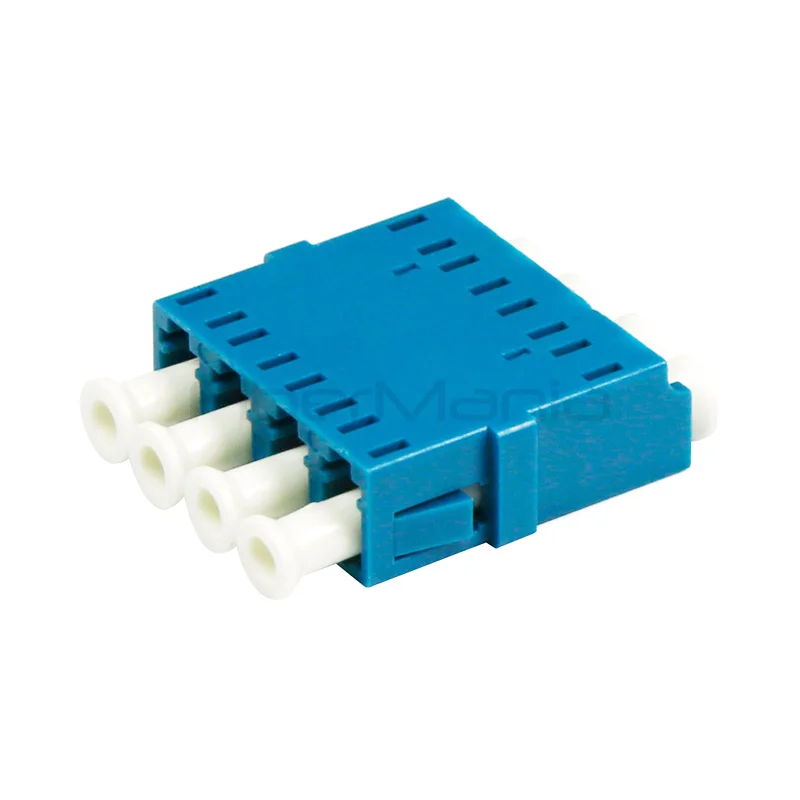

LC-LC Single Mode Quad Plastic Fiber Optic Adapter No Flange
Categories:
Product Highlights:
-
LC-LC Single Mode Quad Fiber Adapter for four high-density connections
-
No-flange design saves space in fiber panels
-
High-precision alignment sleeve ensures minimal insertion loss and long-term durability
-
FiberMania provides OEM/ODM customization
Table of Contents
Description
The LC-LC Single Mode Quad Fiber Optic Adapter is engineered to provide high-precision connections between four pairs of LC single-mode fiber optic patch cables. Its compact, no-flange design allows for efficient use of space in high-density fiber panels. The adapter ensures minimal insertion loss and high repeatability, making it ideal for critical telecom and data center applications.
Manufactured with premium materials, the adapter provides long-term durability and reliable performance. Each unit is fully inspected before shipment to ensure compliance with strict quality standards. This adapter is perfect for structured cabling environments that require high-density, single-mode optical connections.
Specification
| Connector Type | LC-LC |
|---|---|
| Fiber Mode | Single Mode |
| Configuration | Quad |
| Alignment Sleeve | Ceramic alignment sleeve |
| Housing Material | PBT Plastic (UL 94V-0) |
| Adapter Color | Customized |
| Insertion Loss | ≤ 0.2 dB |
| Durability | ≥ 1000 mating cycles |
| Anti-Pulling Force | 200–600 G |
| Compliance | RoHS compliant |
| Standards | IEC, Telcordia GR-326, JIS |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –40°C to +120°C |
Features
-
Quad LC single-mode fiber adapter for four connections
-
No-flange design for space-efficient installation
-
High-precision alignment sleeve for low insertion loss
-
Compliant with IEC, Telcordia GR-326, and JIS standards
-
RoHS compliant materials
-
100% inspected prior to shipment
-
Available in multiple colors
Applications
-
Data centers
-
Telecommunication networks
-
Premise installations
-
LAN and WAN networks
-
FTTx deployments
-
Broadband networks
FAQ
Q: Can this adapter be used in high-density panels?
A: Yes, its quad design is optimized for high-density fiber patch panels.
Q: Is the adapter compatible with multimode LC cables?
A: This model is designed for single-mode LC; multimode LC requires the respective adapter.
Q: Are custom colors or branding available?
A: Yes, FiberMania provides full OEM/ODM customization options.
Q: How many mating cycles can it endure?
A: Each adapter supports at least 1000 mating cycles without performance degradation.
Q: Does it require flanges for mounting?
A: No, the no-flange design allows flexible installation in standard panels.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
