LC-LC 10G OM4 Multimode Quad Plastic Fiber Optic Adapter Violet
Categories:
Product Highlights:
-

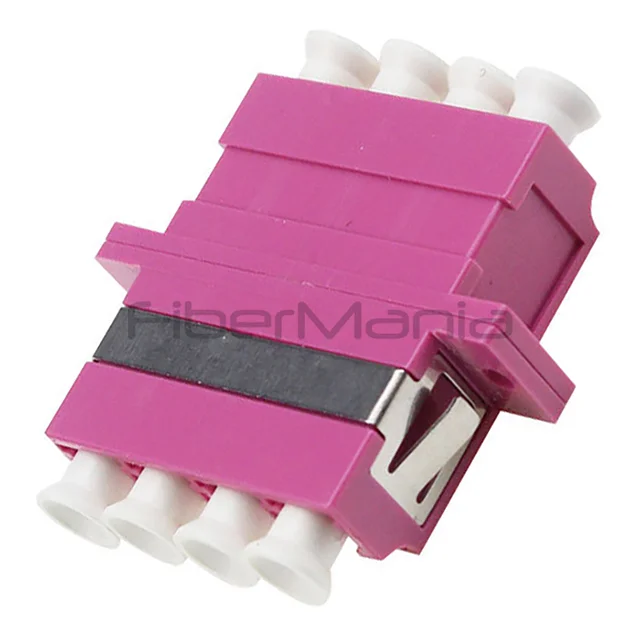

LC-LC 10G OM4 Multimode Quad Fiber Optic Adapter in violet
-
Supports high-speed multimode connections with low insertion loss
-
Durable PBT housing with phosphor bronze sleeves ensures 1000 mating cycles
-
FiberMania provides OEM/ODM customization for color, packaging, and branding
Table of Contents
Description
The LC-LC 10G OM4 Multimode Quad Fiber Optic Adapter in violet is a high-precision connection solution designed for high-speed multimode fiber networks. This adapter allows the connection of two fiber optic patch cables, maintaining stable and low-loss optical transmission. Its quad configuration is ideal for dense networking environments, supporting 10 Gigabit Ethernet and other high-bandwidth applications.
Constructed from durable PBT housing and phosphor bronze sleeves, this adapter ensures long-lasting reliability and consistent performance. The compact design with flangeless options allows flexible installation in patch panels, fiber boxes, or wall-mounted enclosures without sacrificing mechanical stability.
Specification
| Connector Type | LC-LC |
|---|---|
| Fiber Mode | Multimode |
| Configuration | Quad |
| Alignment Sleeve | Ceramic alignment sleeve |
| Housing Material | PBT Plastic (UL 94V-0) |
| Adapter Color | Violet |
| Insertion Loss | ≤ 0.2 dB |
| Durability | ≥ 1000 mating cycles |
| Anti-Pulling Force | 200–600 G |
| Compliance | RoHS compliant |
| Standards | IEC, Telcordia GR-326, JIS |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –40°C to +120°C |
Features
-
High precision LC-LC quad adapter
-
Supports 10G OM4 multimode fiber connections
-
PBT housing with phosphor bronze sleeves
-
Low insertion loss: 0.2 dB max
-
Durability: 1000 mating cycles minimum
-
Compliant with RoHS standards
-
Available in multiple colors, flanged or flangeless
Applications
-
Data centers
-
Telecommunication networks
-
Premise installations
-
LAN and WAN deployments
-
FTTx projects
-
Broadband network connections
FAQ
Q: Can this adapter support 10G Ethernet applications?
A: Yes, it is designed for 10G OM4 multimode fiber connections.
Q: What is the durability of this adapter?
A: The adapter supports a minimum of 1000 mating cycles.
Q: Is the adapter compatible with different connector types?
A: It is designed for LC-LC connections, and hybrid adapters can be provided upon request.
Q: Can the color or labeling be customized?
A: Yes, FiberMania offers OEM/ODM customization for color, packaging, and branding.
Q: Does it meet industry standards?
A: Yes, it meets IEC, Telcordia GR-326, and JIS standards.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
