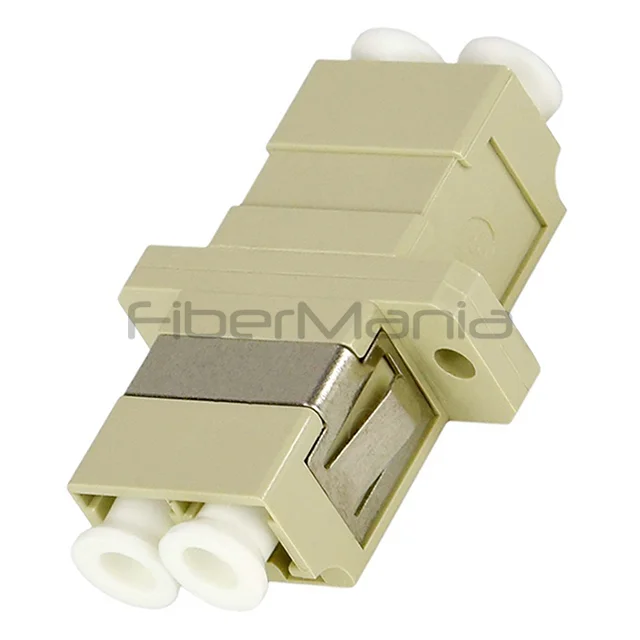

LC-LC Multimode Duplex Plastic Fiber Optic Adapter Beige

Name: LC-LC MM Duplex Plastic Fiber Optic Adapter | FiberMania
SKU: LCLCMDPC

P/N: LCLCMDPC

Categories:

LC Adapters

Product Highlights:

LC-LC multimode duplex fiber optic adapter with flangeless design, beige color for multimode identification.
Phosphor bronze alignment sleeves provide low insertion loss and reliable performance.
Durable PBT housing ensures mechanical stability in patch panels and structured cabling systems.

Description

The LC-LC multimode duplex fiber optic adapter is designed to provide reliable and high-performance connections for multimode fiber networks. Its beige color identifies standard multimode connectors, ensuring correct installation and optimal network performance. The adapter is ideal for linking two multimode fiber patch cables, facilitating efficient signal transmission in data centers, enterprise LAN/WAN networks, FTTx systems, and broadband applications.

Constructed with durable PBT housing and precision phosphor bronze alignment sleeves, the adapter guarantees low insertion loss and consistent optical performance over repeated mating cycles. The flangeless design allows for compact, high-density installations in patch panels, cassettes, or structured cabling systems. Each adapter is thoroughly inspected prior to shipment to ensure quality and reliability for professional network deployments.

Specification

Adapter Type	LC-LC
Fiber Mode	Multimode
Configuration	Duplex
Alignment Sleeve	Ceramic alignment sleeve
Housing Material	PBT Plastic (UL 94V-0)
Adapter Color	Customized
Insertion Loss	≤ 0.2 dB
Durability	≥ 1000 mating cycles
Anti-Pulling Force	200–600 G
Compliance	RoHS compliant
Standards	IEC, Telcordia GR-326, JIS
Operating Temperature	–40°C to +85°C
Storage Temperature	–40°C to +120°C

Features

High-precision phosphor bronze alignment sleeves for low insertion loss
Beige color for multimode identification
Durable PBT housing, RoHS-compliant
Flangeless design for compact, high-density installations
100% inspected prior to shipment
Flanged versions available for panel or cassette mounting

Application

Data center multimode fiber connections
Telecommunication network backbones
Premise installations and structured cabling
LAN and WAN networks
FTTx and broadband optical networks

Q&A

Q: Is this adapter suitable for 10G multimode networks?
A: Yes, it supports OM3/OM4 multimode fibers suitable for high-speed 10G Ethernet networks.

Q: Can it be supplied in a flanged version?
A: Yes, flanged versions are available for panel or cassette mounting.

Q: Can the color or branding be customized?
A: Yes, FiberMania offers OEM/ODM customization including color, logo, and packaging.

Q: How many mating cycles can this adapter handle?
A: Each adapter is tested for a minimum of 1000 mating cycles.

Q: Is it compatible with both OM3 and OM4 fibers?
A: Yes, it works with all standard multimode fiber types including OM1, OM2, OM3, and OM4.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
