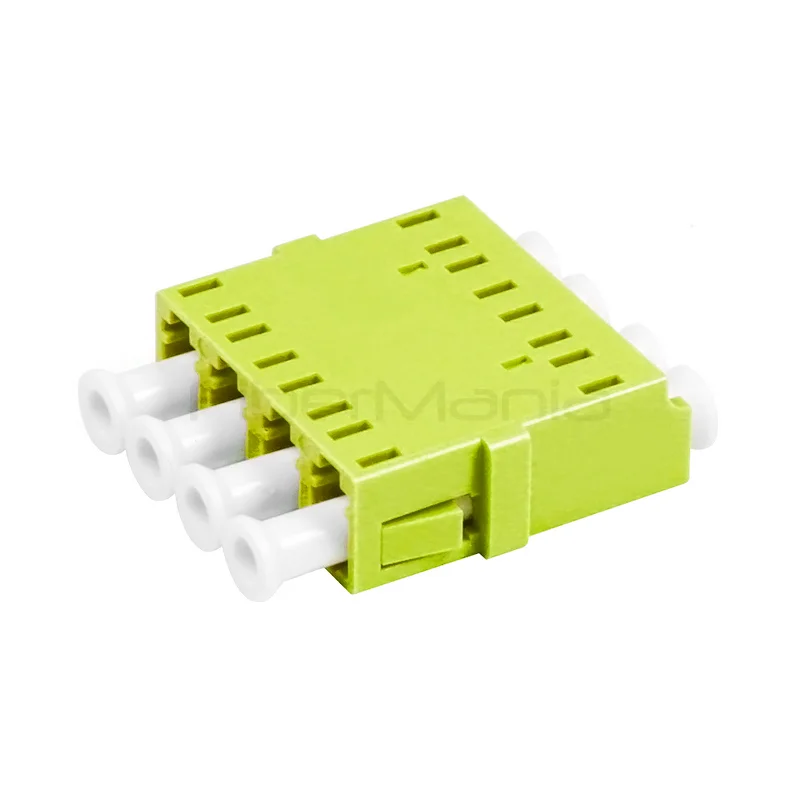

LC-LC OM5 Multimode Quad Plastic Fiber Optic Adapter

Name: LC-LC OM5 MM Quad Plastic Fiber Adapter | FiberMania
SKU: LCLC5QF

P/N: LCLC5QF

Categories:

LC Adapters

Product Highlights:

High-precision LC-LC OM5 quad adapter for low-loss connections.
Flangeless design enables high-density panel integration.
Durable PBT housing and phosphor bronze sleeve for industrial reliability.

Description

The LC-LC OM5 Multimode Quad Plastic Fiber Optic Adapter (No Flange) is designed for high-density fiber optic connections in modern data centers, telecommunications, and broadband networks. It allows seamless connection between two LC fiber optic patch cables while maintaining low insertion loss and reliable optical alignment. Its flangeless design is ideal for compact installations where space optimization is critical. Manufactured with high-quality, RoHS-compliant materials, this adapter ensures long-term performance and durability.

Specification

Connector Type	LC Duplex to LC Duplex
Fiber Type	OM5 Multimode
Adapter Style	Quad / Flangeless
Insertion Loss	≤ 0.2 dB
Anti-Pulling Force	200–600 g
Durability	≥ 1000 mating cycles
Housing Material	PBT (UL 94V-0)
Sleeve Material	Phosphor Bronze
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +120°C
Compliance	RoHS, IEC, Telcordia GR-326, JIS

Features

Precision alignment sleeve for stable, low-loss fiber connections.
Flangeless design supports high-density mounting and flexible panel integration.
RoHS-compliant materials and high-quality PBT housing for durability.
Available in multiple colors to simplify network organization.
High reliability with 100% inspection prior to shipment.

Applications

Data centers and server farms for high-density fiber connections.
Telecommunication and broadband network installations.
Premise cabling and LAN/WAN backbone systems.
FTTX networks and structured cabling deployments.

Frequently Asked Questions

Q1: What is the maximum insertion loss for this adapter?
A1: The maximum insertion loss is 0.2 dB, ensuring minimal signal degradation.

Q2: Can this adapter withstand repeated insertions?
A2: Yes, it is tested for a minimum of 1000 mating cycles for durability.

Q3: Is this adapter suitable for high-density panels?
A3: Yes, the flangeless design allows for compact and high-density installations.

Q4: What materials are used in this adapter?
A4: The housing is PBT (UL 94V-0) and the sleeve is made of phosphor bronze.

Q5: What is the operating temperature range?
A5: The adapter operates reliably between -40°C to +85°C.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
