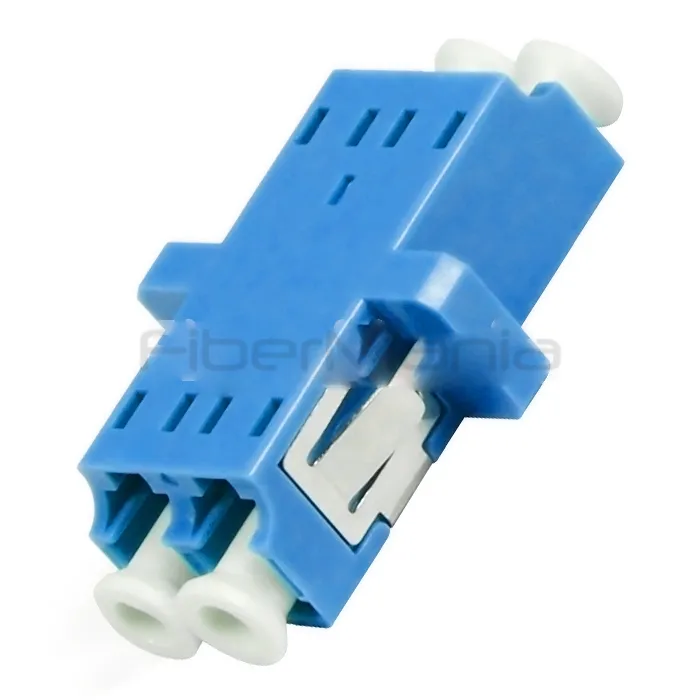

LC-LC Single Mode Duplex Plastic Fiber Optic Adapter Blue

Name: LC-LC SM Duplex Plastic Fiber Optic Adapter | FiberMania
SKU: LCLCSDPC

P/N: LCLCSDPC

Categories:

LC Adapters

Product Highlights:

LC-LC single mode duplex adapter with ceramic sleeves and durable PBT housing for precise, low-loss OS1/OS2 fiber connections.
Suitable for data centers, telecom networks, FTTx systems, and high-density optical management environments.
Available in flanged or flangeless versions with reliable performance across a wide temperature range.
FiberMania provides full OEM/ODM customization

Description

The LC-LC single mode duplex plastic fiber optic adapter from FiberMania is designed to deliver precise and stable LC-to-LC optical connections for high-performance single mode networks. Built with a robust blue PBT housing and high-precision ceramic alignment sleeves, this adapter ensures accurate ferrule positioning for low insertion loss and excellent repeatability. The duplex structure supports two LC connections in a compact footprint, making it suitable for dense patching environments such as data centers, telecom distribution frames, and enterprise network cabinets.

Engineered for durability and long-term reliability, each adapter undergoes a complete inspection process prior to shipment. Its mechanical strength, thermal stability, and material compliance allow it to perform consistently across a wide temperature range. Whether used in LAN/WAN systems, FTTx deployments, or broadband infrastructures, this adapter provides reliable single mode connectivity with simplified installation and maintenance.

Specification

Adapter Type	LC-LC
Fiber Mode	Single Mode
Configuration	Duplex
Alignment Sleeve	Ceramic alignment sleeve
Housing Material	PBT Plastic (UL 94V-0)
Adapter Color	Customized
Insertion Loss	≤ 0.2 dB
Durability	≥ 1000 mating cycles
Anti-Pulling Force	200–600 G
Compliance	RoHS compliant
Standards	IEC, Telcordia GR-326, JIS
Operating Temperature	–40°C to +85°C
Storage Temperature	–40°C to +120°C

Features

Meets IEC, Telcordia GR-326, and JIS optical standards
High-precision ceramic alignment sleeves for stable LC ferrule mating
RoHS-compliant PBT housing with UL 94V-0 flame rating
100% factory-inspected to ensure performance consistency
Available in multiple colors for easy network identification
Flanged and flangeless versions available for flexible mounting

Application

Data center optical distribution systems
Telecommunication network installations
Enterprise premise wiring and structured cabling
LAN and WAN single mode transmission
FTTx access networks
Broadband communication systems

Q&A

Q1: Why are ceramic sleeves preferred for LC single mode adapters?
A1: Ceramic sleeves offer high dimensional accuracy and stable alignment, ensuring consistent low-loss single mode mating.

Q2: Can this adapter be used in high-density data center environments?
A2: Yes, its duplex LC footprint is optimized for high-density patch panels and cassettes.

Q3: What is the expected lifespan of the adapter?
A3: The adapter is rated for at least 1000 mating cycles with stable insertion loss performance.

Q4: Is the blue housing standard for single mode LC adapters?
A4: Yes, blue is the industry-standard color for LC single mode connectivity.

Q5: Can this adapter withstand temperature changes in telecom rooms?
A5: Its wide operating temperature range ensures reliable performance in typical telecom and equipment-room conditions.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
