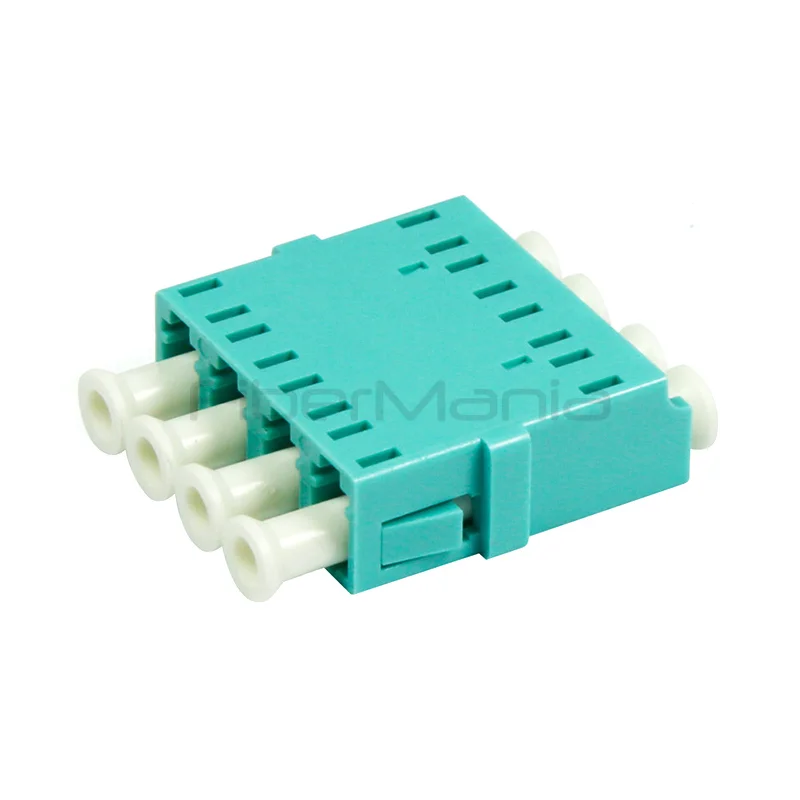

LC-LC OM3 Multimode Quad Plastic Fiber Optic Adapter No Flange
Categories:
Product Highlights:
-
LC-LC OM3 multimode quad fiber optic adapter, flangeless design
-
Supports four fiber connections for high-density networks
-
Low insertion loss and high precision alignment sleeve
-
FiberMania provides OEM/ODM customization including color, labeling, and branding
Table of Contents
Description
The LC-LC OM3 Multimode Quad Fiber Optic Adapter is designed to connect and align two multimode LC fiber optic patch cables with precision. Its quad design allows four fiber connections in a compact format, making it ideal for high-density fiber networks. Constructed from high-quality PBT material, this adapter ensures durability and long-lasting performance in demanding environments.
Engineered for low insertion loss and reliable repeatability, the adapter provides optimal signal transmission for data center, telecommunications, and enterprise network applications. The flangeless design allows for easy installation in custom panels or modular enclosures, providing flexibility in deployment and upgrades.
Specification
| Connector Type | LC-LC |
|---|---|
| Fiber Mode | Multimode |
| Configuration | Quad |
| Alignment Sleeve | Ceramic alignment sleeve |
| Housing Material | PBT Plastic (UL 94V-0) |
| Adapter Color | Customized |
| Insertion Loss | ≤ 0.2 dB |
| Durability | ≥ 1000 mating cycles |
| Anti-Pulling Force | 200–600 G |
| Compliance | RoHS compliant |
| Standards | IEC, Telcordia GR-326, JIS |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –40°C to +120°C |
Features
-
High precision alignment sleeve for stable fiber connection
-
OM3 multimode quad adapter supporting four fibers
-
Flangeless design for flexible installation
-
Materials compliant with RoHS standards
-
100% inspected prior to shipment
-
Available in multiple colors
Applications
-
Data centers
-
Telecommunication networks
-
Premise installations
-
LAN and WAN networks
-
FTTx deployments
-
Broadband networks
FAQ
Q: Can this adapter be used with LC OM4 fibers?
A: It is optimized for OM3 fibers. OM4 fibers may work, but optimal performance is ensured with OM3.
Q: How many fibers does this adapter support?
A: It supports four fibers in a quad configuration.
Q: Is the adapter RoHS compliant?
A: Yes, all materials comply with RoHS standards.
Q: Can FiberMania customize this adapter?
A: Yes, OEM/ODM services are available for color, labeling, and branding.
Q: What is the insertion loss?
A: The maximum insertion loss is 0.2dB.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
