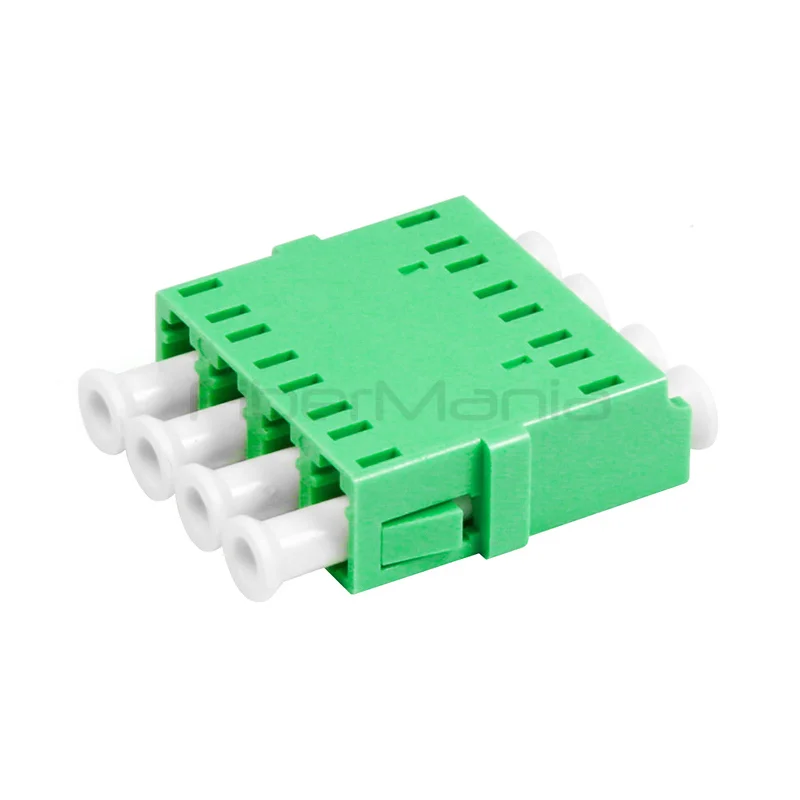

LC/APC-LC/APC Single Mode Quad Plastic Fiber Optic Adapter No Flange

Name: LC/APC-LC/APC SM Quad Plastic Fiber Adapter | FiberMania
SKU: LALASQF

P/N: LALASQF

Categories:

LC Adapters

Product Highlights:

LC/APC to LC/APC single mode quad fiber optic adapter with flangeless design for high-density installations.
Four duplex connections in a compact body provide efficient space utilization and reliable optical performance.
Durable PBT housing and precision phosphor bronze sleeves ensure low insertion loss and mechanical stability.
FiberMania offers OEM/ODM

Description

This LC/APC to LC/APC single mode quad fiber optic adapter is engineered to provide precise and stable connections for high-performance single mode fiber networks. Its flangeless design allows for compact, high-density installations, making it ideal for modern data centers and telecommunication environments. The adapter is equipped with four independent LC/APC duplex connections in a single body, enabling efficient space utilization and organized optical patching in multi-fiber systems.

Manufactured from durable PBT material rated UL 94V-0, this quad adapter ensures long-term mechanical stability and environmental resistance. Each alignment sleeve is made of phosphor bronze to maintain precise fiber endface contact and minimize insertion loss across repeated connections. The adapter undergoes 100% inspection prior to shipment to guarantee consistent quality, making it suitable for LAN, WAN, FTTx, and broadband applications where reliability and high-performance optical transmission are critical.

Specification

Connector Type	LC/APC-LC/APC
Fiber Mode	Single Mode
Configuration	Quad
Alignment Sleeve	Ceramic alignment sleeve
Housing Material	PBT Plastic (UL 94V-0)
Adapter Color	Customized
Insertion Loss	≤ 0.2 dB
Durability	≥ 1000 mating cycles
Anti-Pulling Force	200–600 G
Compliance	RoHS compliant
Standards	IEC, Telcordia GR-326, JIS
Operating Temperature	–40°C to +85°C
Storage Temperature	–40°C to +120°C

Features

Supports four LC/APC duplex connections in a compact quad design
High-precision phosphor bronze alignment sleeves for low insertion loss
Flangeless design for space-efficient, high-density installations
RoHS-compliant PBT housing
100% inspected prior to shipment for quality assurance
Available in multiple colors and flanged options

Application

Data center high-density fiber interconnections
Telecommunication network backbones
Premise installations for enterprise LAN/WAN systems
FTTx and broadband network deployments
Patch panels, cassettes, and optical distribution frames

Q&A

Q: Can this quad adapter be used in 40G or 100G single mode networks?
A: Yes, it supports high-density single mode connections suitable for high-speed transmission.

Q: Is a flanged version available for panel mounting?
A: Yes, FiberMania can provide flanged versions for specific installation requirements.

Q: Can the housing color or logo be customized?
A: Yes, OEM customization including colors, logos, and packaging is fully supported.

Q: How durable is this adapter for repeated use?
A: Each adapter is tested for a minimum of 1000 mating cycles to ensure long-term reliability.

Q: Are hybrid quad adapters available?
A: Yes, FiberMania can assemble quad adapters with different connector types upon request.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
