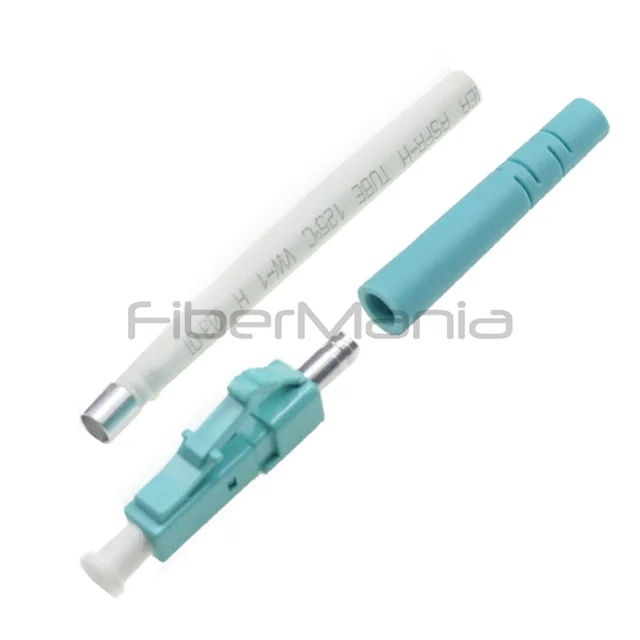

LC Simplex Connector, Multimode OM3, Aqua Housing, 2.0mm Boot

Name: LC Simplex Connector MM OM3 Aqua Housing | FiberMania
SKU: CLCM3AQ2

P/N: CLCM3AQ2

Categories:

LC Adapters

Product Highlights:

LC simplex connector for OM3 multimode fiber with aqua housing and 2.0mm boot
Low insertion loss and ultra-low back reflection for reliable high-speed data transmission
Corrosion-resistant one-piece design with pre-domed ceramic ferrule for easy installation
FiberMania provides full OEM/ODM customization for boot colors, packaging, and branding to meet project-specific needs

Description

The LC Simplex Connector from FiberMania is a high-performance fiber optic connector designed for multimode OM3 50/125µm fiber applications. Featuring an aqua-colored housing and a 2.0mm boot, this connector ensures precise, reliable connections in both LAN and WAN networks. It is engineered for low insertion loss and ultra-low back reflection, making it ideal for high-speed data transmission and minimizing signal degradation.

The connector’s one-piece design incorporates a pre-domed ceramic ferrule, enabling fast, accurate assembly and consistent performance. Compatible with 3.0mm and 2.0mm jackets as well as 900µm buffered fibers, it provides versatility for a wide range of fiber cabling projects, including FTTx, CATV, broadband, and optical test equipment applications. Its corrosion-resistant body ensures durability and long-term reliability even in challenging installation environments.

This LC connector meets Telecordia GR-326-CORE specifications and is fully RoHS compliant, providing a safe and environmentally friendly solution for high-density fiber network deployments.

Specification

Connector Type	LC
Fiber Mode	Multimode
Configuration	Simplex
Alignment Sleeve	Ceramic ferrule
Housing Material	Plastic
Adapter Color	Aqua
Insertion Loss	≤ 0.2 dB
Durability	≥ 1000 mating cycles
Anti-Pulling Force	200–600 G
Compliance	RoHS compliant
Standards	IEC, Telcordia GR-326, JIS
Operating Temperature	–40°C to +85°C
Storage Temperature	–40°C to +120°C

Features

Low insertion loss (0.20 dB) for high-efficiency signal transmission
Ultra-low back reflection for improved network performance
Corrosion-resistant housing for long-term durability
Pre-domed ceramic ferrule for easy and reliable assembly
Compatible with 3.0mm, 2.0mm jackets and 900µm buffered fibers
One-piece design for simple installation
RoHS compliant, meets Telecordia GR-326-CORE specifications

Applications

Local Area Networks (LAN) and Wide Area Networks (WAN)
Telecommunication infrastructure
Broadband networks and CATV systems
FTTx deployments and premises installations
Optical fiber test and measurement equipment

Q&A

Can this connector be used for single-mode fiber?
- No, it is specifically designed for multimode OM3 fibers.
What is the maximum number of mating cycles?
- The LC simplex connector is rated for over 1,000 mating cycles.
Can the boot color be customized?
- Yes, FiberMania offers OEM/ODM customization for boot color and packaging.
What sizes of fiber jackets are supported?
- Compatible with 3.0mm, 2.0mm jackets and 900µm buffered fibers.
Is this connector suitable for high-speed LAN applications?
- Yes, with low insertion loss and ultra-low back reflection, it supports high-speed networks effectively.
