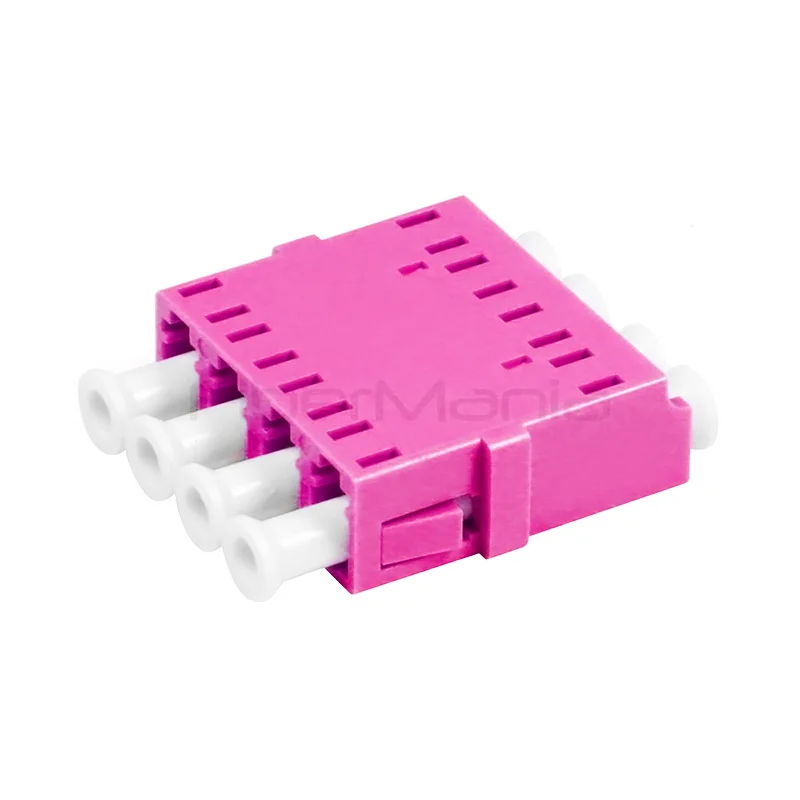

LC-LC OM4 Multimode Quad Plastic Fiber Optic Adapter

Name: LC-LC OM4 MM Quad Plastic Fiber Adapter | FiberMania
SKU: LCLC4QF

P/N: LCLC4QF

Categories:

LC Adapters

Product Highlights:

High-density quad LC-LC OM4 multimode adapter designed for space-saving patch panel and data center environments.
Built with precision phosphor bronze alignment sleeves to ensure stable, low-loss LC mating.
RoHS-compliant, fully inspected, and available in no-flange design for easy integration into modular cassettes and panels.

Description

FiberMania’s LC-LC OM4 Multimode Quad Plastic Fiber Optic Adapter (No Flange) is engineered for high-density patching and structured cabling systems where performance and space efficiency are critical. The quad-port design allows four LC duplex connections in a single compact housing, making it ideal for panels, cassettes, and high-density cross-connects. Its phosphor bronze alignment sleeves ensure accurate fiber alignment, low insertion loss, and long-term stability across thousands of mating cycles.

Crafted from UL 94V-0 flame-retardant PBT housing materials and compliant with IEC, Telcordia GR-326, and JIS performance standards, this adapter delivers reliable optical performance for OM4 multimode systems. Each unit undergoes 100% inspection before shipment to guarantee consistency and quality.

Specification

Connector Type	LC to LC, Quad (4 LC ports)
Fiber Mode	OM4 Multimode (50/125 µm)
Adapter Style	Quad LC, flangeless (no flange)
Alignment Sleeve Material	Phosphor bronze
Housing Material	PBT, UL 94V-0 flame-retardant
Insertion Loss	≤0.2 dB Max.
Durability	≥1000 mating cycles
Anti-pulling Force	200–600 g
Operating Temperature	−40°C to +85°C
Storage Temperature	−40°C to +120°C
Compliance / Standards	IEC, Telcordia GR-326-CORE, JIS, RoHS
Color Options	Aqua (OM3/OM4 standard), plus multiple optional colors
Adapter Fit	Standard LC quad footprint
Applications	Data center, FTTX, telecom, LAN/WAN, broadband
Packaging	Neutral packaging or OEM private-label

Features

Meets IEC, Telcordia GR-326, and JIS performance requirements
High-precision phosphor bronze alignment sleeves
RoHS-compliant materials
100% inspected before shipment
Available in multiple colors for easy port identification
Offered in flanged and flangeless (this product) versions
Flame-retardant UL 94V-0 PBT housing
Stable insertion loss, max. 0.2 dB

Applications

Data centers and cloud computing facilities
Telecommunication networks
Enterprise premise cabling systems
LAN/WAN infrastructure
FTTX deployments
Broadband and metro networks

Frequently Asked Questions (FAQ)

Q: Is this adapter suitable for OM3 or OM2 systems?
A: Yes. Although optimized for OM4 multimode, it is backward-compatible with OM3, OM2, and OM1 multimode LC connectors.

Q: What is the benefit of the no-flange design?
A: No-flange adapters are ideal for cassette modules and high-density panels where snap-in mounting is required without the need for screws.

Q: Are APC connectors supported?
A: This model is designed for multimode systems, so LC/UPC connectors are recommended. LC/APC connectors are physically compatible but generally not used in multimode systems.

Q: Can FiberMania provide bulk quantities for OEM manufacturing?
A: Yes, including custom packaging, labeling, and integration support for panel products.

Q: Are dust caps included?
A: Yes. Dust caps are provided on both sides to protect ferrules during storage and installation.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
