LC-LC Single Mode Quad Plastic Fiber Optic Adapter Blue
Categories:
Product Highlights:
-

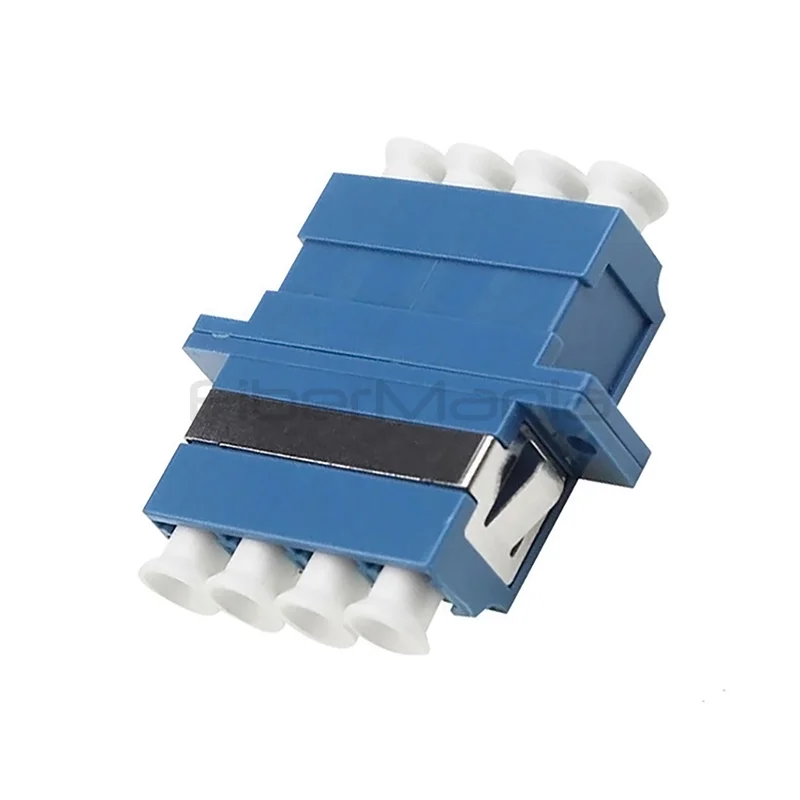

LC-LC Single Mode Quad Fiber Optic Adapter in blue
-
Compact, flangeless design for flexible installation
-
Precision ceramic sleeves for minimal insertion loss and high durability
-
FiberMania provides OEM/ODM services for custom colors, labeling, and branding
Table of Contents
Description
The LC-LC Single Mode Quad Plastic Fiber Optic Adapter in blue is designed to connect four LC fiber optic strands in a single module, providing high-density connectivity for modern networks. Its precision alignment sleeves ensure minimal insertion loss and stable signal transmission, making it ideal for high-speed single mode fiber applications.
Constructed from durable PBT housing and ceramic sleeves, this adapter offers long-lasting reliability and consistent performance. The flangeless design allows for flexible panel mounting while maintaining high mechanical strength. Its compact structure makes it suitable for fiber patch panels, wall-mounted enclosures, and other telecommunication infrastructures.
Specification
| Connector Type | LC-LC |
|---|---|
| Fiber Mode | Single Mode |
| Configuration | Quad |
| Alignment Sleeve | Ceramic alignment sleeve |
| Housing Material | PBT Plastic (UL 94V-0) |
| Adapter Color | Blue |
| Insertion Loss | ≤ 0.2 dB |
| Durability | ≥ 1000 mating cycles |
| Anti-Pulling Force | 200–600 G |
| Compliance | RoHS compliant |
| Standards | IEC, Telcordia GR-326, JIS |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –40°C to +120°C |
Features
-
Precision ceramic alignment sleeves for low insertion loss
-
PBT housing compliant with UL 94V-0
-
Flangeless design for versatile mounting
-
High mechanical strength and durability
-
Meets IEC, Telcordia GR-326, and JIS standards
-
RoHS compliant
-
Available in multiple colors
Applications
-
Data centers
-
Telecommunication networks
-
Premise installations
-
LAN and WAN connections
-
FTTx deployment
-
Broadband networks
FAQ
Q: Can this adapter be used in existing patch panels?
A: Yes, its flangeless design allows easy integration into standard fiber patch panels.
Q: What is the maximum insertion loss?
A: Maximum insertion loss is 0.2dB.
Q: Is it suitable for high-density applications?
A: Yes, the quad design accommodates four LC fibers in a single module, ideal for dense networks.
Q: Are customization options available?
A: Yes, FiberMania supports OEM/ODM services for color, labeling, and branding.
Q: What is the durability of the adapter?
A: It supports up to 1000 mating cycles for long-term reliability.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
