LC-LC OM3 Multimode Duplex Plastic Fiber Optic Adapter No Flange
Categories:
Product Highlights:
-

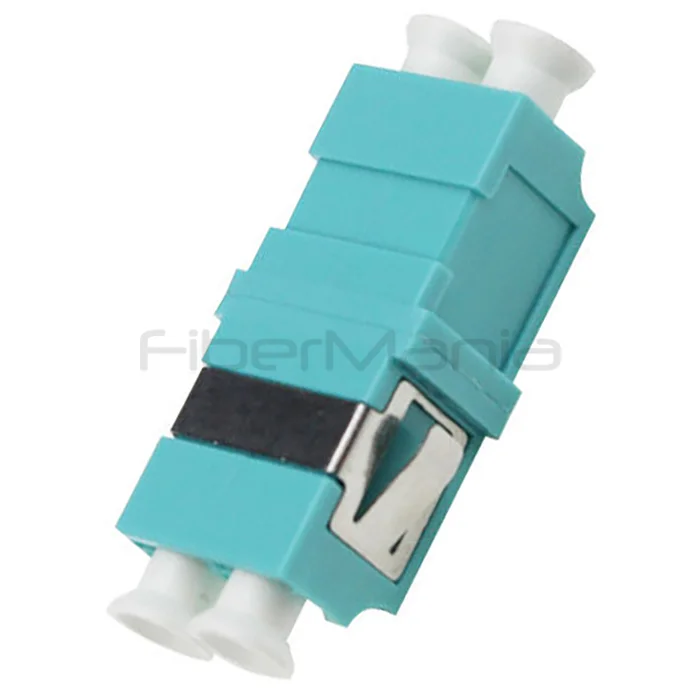

LC-LC OM3 Multimode Duplex Plastic Fiber Optic Adapter with flangeless design
-
Low insertion loss and high-precision alignment sleeve for reliable performance
-
Compact and durable PBT housing, compliant with UL 94V-0 and RoHS
-
FiberMania provides OEM/ODM customization services including colors, labeling, and packaging
Table of Contents
Description
The LC-LC OM3 Multimode Duplex Plastic Fiber Optic Adapter (No Flange) is engineered for reliable fiber optic connections in high-speed network applications. Designed for multimode OM3 fiber, it provides a duplex connection between two LC patch cables, ensuring low insertion loss and high signal integrity. Its flangeless design allows flexible installation in various patch panels and enclosures without the need for additional mounting hardware.
Constructed from durable PBT material, this adapter features a high-precision alignment sleeve that guarantees consistent optical performance. The compact design, combined with robust materials, ensures long-lasting operation with minimal maintenance in demanding environments such as data centers, LAN/WAN networks, and FTTx deployments.
Specification
| Adapter Type | LC-LC |
|---|---|
| Fiber Mode | Multimode |
| Configuration | Duplex |
| Alignment Sleeve | Ceramic alignment sleeve |
| Housing Material | PBT Plastic (UL 94V-0) |
| Adapter Color | Customized |
| Insertion Loss | ≤ 0.2 dB |
| Durability | ≥ 1000 mating cycles |
| Anti-Pulling Force | 200–600 G |
| Compliance | RoHS compliant |
| Standards | IEC, Telcordia GR-326, JIS |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –40°C to +120°C |
Features
-
High-precision alignment sleeve for accurate fiber connection
-
Low insertion loss (≤0.2dB) for reliable signal transmission
-
Flangeless design for flexible installation
-
Durable PBT housing compliant with UL 94V-0
-
Materials RoHS compliant
-
Available in various colors
-
100% inspected prior to shipment
Applications
-
Data centers
-
Telecommunication networks
-
Premise installations
-
LAN and WAN networks
-
FTTx deployments
-
Broadband network connections
FAQ
Q: Can this adapter support duplex connections?
A: Yes, it is a duplex adapter for LC-LC connections.
Q: What type of fiber is compatible?
A: Multimode OM3 fiber.
Q: Is customization available?
A: Yes, FiberMania provides OEM/ODM options including colors, labels, and packaging.
Q: What is the durability of this adapter?
A: It supports at least 1,000 mating cycles.
Q: Does it have a flange?
A: No, it features a flangeless design for flexible mounting.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
