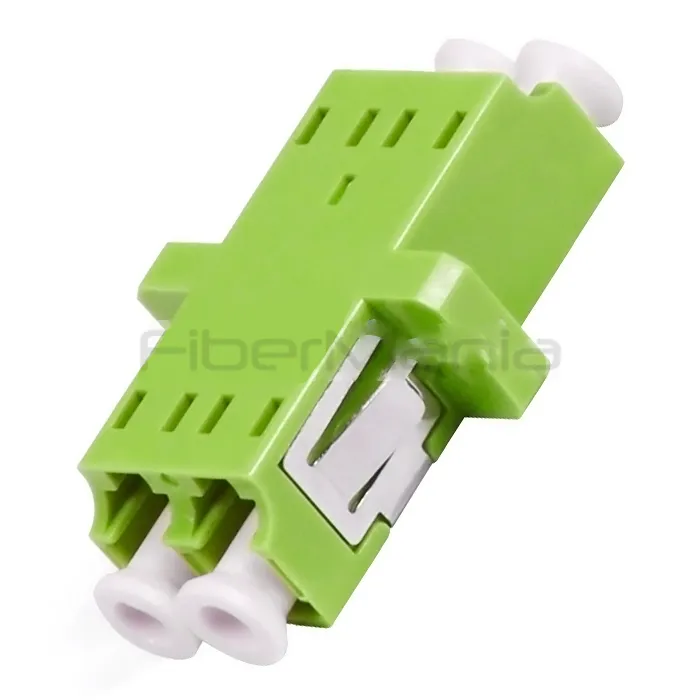

LC-LC OM5 Multimode Duplex Plastic Fiber Optic Adapter

Name: LC-LC OM5 MM Duplex Plastic Fiber Adapter | FiberMania
SKU: LCLC5DPC

P/N: LCLC5DPC

Categories:

LC Adapters

Product Highlights:

Duplex LC-LC OM5 adapter with low insertion loss and ceramic alignment sleeve.
Lime-colored body for easy identification in structured cabling.
Compact flangeless design ideal for high-density data center installations.

Description

The LC-LC OM5 Multimode Duplex Plastic Fiber Optic Adapter (Lime) is engineered for seamless connection of two LC patch cables in high-performance network environments. Its duplex design enables efficient bidirectional signal transmission while maintaining low insertion loss. With a lime-colored body for easy identification, this adapter is ideal for data centers, FTTX deployments, and broadband networks. Made from RoHS-compliant materials, it provides durable, long-lasting performance for indoor structured cabling.

Specification

Connector Type	LC Duplex to LC Duplex
Fiber Type	OM5 Multimode
Adapter Style	Duplex / Flangeless
Insertion Loss	≤ 0.2 dB
Anti-Pulling Force	200–600 g
Durability	≥ 1000 mating cycles
Housing Material	PBT (UL 94V-0)
Sleeve Material	Ceramic
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +120°C
Compliance	RoHS, IEC, Telcordia GR-326, JIS

Features

High-precision alignment sleeve for reliable, low-loss fiber connections.
Duplex LC-LC configuration optimized for OM5 multimode fibers.
RoHS-compliant PBT housing with UL 94V-0 flame rating.
100% inspected for quality assurance prior to shipment.
Available in multiple colors with flanged or flangeless options.

Applications

Data centers and enterprise backbone cabling.
Telecommunication and broadband network installations.
LAN/WAN infrastructure and premise cabling.
FTTX deployments and structured cabling systems.

Frequently Asked Questions

Q1: What is the maximum insertion loss of this adapter?
A1: The maximum insertion loss is 0.2 dB for low-loss connectivity.

Q2: How many mating cycles can the adapter endure?
A2: The adapter is durable for a minimum of 1000 mating cycles.

Q3: What material is used for the adapter sleeve?
A3: The sleeve is made of ceramic for precise fiber alignment.

Q4: What is the operating temperature range?
A4: The adapter operates between -40°C and +85°C reliably.

Q5: Is this adapter suitable for high-density panel installations?
A5: Yes, it supports flangeless and compact duplex mounting.
