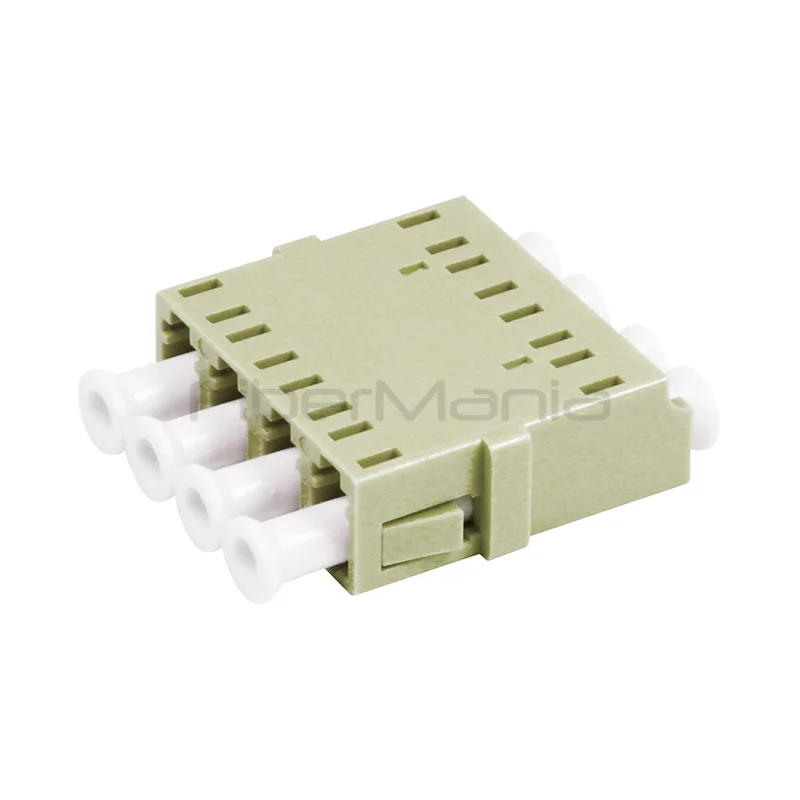

LC-LC Multimode Quad Plastic Fiber Optic Adapter No Flange
Categories:
Product Highlights:
-
LC-LC multimode quad flangeless fiber optic adapter for high-density installations
-
Low insertion loss, durable phosphor bronze alignment sleeve, and compact design
-
Suitable for data centers, LAN/WAN networks, FTTX, and broadband applications
-
FiberMania offers OEM/ODM customization and private labeling for flexible production and deployment solutions
Table of Contents
Description
The LC-LC Multimode Quad Flangeless Fiber Optic Adapter is designed to provide reliable and high-performance connections between multimode fiber optic patch cables. Its quad configuration allows four fiber connections in a compact form factor, optimizing space in high-density patch panels and optical distribution frames. The flangeless design ensures flexible installation in tight environments without sacrificing mechanical stability or optical performance.
Built with high-quality PBT housing and a phosphor bronze alignment sleeve, this adapter guarantees precision alignment, low insertion loss, and durability for repeated mating cycles. Ideal for use in data centers, LAN/WAN networks, FTTX deployments, and other broadband network applications, it delivers consistent optical performance for critical infrastructure.
Specification
| Connector Type | LC-LC |
|---|---|
| Fiber Mode | Multimode |
| Configuration | Quad |
| Alignment Sleeve | Ceramic alignment sleeve |
| Housing Material | PBT Plastic (UL 94V-0) |
| Adapter Color | Customized |
| Insertion Loss | ≤ 0.2 dB |
| Durability | ≥ 1000 mating cycles |
| Anti-Pulling Force | 200–600 G |
| Compliance | RoHS compliant |
| Standards | IEC, Telcordia GR-326, JIS |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –40°C to +120°C |
Features
-
Low insertion loss: 0.2 dB max
-
Durable phosphor bronze alignment sleeve
-
Housing made of PBT (UL 94V-0)
-
Anti-pulling force: 200–600 g
-
Mating durability: ≥1000 cycles
-
RoHS compliant materials
-
Available in various colors and flanged/flangeless options
Applications
-
Data center cabling
-
Telecommunication network connections
-
Premise installations
-
LAN and WAN networks
-
FTTX and broadband deployments
Q&A
Q: What is the maximum insertion loss for this adapter?
A: The insertion loss is 0.2 dB max, ensuring minimal signal attenuation.
Q: How many fibers can this adapter connect simultaneously?
A: It can connect up to four fibers in a compact quad configuration.
Q: Can this adapter be used in flanged panels?
A: Yes, flanged options are available; this model is flangeless for flexible installations.
Q: What is the durability of this adapter?
A: Rated for at least 1000 mating cycles.
Q: Are there OEM/ODM customization options?
A: Yes, FiberMania provides full customization including color, flanged/flangeless design, and private labeling.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
