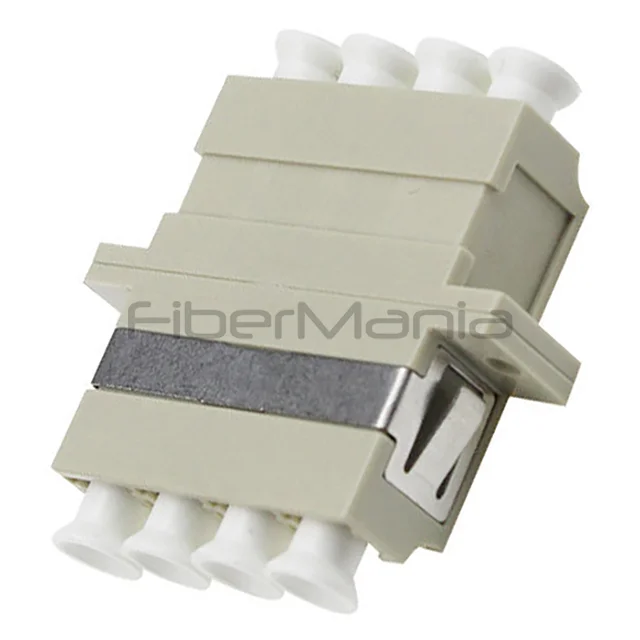

LC-LC Multimode Quad Plastic Fiber Optic Adapter Beige

Name: LC-LC MM Quad Plastic Fiber Optic Adapter | FiberMania
SKU: LCLCMQP

P/N: LCLCMQP

Categories:

LC Adapters

Product Highlights:

LC-LC multimode quad adapter with ceramic sleeves designed for high-density, low-loss multimode fiber connections.
Durable PBT housing, stable performance across a wide temperature range, and suitable for data centers, telecom, and LAN/WAN applications.
Optional color coding, flanged/flangeless styles, and compatibility with all standard LC MMF connectors.
FiberMania supports full OEM/ODM production

Description

The LC-LC multimode quad plastic fiber optic adapter from FiberMania is designed for high-density connection environments requiring stable, low-loss optical coupling. Using a compact quad-port structure, it allows four LC multimode connector pairs to be linked within a single footprint, making it ideal for data center patching, telecom distribution frames, and high-capacity LAN/WAN systems. The durable PBT housing provides strong mechanical protection, while the ceramic alignment sleeves ensure precise fiber-to-fiber mating for consistent signal transmission.

This adapter supports 50/125 µm and 62.5/125 µm multimode fiber networks and is engineered to provide reliable performance across a wide temperature range. Its beige color coding conforms to MMF identification standards, helping installers easily manage and label network infrastructure. Each unit undergoes strict inspection and quality control to ensure stable insertion loss, excellent repeatability, and long-term operational reliability.

Specification

Connector Type	LC-LC
Fiber Mode	Multimode
Configuration	Quad
Alignment Sleeve	Ceramic alignment sleeve
Housing Material	PBT Plastic (UL 94V-0)
Adapter Color	Beige
Insertion Loss	≤ 0.2 dB
Durability	≥ 1000 mating cycles
Anti-Pulling Force	200–600 G
Compliance	RoHS compliant
Standards	IEC, Telcordia GR-326, JIS
Operating Temperature	–40°C to +85°C
Storage Temperature	–40°C to +120°C

Features

Meets IEC, Telcordia GR-326, and JIS optical performance requirements
High-precision ceramic alignment sleeves for stable multimode coupling
RoHS-compliant materials with durable PBT UL 94V-0 housing
100% factory inspected for performance and quality consistency
Available in multiple colors for network identification
Flanged or flangeless design options for flexible installation

Application

Data centers and high-density patching systems
Telecommunication network equipment
Enterprise premise wiring
LAN/WAN infrastructure
FTTx access platforms
Broadband communication networks

Q&A

Q1: What type of alignment sleeve is most appropriate for multimode LC adapters?
A1: Ceramic sleeves are preferred for multimode networks because they offer high durability and stable optical alignment.

Q2: Can this quad adapter be used in high-density patch panel cassettes?
A2: Yes, the compact LC quad format is specifically designed for high-density environments such as cassettes and modular panels.

Q3: How does the housing material affect thermal performance?
A3: The PBT UL 94V-0 housing provides excellent heat resistance and maintains structural stability across wide temperature ranges.

Q4: What is the typical lifetime of this adapter under repeated mating cycles?
A4: It is rated for a minimum of 1000 mating cycles while maintaining consistent insertion loss.

Q5: Is this adapter suitable for OM4 or OM5 multimode fiber systems?
A5: Yes, it is compatible with all multimode LC connector standards, including OM2, OM3, OM4, and OM5 systems.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
