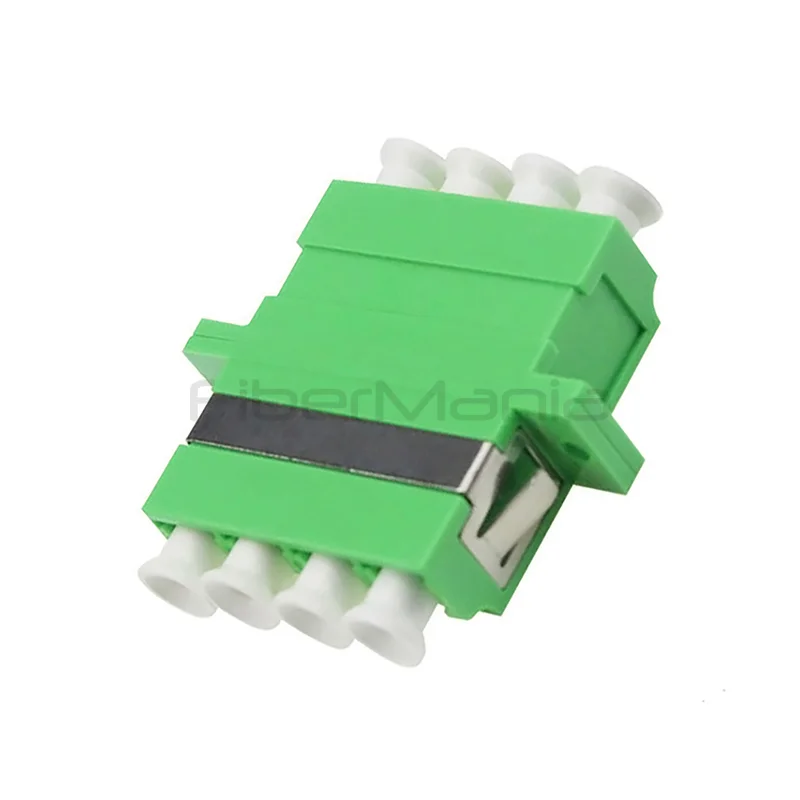

LC/APC-LC/APC Single Mode Quad Plastic Fiber Optic Adapter Green

Name: LC/APC-LC/APC SM Quad Plastic Fiber Optic Adapter
SKU: LALASQP

P/N: LALASQP

Categories:

LC Adapters

Product Highlights:

LC/APC-LC/APC single mode quad plastic fiber optic adapter in green for low-loss, high-performance fiber connections.
Quad design allows four simultaneous connections in a compact space, ideal for high-density patch panels.
Ceramic alignment sleeve ensures stable signal transmission and minimal insertion loss.
FiberMania provides OEM/ODM customization, hybrid solutions, and private labeling for integrators and distributors.

Description

The LC/APC-LC/APC single mode quad plastic fiber optic adapter is designed to provide reliable connections between four pairs of single mode fiber cables. This quad adapter allows for high-density installation in data centers, telecom rooms, and other structured cabling environments. The green housing indicates APC (Angled Physical Contact) compatibility, ensuring low back reflection and stable signal performance.

FiberMania also offers hybrid and custom adapter solutions to connect different types of connectors if needed. Each adapter is constructed with a high-precision ceramic alignment sleeve, ensuring precise fiber alignment and minimal insertion loss. This adapter is ideal for connecting LC/APC patch cables in high-speed networks and FTTX applications.

Specification

Adapter Type	LC-LC
Fiber Mode	Single Mode
Configuration	Quad
Alignment Sleeve	Ceramic alignment sleeve
Housing Material	PBT Plastic (UL 94V-0)
Adapter Color	Customized
Insertion Loss	≤ 0.2 dB
Durability	≥ 1000 mating cycles
Anti-Pulling Force	200–600 G
Compliance	RoHS compliant
Standards	IEC, Telcordia GR-326, JIS
Operating Temperature	–40°C to +85°C
Storage Temperature	–40°C to +120°C

Features

Compliant with IEC, Telcordia GR-326, and JIS performance standards
High-precision ceramic alignment sleeve for accurate fiber alignment
RoHS-compliant materials for safe and eco-friendly use
100% inspected before shipment to ensure quality
Available in flanged and flangeless designs
Quad design supports four fiber connections in a compact footprint

Application

Data center patching and backbone connections
Telecommunication networks
Premise installations and structured cabling
LAN and WAN backbone connections
FTTX deployment
Broadband network connections

Q&A

Q1: Can this quad adapter support high-speed single mode networks?
A1: Yes, it is suitable for single mode networks with minimal insertion loss and back reflection.

Q2: What does the green color indicate?
A2: Green indicates APC (Angled Physical Contact) type connectors for low back reflection performance.

Q3: How many mating cycles is it rated for?
A3: Tested for at least 1000 mating cycles.

Q4: Is it possible to customize this adapter for hybrid connections?
A4: Yes, FiberMania can provide hybrid adapters connecting different connector types.

Q5: Is this product RoHS compliant?
A5: Yes, all materials meet RoHS compliance standards.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
