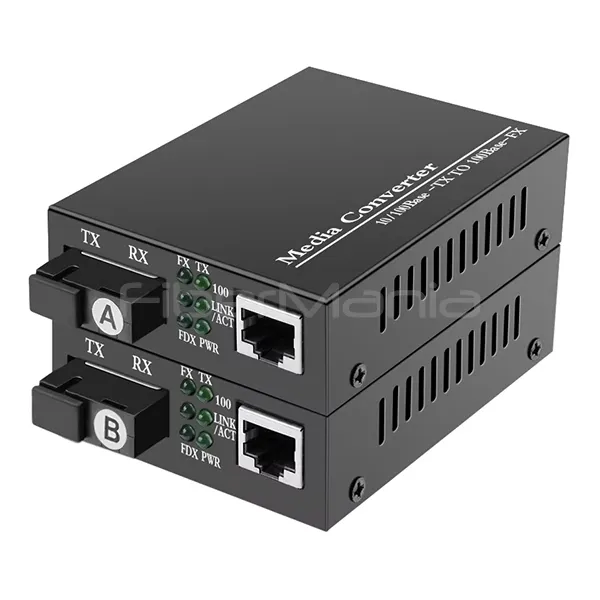

Fiber Media Converter, 10/100M BiDi TX1550/RX1310nm SM 20KM, SC Interface, External Power Supply
Categories:
Product Highlights:
-
Fiber media converter for 10/100M Ethernet using BiDi TX1550/RX1310nm over single mode fiber
-
SC interface supports single-fiber connections with distances up to 20 kilometers
-
External power supply ensures stable and reliable network operation
-
FiberMania provides OEM/ODM services with custom configurations, branding, and scalable production support
Table of Contents
Description
This fiber media converter is designed to extend 10/100M Ethernet networks over single mode fiber using bi-directional (BiDi) transmission technology. Operating with TX at 1550nm and RX at 1310nm, it enables full-duplex communication over a single fiber strand, supporting distances up to 20 kilometers. The SC interface ensures secure, low-loss connections, making it ideal for enterprise networks, telecom infrastructure, and long-distance industrial applications.
Equipped with an external power supply, the converter delivers stable operation for consistent network performance. Its compact design allows easy installation in server rooms, telecom closets, or network distribution points. The converter supports auto-negotiation for 10/100M Ethernet, providing seamless integration with existing copper-based networks while minimizing the need for additional fiber cabling.
Manufactured under strict quality control, this media converter ensures reliable, long-term performance, low insertion loss, and high signal integrity across extended single mode fiber links.
Specification
| Data Rate | 10/100 Mbps |
|---|---|
| Wavelength | TX 1550nm / RX 1310nm |
| Fiber Type | Single Mode |
| Fiber Connector Type | SC Ports (LC, ST, FC optional) |
| Interface Type | RJ45 |
| Transmission Mode | Half duplex / Full duplex |
| Transmission Distance | 20 KM |
| Storage Temperature | -20 ~ 70°C |
| Operating Temperature | 0 ~ 50°C |
| Dimension (L×W×H) | 109 x 74 x 23 mm |
| Power Supply | External Power Supply |
| Power Consumption | ≤ 5 W |
| Color | Black (Silver, White, Others available) |
Features
-
Supports 10/100M Ethernet transmission over single mode fiber
-
BiDi technology: TX 1550nm / RX 1310nm over a single fiber
-
SC interface for secure, low-loss fiber connections
-
Transmission distance up to 20 kilometers
-
External power supply for stable operation
-
Auto-negotiation for 10/100M Ethernet ports
-
Compact design suitable for telecom closets and network distribution
-
Ensures reliable signal quality and long-term network stability
Applications
-
Enterprise backbone and long-distance network connections
-
Data centers and telecom infrastructure
-
Industrial network extension over single mode fiber
-
Campus and metropolitan area network deployments
-
FTTH/FTTx backbone and distribution links
-
Copper-to-fiber network conversion for cost-effective cabling
FAQ
Q1: What is BiDi technology in this converter?
A: BiDi allows simultaneous transmission and reception over a single fiber using different wavelengths (TX1550nm / RX1310nm).
Q2: What is the maximum distance supported?
A: The converter supports up to 20 kilometers over single mode fiber.
Q3: Which fiber connector type is used?
A: SC connectors are used for secure, low-loss connections.
Q4: Can it work with existing 10/100M Ethernet devices?
A: Yes, it supports auto-negotiation for 10M and 100M Ethernet speeds.
Q5: Is the power supply included?
A: Yes, it comes with an external power supply for reliable operation.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
