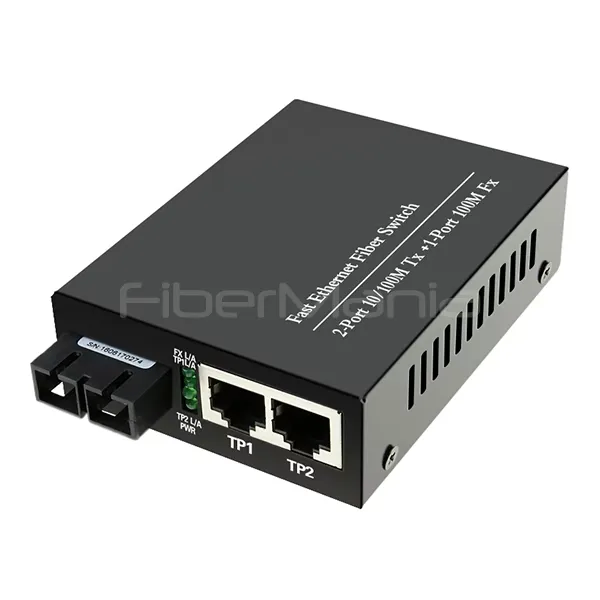

Fiber Media Converter, 10/100M 1310nm Dual Fiber Single Mode 20KM, SC Interface, 1 FX port & 2 RJ45 ports
Categories:
Product Highlights:
-
Fiber media converter with 10/100M support, 1310nm dual-fiber SC interface, 1 FX port and 2 RJ45 ports
-
Supports transmission up to 20 kilometers for long-distance network connections
-
Compact and reliable design ensures seamless fiber-to-copper integration
-
FiberMania provides OEM/ODM services with custom configurations, private labeling, and scalable production support
Table of Contents
Description
This fiber media converter provides a reliable solution for connecting 10/100M Ethernet networks over long-distance single mode fiber. Operating at 1310nm with dual-fiber SC interfaces, it supports distances up to 20 kilometers, making it ideal for enterprise networks, telecom infrastructure, and industrial applications. The converter features one FX fiber port and two RJ45 Ethernet ports, enabling flexible integration between fiber and copper networks.
Equipped with high-quality SC connectors, the device ensures secure, low-loss fiber connections, while auto-negotiation on the RJ45 ports guarantees seamless compatibility with 10/100M Ethernet devices. The converter supports full-duplex transmission, allowing high-speed, low-latency communication over extended distances. Its compact design allows easy deployment in telecom closets, server rooms, and network distribution points.
Manufactured to strict quality standards, this media converter ensures consistent performance, low insertion loss, and long-term reliability for critical network applications.
Specification
| Data Rate | 10/100 Mbps |
|---|---|
| Wavelength | 1310nm |
| Fiber Types | Single Mode |
| Fiber Connector Type | SC Ports (LC, ST, FC optional) |
| Interface Type | 1 FX port + 2 RJ45 Ports |
| Transmission Mode | Half duplex / Full duplex |
| Transmission Distance | 20 KM |
| Storage Temperature | -20 ~ 70°C |
| Operating Temperature | 0 – 50°C |
| Dimension (L×W×H) | 109 x 74 x 23 mm |
| Power Supply | External Power Supply |
| Power Consumption | ≤ 5 W |
| Color | Black (Silver, White, Others available) |
Features
-
Supports 10/100M Ethernet over single mode fiber
-
Operates at 1310nm with dual-fiber SC interfaces
-
1 FX fiber port and 2 RJ45 copper ports for flexible connectivity
-
Transmission distance up to 20 kilometers
-
Auto-negotiation for 10/100M Ethernet devices
-
Full-duplex transmission for low-latency communication
-
Compact and easy-to-install design for network closets or server rooms
-
Reliable long-term performance with low insertion loss
Applications
-
Enterprise backbone network connections
-
Data center and telecom network integration
-
Industrial and campus network connectivity
-
Long-distance Ethernet extension over single mode fiber
-
FTTH/FTTx backbone and distribution links
-
Copper-to-fiber network conversion for structured cabling
FAQ
Q1: What is the maximum distance supported by this converter?
A: It supports up to 20 kilometers over single mode fiber at 1310nm.
Q2: How many fiber and Ethernet ports does it have?
A: It has 1 FX fiber port and 2 RJ45 Ethernet ports.
Q3: Can it work with both 10M and 100M Ethernet devices?
A: Yes, the RJ45 ports support auto-negotiation for 10/100M Ethernet.
Q4: What type of fiber connector is used?
A: The converter uses SC connectors for secure and low-loss fiber connections.
Q5: Is it suitable for industrial and enterprise networks?
A: Yes, it is ideal for long-distance Ethernet extension in both industrial and enterprise environments.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
