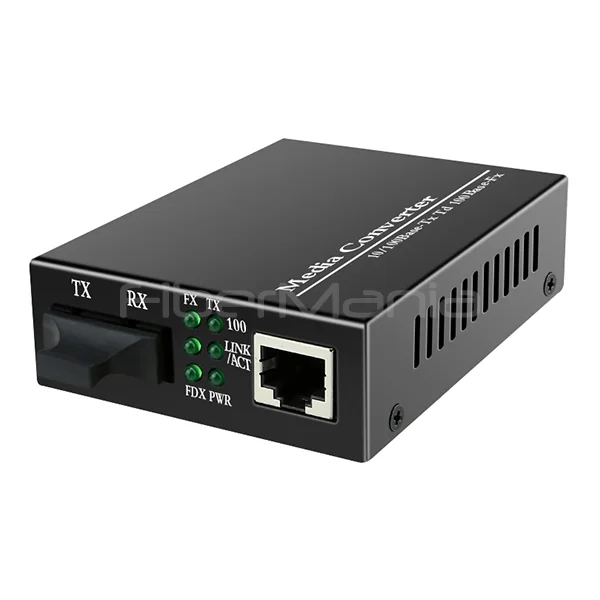

Fiber Media Converter, 10/100M 1310nm Dual Fiber MM 2KM, SC Interface, External Power Supply
Categories:
Product Highlights:
-
10/100M dual-fiber multimode media converter designed for stable 1310nm transmission up to 2KM.
-
Supports low-latency forwarding, auto MDI/MDIX, and reliable 100Base-FX operation for copper-to-fiber network extension.
-
Compatible with SC multimode systems and ideal for enterprise, surveillance, and FTTX applications.
-
FiberMania provides full OEM/ODM support for connectors, appearance, labeling
Table of Contents
Description
This 10/100M fiber media converter is designed to seamlessly extend Ethernet transmission from traditional copper cabling to optical fiber, enabling stable long-distance communication of up to 2 kilometers over multimode fiber. It is engineered as an efficient, cost-effective solution for upgrading legacy networks, providing a smooth transition between copper-based infrastructure and high-performance fiber systems.
Equipped with a built-in 2-port switch, the device supports reliable packet forwarding, low-latency data handling, and multiple operation modes suited for different deployment environments. Its robust chipset ensures consistent data buffering, link stability, and superior traffic control, making it ideal for applications requiring uninterrupted network performance.
The converter is designed for flexible integration into enterprise networks, surveillance systems, FTTH/FTTX deployments, and structured cabling environments. With optional configurations, multiple fiber connector selections, and customizable housing colors, it adapts easily to various installation scenarios. Engineered for reliability, durability, and ease of use, it meets modern networking demands while ensuring long-term operational stability.
Specification
| Data Rate | 10/100M |
|---|---|
| Fiber Type | MM (Multimode) |
| Wavelength | 1310 nm |
| Fiber Distance | 2 km |
| Interface | SC |
| Slot Count | N/A |
| Power Supply | External |
| Mounting | Desktop / Wall |
| Managed / Unmanaged | Unmanaged |
Features
-
Supports 10/100M auto-negotiation for flexible network adaptation
-
Built-in 2-port switch with low-latency cut-through forwarding
-
Supports pure converter mode for ultra-low latency transmission
-
Auto MDI/MDIX function for simplified copper port connection
-
Link Fault Pass-Through (LFP) for fast troubleshooting
-
Supports 100Base-FX multimode fiber standard
-
Integrated 128Kb RAM data buffer for stable traffic performance
-
Optional EEPROM configuration and forward-fragment function
-
LED indicators for link, activity, speed, and duplex mode
-
External power design with ≤5W low power consumption
-
Maximum transmission distance up to 2KM on multimode fiber
Applications
-
Enterprise network extension and copper-to-fiber migration
-
CCTV and IP surveillance backhaul over fiber
-
FTTX and FTTH distribution networks
-
Campus network infrastructure and building interconnection
-
Industrial or commercial network signal conversion
-
Multimedia transmission including voice, data, and video
-
Ring-type, star, or chain network architectures
FAQ
Q1: Can this media converter operate in both half and full duplex?
Yes, it supports automatic duplex negotiation and works with both modes depending on the connected device.
Q2: What type of fiber cable is required for the 2KM transmission?
It is designed for multimode 1310nm dual-fiber operation using standard SC-SC multimode patch cords.
Q3: Can FiberMania provide custom firmware or board adjustment?
Yes, OEM/ODM customization including firmware, connectors, and housing is available for large-volume orders.
Q4: Is the converter compatible with unmanaged network switches?
It works with both managed and unmanaged switches without any additional configuration.
Q5: Does it support plug-and-play installation?
Yes, it requires no configuration and automatically adapts to network conditions.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
