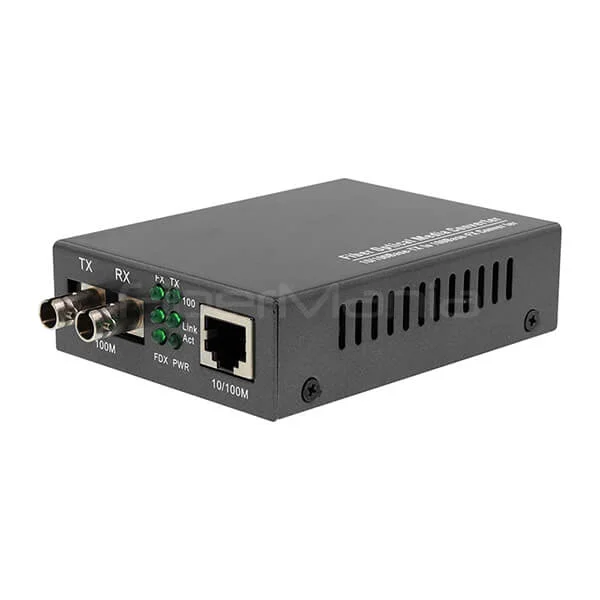

10/100M Fiber Media Converter 1310nm Dual Fiber MM 2KM ST Interface External Power
Categories:
Product Highlights:
-
10/100M Fiber Media Converter for multimode networks, ST interface, 2KM transmission distance
-
Supports seamless Ethernet to fiber conversion, half/full duplex, and low latency transmission
-
Compact design with LED indicators and external power supply for reliable operation
-
FiberMania provides OEM/ODM customization for connectors, packaging, and branding
Table of Contents
Description
This 10/100M Fiber Media Converter provides a reliable solution for converting Ethernet signals from CAT5 copper cables to optical fiber, extending network transmission distances up to 2 kilometers over multimode fiber. The device supports seamless integration into existing Ethernet networks, enabling high-performance data transmission for enterprise, campus, and broadband applications.
Equipped with ST fiber ports and an external power supply, this media converter delivers low latency and high efficiency through its built-in 2-port switch. It offers advanced features including flow control, link fault pass-through, and optional EEPROM configuration, ensuring stable and continuous network performance.
FiberMania manufactures this media converter with precise quality control and robust components to guarantee consistent performance, even in demanding network environments. Its compact design and low power consumption make it suitable for installation in cabinets, racks, or desktop setups, providing a cost-effective solution for extending network reach.
Specification
| Data Rate | 10/100M |
|---|---|
| Wavelength | 1310nm |
| Fiber Type | Multimode |
| Fiber Connector Type | ST (LC, SC, FC optional) |
| Interface Type | RJ45 |
| Transmission Distance | 2KM |
| Transmission Mode | Half duplex / Full duplex |
| Storage Temperature | -20°C ~ 70°C |
| Operating Temperature | 0°C ~ 50°C |
| Dimension (L×W×H) | 109 × 74 × 23 mm |
| Power Supply | External |
| Power Consumption | ≤5W |
| Color | Black (Silver, White, others optional) |
Features
-
Built-in 2-port switch with cut-through frame forwarding and optional pure converter mode
-
Supports 10/100M Ethernet, half/full duplex operation
-
Flow control for smooth data transmission
-
Auto MDI/MDIX function for flexible connectivity
-
Link fault pass-through (LFP) support
-
LED indicators for link/activity, full/half duplex, and 10/100M status
-
Optional EEPROM configuration for advanced management
-
Compact design with external power supply and low power consumption ≤5W
Applications
-
Enterprise and campus network bandwidth extension
-
Multimedia data transport including images and voice
-
Data transmission for computer networks and integrated transport networks
-
Broadband networks in residential or commercial buildings
-
Integration with switches to form chain, star, or ring-type network topologies
Q&A
Q1: What fiber type does this media converter support?
A1: It supports multimode fiber with ST interface by default; LC, SC, or FC connectors can be customized.
Q2: What is the maximum transmission distance?
A2: Up to 2 kilometers over multimode fiber.
Q3: Can it be used in both half and full duplex networks?
A3: Yes, it supports both half and full duplex operation modes.
Q4: Is the power supply included?
A4: Yes, it uses an external power supply by default. Custom OEM options are available.
Q5: Can the converter be branded or customized?
A5: FiberMania offers OEM/ODM customization for branding, connector type, and packaging.
