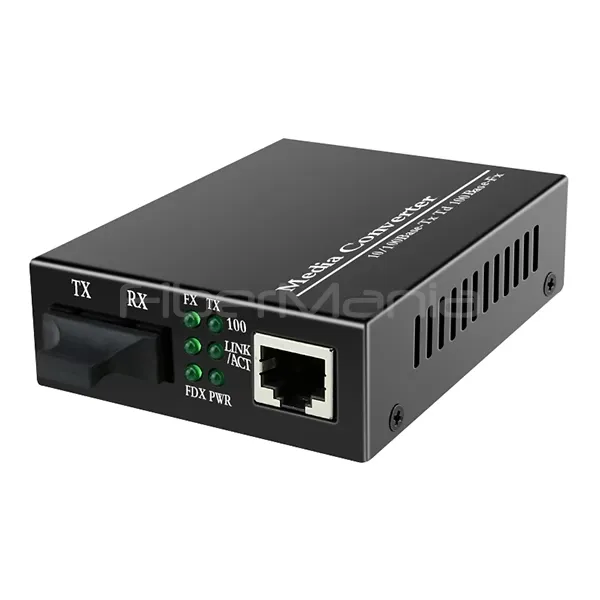

Fiber Media Converter, 10/100M 1310nm Dual Fiber SM 20KM, SC Interface, External Power Supply
Categories:
Product Highlights:
-
Fiber media converter for 10/100M Ethernet over single mode fiber, 1310nm, dual-fiber SC interface
-
Supports distances up to 20 kilometers for long-range network connectivity
-
External power supply ensures stable, reliable operation
Table of Contents
Description
This fiber media converter provides a reliable solution for connecting 10/100M Ethernet networks over long-distance single mode fiber. Operating at 1310nm wavelength with dual-fiber SC interfaces, it supports distances up to 20 kilometers, making it ideal for telecom networks, enterprise backbones, and industrial applications. The converter seamlessly bridges copper Ethernet connections to fiber optic networks, enabling high-speed, low-latency communication over extended distances.
Equipped with an external power supply, the device ensures stable and consistent operation, while its compact design allows easy deployment in telecom closets, server rooms, or network distribution points. The SC interface ensures secure, low-loss fiber connections, and the media converter supports auto-negotiation for 10/100M Ethernet, providing flexible integration into existing network infrastructures.
Manufactured to high-quality standards, this converter guarantees reliable long-term performance, protecting your network from electrical interference while extending communication range over single mode fiber.
Specification
| Data Rate | 10/100 Mbps |
|---|---|
| Wavelength | 1310nm |
| Fiber Type | Single Mode |
| Fiber Connector Type | SC Ports (LC, ST, FC optional) |
| Interface Type | RJ45 |
| Transmission Mode | Half duplex / Full duplex |
| Transmission Distance | 20 KM |
| Storage Temperature | -20 ~ 70°C |
| Operating Temperature | 0 ~ 50°C |
| Dimension (L×W×H) | 109 x 74 x 23 mm |
| Power Supply | External Power Supply |
| Power Consumption | ≤ 5 W |
| Color | Black (Silver, White, Others available) |
Features
-
Supports 10/100M Ethernet transmission over single mode fiber
-
Operates at 1310nm wavelength with dual-fiber SC interface
-
Transmission distance up to 20 kilometers
-
External power supply for stable and reliable operation
-
Auto-negotiation for 10/100M Ethernet ports
-
Compact design for easy installation in telecom closets or server rooms
-
Low insertion loss and high signal integrity over long distances
-
Ideal for extending copper networks to fiber optic infrastructure
Applications
-
Enterprise backbone network expansion
-
Data center and telecom infrastructure
-
Long-distance Ethernet transmission over fiber
-
Industrial and campus network connectivity
-
FTTH/FTTx backbone connections
-
Network segment interconnection and extension
FAQ
Q1: What is the maximum transmission distance?
A: The converter supports up to 20 kilometers over single mode fiber at 1310nm wavelength.
Q2: What type of fiber connector does it use?
A: It uses SC connectors for secure and low-loss fiber connections.
Q3: Is it compatible with 10/100M Ethernet devices?
A: Yes, it supports auto-negotiation for both 10M and 100M Ethernet speeds.
Q4: Can it be powered by external supply?
A: Yes, it comes with an external power supply for stable operation.
Q5: What environments is it suitable for?
A: It is ideal for enterprise networks, telecom systems, industrial setups, and campus networks.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
