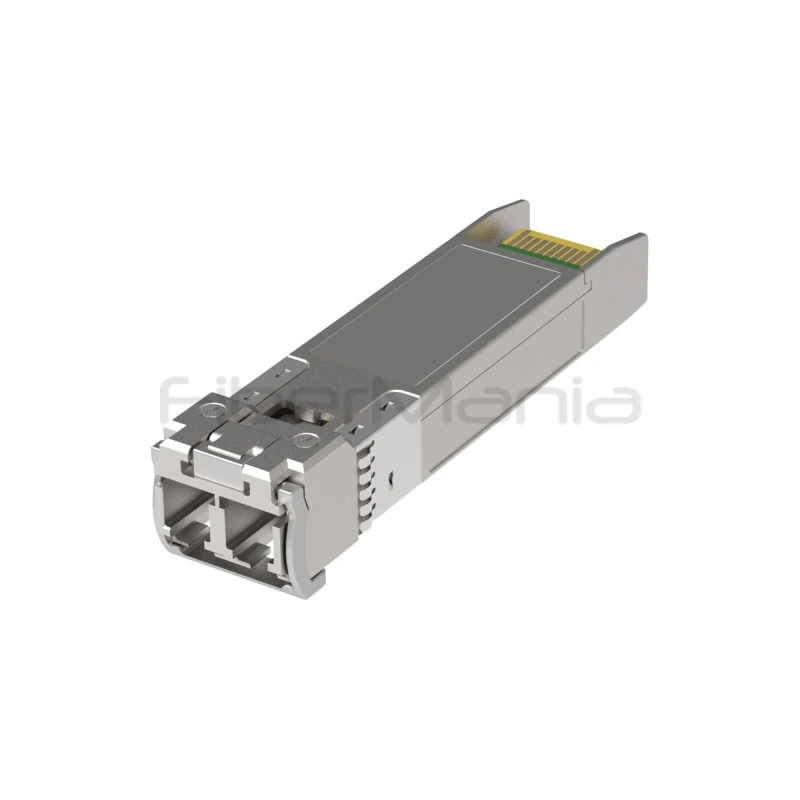

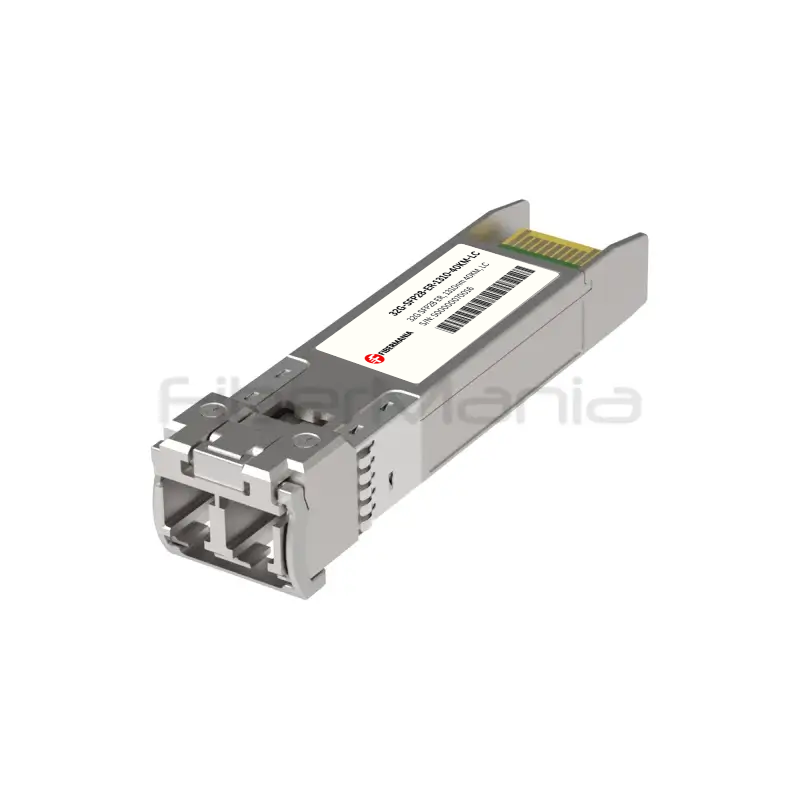

32G SFP28 ER Optical Transceiver, 1310nm, 40KM, Single-Mode Fiber, LC
Categories:
Product Highlights:
-
32G SFP28 ER optical transceiver operating at 1310nm over single-mode fiber
-
Supports data rates up to 32Gbps with long-reach transmission up to 40km
-
Hot-pluggable SFP28 form factor with duplex LC interface
-
FiberMania provides OEM, ODM, and private-label services with flexible customization and stable mass production capabilities
Table of Contents
Description
The 32G SFP28 ER 1310nm 40KM optical transceiver is an extended-reach, high-performance module designed for long-distance optical transmission in demanding network environments. Operating at a wavelength of 1310nm over standard single-mode fiber, it supports data rates of up to 32Gbps and is optimized for 32G Fibre Channel and high-speed data transport applications requiring extended connectivity.
With a transmission reach of up to 40 kilometers, this transceiver provides a reliable solution for metro network extensions, campus backbones, and distributed data center interconnects. Its high optical power budget and enhanced receiver sensitivity enable stable signal performance over long fiber spans, even in complex or high-attenuation link conditions.
Built in a hot-pluggable SFP28 form factor with a duplex LC optical interface, the module integrates seamlessly into existing network equipment. Featuring an all-metal housing for improved EMI shielding and support for wide operating temperature ranges, it is engineered for continuous, reliable operation in challenging operational environments where performance stability and scalability are critical.
Specification
| Form Factor | SFP28 |
|---|---|
| Data Rate | Up to 32Gbps |
| Supported Bit Rate | Up to 28.05Gbps |
| Wavelength | 1310nm |
| Transmission Distance | Up to 40km |
| Fiber Type | Single-Mode Fiber (9/125µm) |
| Connector | Duplex LC |
| Transmitter | DFB Laser |
| Receiver | APD |
| Diagnostic Function | Digital Diagnostic Monitoring (SFF-8472) |
| Power Supply | Single +3.3V |
| Housing | All-metal |
| Laser Safety | Class 1 |
| Operating Temperature | 0~70°C (Commercial), -10~80°C (Extended), -40~85°C (Industrial) |
| Compliance | SFP28 MSA, SFF-8472, RoHS |
Features
-
Supports data rates up to 32Gbps
-
1310nm DFB laser transmitter
-
High-sensitivity APD receiver
-
Transmission distance up to 40km over single-mode fiber
-
Hot-pluggable SFP28 form factor
-
Duplex LC optical interface
-
Digital Diagnostic Monitoring compliant with SFF-8472
-
High optical power budget for extended reach
-
All-metal housing for superior EMI performance
-
Class 1 laser safety certified
-
Single +3.3V power supply
-
RoHS compliant and lead-free
Applications
-
Metro and regional network extensions
-
Campus and enterprise backbone networks
-
Distributed data center interconnects
-
Long-distance 32G Fibre Channel links
-
High-bandwidth optical transport systems
FAQ
What is the main advantage of ER transceivers compared to LR modules?
ER transceivers provide a significantly higher optical power budget, enabling transmission distances up to 40km compared to typical 10–25km LR modules.
What type of fiber should be used with this transceiver?
This module is designed for standard 9/125µm single-mode fiber to achieve optimal long-distance performance.
Does this transceiver support monitoring and diagnostics?
Yes, it supports Digital Diagnostic Monitoring, allowing real-time access to temperature, voltage, bias current, and optical power levels.
Is this module suitable for harsh or extended temperature environments?
Yes, it supports commercial, extended, and industrial temperature ranges, making it suitable for telecom and industrial deployments.
Can FiberMania provide customized or private-label ER transceivers?
Yes, FiberMania offers OEM, ODM, and private-label manufacturing services, including labeling, coding, firmware customization, and performance tuning.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
