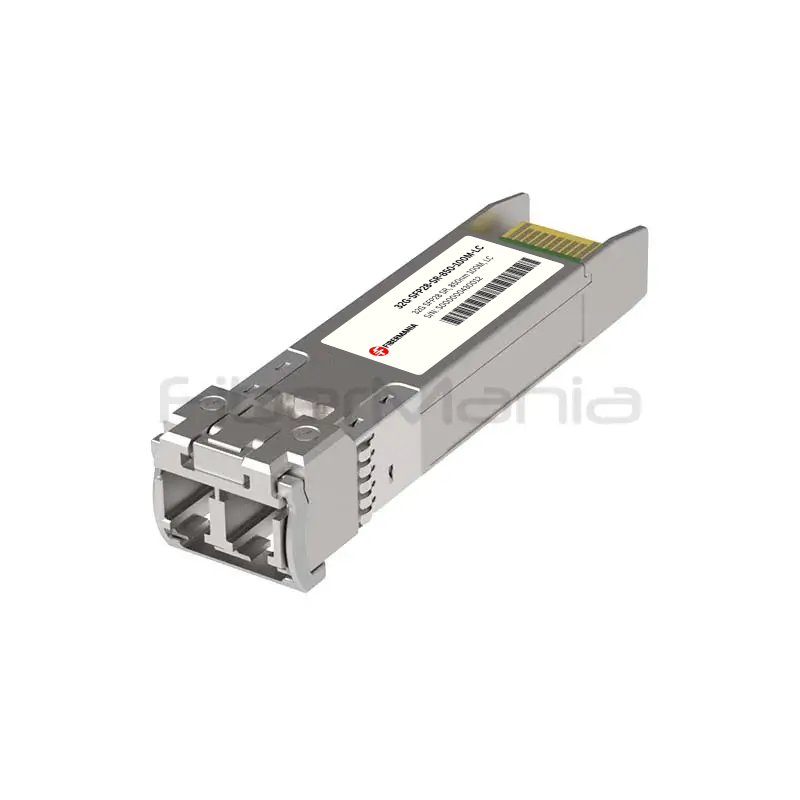

32G SFP28 SR Optical Transceiver, 850nm, 100M, Multi-Mode Fiber, LC
Categories:
Product Highlights:
-
32G SFP28 SR optical transceiver operating at 850nm over multi-mode fiber
-
Supports data rates up to 32Gbps with short-reach transmission up to 100m
-
Hot-pluggable SFP28 form factor with duplex LC interface for easy deployment
-
FiberMania offers OEM, ODM, and private-label services with stable production and flexible customization support
Table of Contents
Description
The 32G SFP28 SR 850nm optical transceiver is a high-speed, short-reach module designed for data center, enterprise, and high-performance computing environments. Operating at a nominal wavelength of 850nm over laser-optimized multi-mode fiber, it supports data rates of up to 32Gbps, making it an ideal solution for 32G Fibre Channel applications requiring low latency and high reliability.
This transceiver provides a maximum transmission distance of up to 100 meters on OM4 multi-mode fiber, while also supporting OM3 and OM2 fiber types for flexible deployment scenarios. Its short-reach design is optimized for intra-data-center connectivity, such as top-of-rack switching, server-to-switch links, and storage network connections.
Featuring a hot-pluggable SFP28 form factor and duplex LC optical interface, the module ensures seamless integration with existing network equipment. With low power consumption and stable thermal performance, it delivers consistent signal integrity in dense, high-speed network architectures. Fully compliant with industry standards, this transceiver supports scalable and cost-effective upgrades for next-generation network infrastructure.
Specification
| Form Factor | SFP28 |
|---|---|
| Data Rate | Up to 32Gbps |
| Wavelength | 850nm |
| Transmission Distance | 100m (OM4), 70m (OM3), 20m (OM2) |
| Fiber Type | Multi-Mode Fiber (OM4 / OM3 / OM2) |
| Connector | Duplex LC |
| Laser Type | VCSEL |
| Receiver Type | PIN photodiode |
| Diagnostic Function | Digital Diagnostic Monitoring |
| Power Supply | Single +3.3V |
| Power Consumption | Low |
| Operating Temperature | 0°C to +70°C |
| Compliance | SFP28 MSA, SFF-8472, RoHS |
Features
-
Supports data rates up to 32Gbps
-
850nm VCSEL laser and PIN photodiode
-
Transmission distance up to 100m over OM4 multi-mode fiber
-
Supports OM3 and OM2 multi-mode fiber
-
Hot-pluggable SFP28 form factor
-
Duplex LC optical interface
-
Real-time Digital Diagnostic Monitoring function
-
Single +3.3V power supply
-
Low power consumption
-
RoHS compliant
Applications
-
Data center short-reach optical links
-
Top-of-rack and end-of-row switching
-
Server and storage connectivity
-
32G Fibre Channel networks
-
High-performance computing clusters
FAQ
What is the maximum transmission distance of this transceiver?
The module supports up to 100 meters on OM4 fiber, 70 meters on OM3 fiber, and up to 20 meters on OM2 fiber.
Which fiber types are compatible with this transceiver?
It is designed for laser-optimized multi-mode fiber, including OM4, OM3, and OM2.
Is this transceiver compatible with standard SFP28 ports?
Yes, it complies with SFP28 MSA standards and is compatible with standard SFP28 slots supporting 32G operation.
Does this module support monitoring and diagnostics?
Yes, Digital Diagnostic Monitoring allows real-time access to key operating parameters such as temperature, voltage, and optical power.
Can FiberMania supply OEM or private-label versions of this transceiver?
Yes, FiberMania provides OEM, ODM, and private-label manufacturing services, supporting customized labeling, coding, and performance requirements.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
