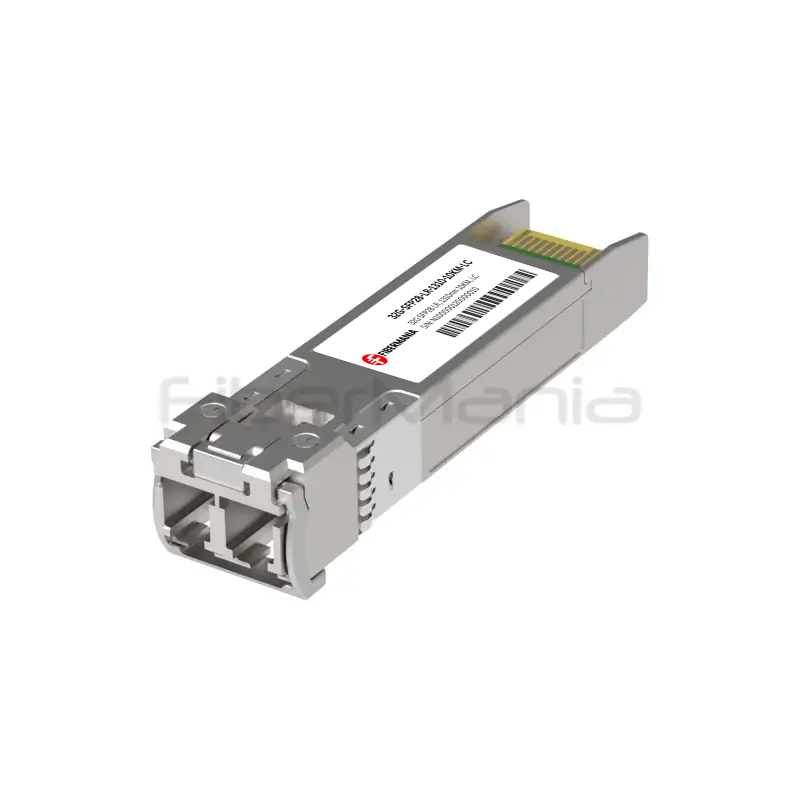

32G SFP28 LR Optical Transceiver, 1310nm, 10KM, Single-Mode Fiber, LC
Categories:
Product Highlights:
-
The 32G SFP28 LR transceiver offers high-speed 32Gbps data rates with 1310nm wavelength for long-distance transmission.
-
Ideal for up to 10km on single-mode fiber, it is perfect for data centers, enterprise backbones, and SANs.
-
Features hot-pluggable SFP28 form factor with duplex LC interface for easy integration.
-
As an OEM and ODM manufacturer, FiberMania provides custom solutions for your business needs.
Table of Contents
Description
The 32G SFP28 LR optical transceiver is engineered for high-performance, long-range data transmission, designed to meet the needs of high-speed networks. Operating at a wavelength of 1310nm over single-mode fiber (SMF), it delivers reliable connectivity for 32G Fibre Channel and Ethernet applications. This transceiver supports data rates of up to 32Gbps, offering a robust solution for environments requiring high-bandwidth, long-distance optical links.
With a transmission reach of up to 10 kilometers, the 32G SFP28 LR transceiver is perfect for applications such as data center interconnects, enterprise backbones, and storage area networks (SANs). Its hot-pluggable SFP28 form factor and duplex LC interface ensure seamless integration with existing networking equipment. Additionally, the transceiver maintains low power consumption while providing outstanding performance.
Compliant with industry standards such as SFP+ MSA and SFF-8472, the 32G SFP28 LR transceiver offers scalability for future-proof infrastructure. Its real-time Digital Diagnostic Monitoring (DDM) feature allows for continuous performance monitoring, ensuring reliable operation.
Specification
| Data Rate | 32Gbps |
|---|---|
| Wavelength | 1310nm |
| Distance | Up to 10km on SMF |
| Connector | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Laser Type | DFB (Distributed Feedback) Laser |
| Photodiode | PIN Photodiode |
| Power Supply | Single +3.3V |
| Power Consumption | Low power consumption |
| Compliance | SFP+ MSA, SFF-8472, RoHS |
| Operating Temperature | 0°C to +70°C |
| Digital Diagnostic Monitoring | Yes |
| Form Factor | Hot-pluggable SFP28 |
Features
-
Supports up to 32Gbps data rates for high-speed transmission
-
1310nm DFB laser and PIN photodiode for long-distance transmission
-
Transmission distance up to 10km over single-mode fiber (SMF)
-
Hot-pluggable SFP28 form factor with duplex LC receptacle
-
Compliant with SFP+ MSA and SFF-8472 standards
-
Compatible with RoHS and environmental regulations
-
Single +3.3V power supply for efficient operation
-
Real-time Digital Diagnostic Monitoring (DDM) for continuous performance feedback
-
Operating temperature range: 0°C to +70°C
Applications
-
High-performance data center interconnects
-
Storage area networks (SANs) for enterprise-level data storage
-
Backbone networks in large enterprise environments
-
Long-distance, high-speed optical connections for Fibre Channel and Ethernet networks
FAQ:
Q1: What is the maximum reach of the 32G SFP28 LR transceiver?
This transceiver supports a transmission distance of up to 10 kilometers on single-mode fiber.
Q2: What type of fiber is compatible with this transceiver?
The 32G SFP28 LR transceiver operates over single-mode fiber (SMF), providing reliable long-distance data transmission.
Q3: Does this transceiver support 32Gbps data rate?
Yes, it supports data rates up to 32Gbps, making it suitable for high-bandwidth applications.
Q4: How can I monitor the performance of this transceiver?
The transceiver features Real-time Digital Diagnostic Monitoring (DDM), which allows you to monitor parameters such as temperature, voltage, and optical power for optimal performance.
Q5: Can this transceiver be used for custom OEM solutions?
Yes, FiberMania offers OEM and ODM services for customized optical transceivers to meet your specific networking needs.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
